LCD |
||
Type |
23" Color TFT active matrix e-IPS LED |
|
Display Area |
20.0" horizontal x 11.2" vertical; 23" diagonal |
|
Optimum Resolution |
1920x1080 |
|
Contrast Ratio |
1000:1 static (typ), 20,000,000:1 dynamic |
|
Viewing Angles |
178º horizontal, 178º vertical @ contrast ratio > 10:1 |
|
Response Time |
6ms (GTG) |
|
Light Source |
Long life, 30,000 hrs. (typ) |
|
Brightness |
250 cd/m2 (typ) |
|
Panel Surface |
Anti-glare |
|
COMPATIBILITY |
||
PC |
VGA up to 1920x1080 non-interlaced |
|
Mac® |
Power Mac™ up to 1920x1080 |
|
REGULATIONS |
||
UL, CUL, FCC-B, CB, CE, TCO’05, TUV/GS, TUV ERGO, TUV-S, NOM, GOST-R, HYGIENIC, CCC, BSMI, PSB, CEL, KC, C-TICK, SASO, WEEE, RoHS, EPEAT-Silver, ENERGY STAR® |
||

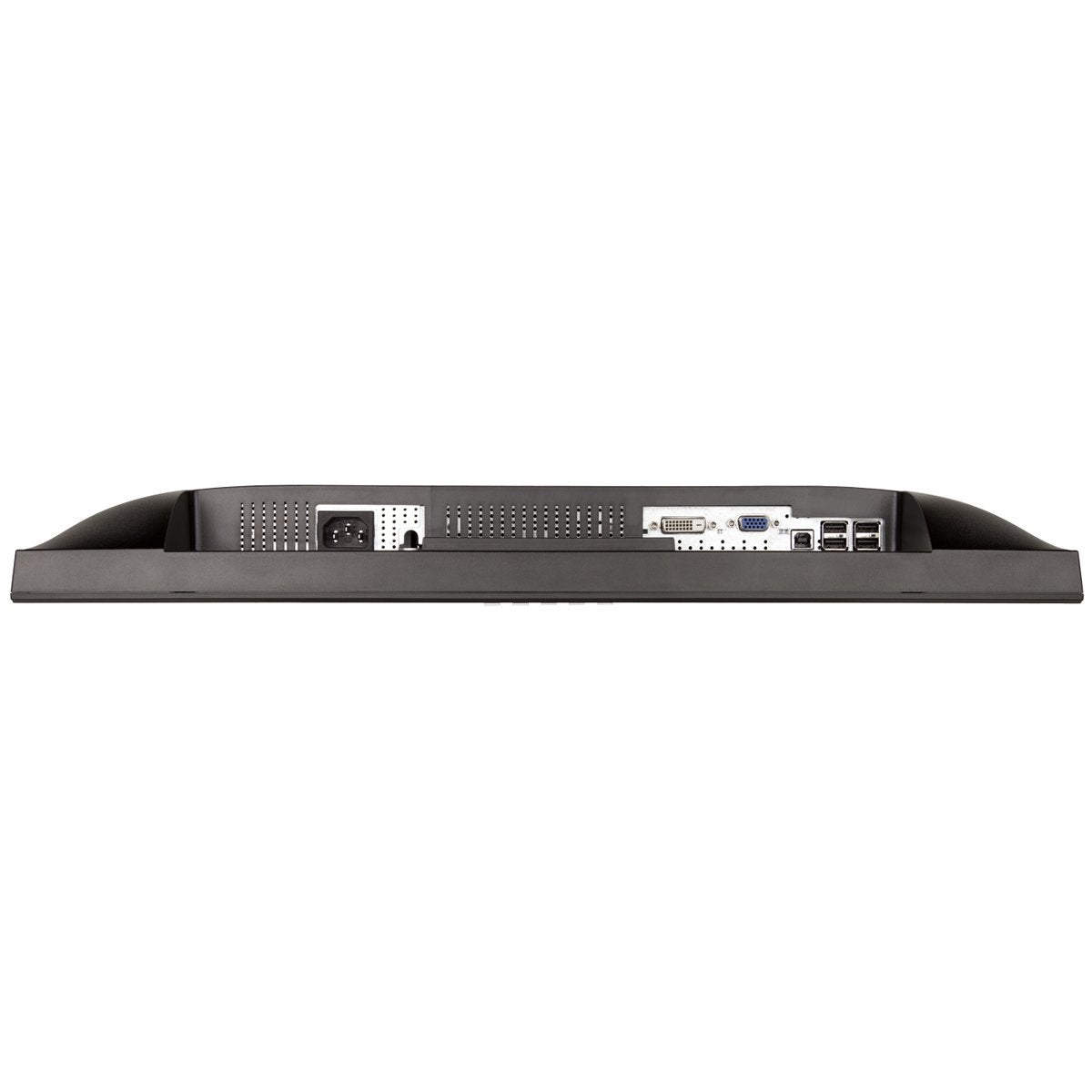

CONNECTOR |
||
Analog/Digital |
15-pin mini D-sub/DVI-D |
|
USB |
V2.0, 1-up/4-down |
|
Power |
Internal power; 3-pin AC plug (CEE22) |
|
POWER |
||
Voltage |
AC 100–240V, 50–60Hz (auto switch) |
|
Consumption |
45W (typ); 24W (Eco-mode) |
|
RECYCLE/DISPOSAL |
||
Please dispose of in accordance with local, state or federal laws. |
||
CONTROLS |
||
Basic |
Power, 2, up, down, 1 |
|
OnView® |
Auto image adjust, contrast, brightness, input select (D-SUB, DVI), color adjust (sRGB, 9300K, 7500K, 6500K, 5000K, User color [R, G, B]), information, manual image adjust (H/V position, horizontal size, fine tune, sharpness, dynamic contrast, aspect ratio, eco mode), setup menu (language select, resolution notice, OSD position, OSD time out, OSD background) memory recall |
|
PACKAGE CONTENTS |
||
LCD display, power cable, VGA cable, DVI cable, USB cable, Quick Start Guide, ViewSonic Wizard CD |
||
OPERATING CONDITIONS |
||
Temperature |
32-104ºF (0-40ºC) |
|
Humidity |
32–104ºF (0–40ºC) |
|
WARRANTY |
||
1 year company provided |
||
VIDEO INPUT |
||
Analog/Digital |
RGB analog (75 ohms, 0.7/1.0 Vp-p) / DVI (HDCP) |
|
Frequency |
Fh: 22~82kHz, Fv: 50~75Hz |
|
Sync |
H/V separated (TTL), composite, sync-on-green |
|
DIMENSIONS (WxHxD) |
||
Physical With Stand |
21.6" x 17.0" x 9.8" (548mm x 433mm x 250mm) |
|
Physical Without Stand |
21.6" x 12.8" x 2.6" (548mm x 326mm x 64mm) |
|
Packaging |
24.6" x 20.7" x 11.9" (624.8mm x 525.8mm x 302.3mm) |
|
WEIGHT |
||
Net With Stand |
11.9 lb. (5.4 kg) |
|
Net Without Stand |
7.3 lb. (3.3 kg) |
|
Gross With Stand |
17.4 lb. (8.0 kg) |
