Features
What This Product Does

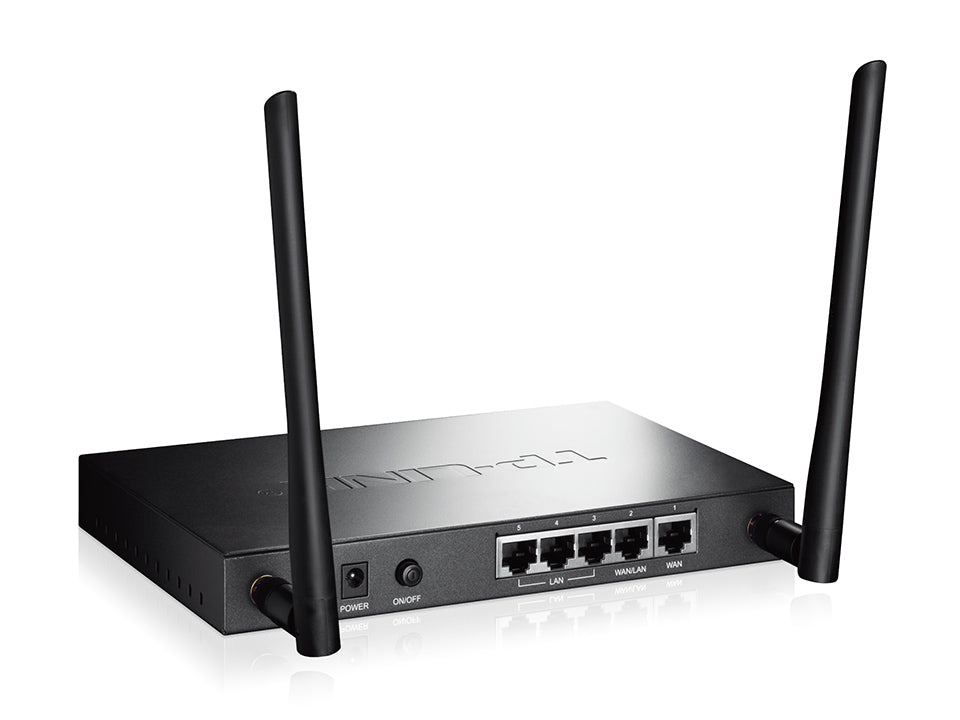

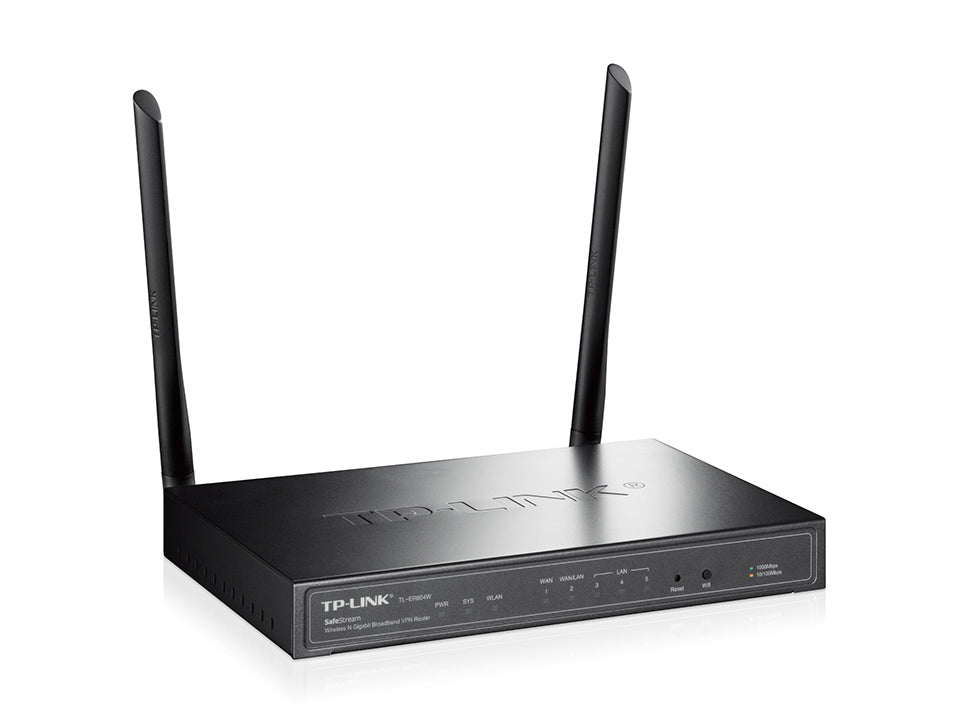

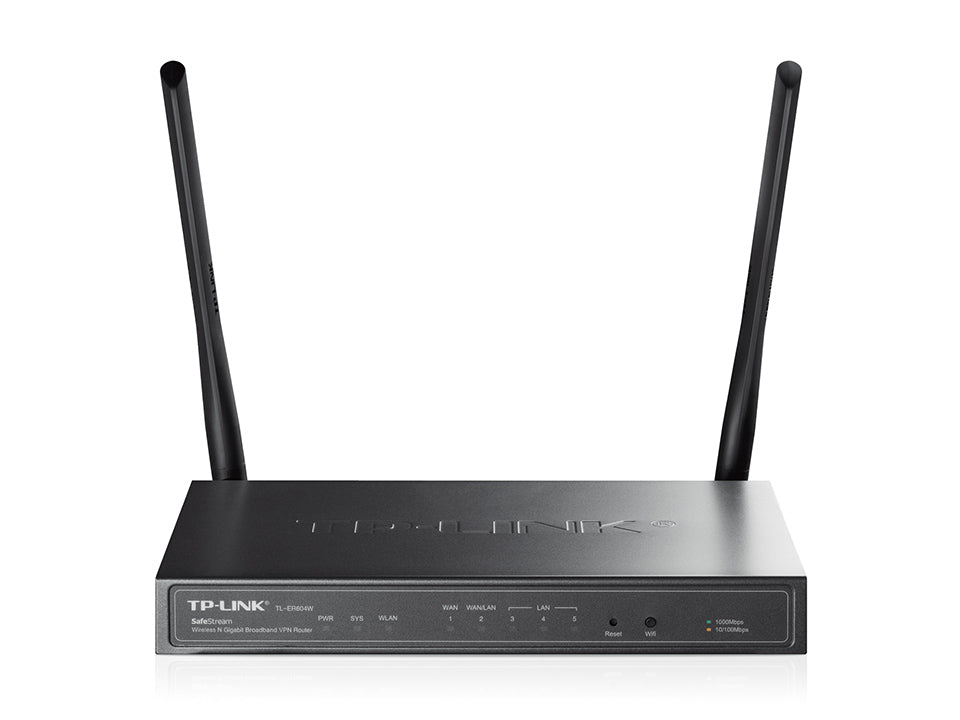

TL-ER604W SafeStream Wireless N Gigabit Broadband VPN Router supports wireless N speed and gigabit wired speeds on all ports. It integrates multiple VPN protocols, high-security and high-performance VPN capabilities, making it an ideal choice for branch offices in need of cost-effective secure remote connections to headquarters or remote offices. Furthermore, together with its various useful features including hardware-based Wi-Fi On/Off button, Guest Networking, App Control, and PPPoE Server functions, TL-ER604W is an ideal network solution for home or small office consumers.
High VPN Performance
The TL-ER604W supports multiple VPN protocols including IPsec, PPTP and L2TP in Client/Server mode while also being able to handle pass-through traffic. It features a built-in hardware-based VPN engine allowing the router to support and manage up to 30 LAN-to-LAN/Client-to-LAN IPsec VPN connections. Advanced VPN features include: DES/3DES/AES128/AES192/AES256 encryption, MD5/SHA1 authentication, Manual/IKE key management, and Main/Aggressive negotiation modes.
Intelligent High-speed Connectivity
With 300Mbps 802.11n wireless and 5 Gigabit ports, the TL-ER604W is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming.
Abundant Security Features
For defense against external threats, TL-ER604W features automatic protection to detect and block Denial of service (DoS) attacks such as TCP/UDP/ICMP Flooding, TCP Scanning, Ping of Death and other related threats. For better management of the internal network, TL-ER604W allows administrators to set rules to block specific web sites and IM/P2P applications with just one-click, and restrict staff to using specific services such as FTP, HTTP and SMTP.
Segmented Wireless Networking for Convenience and Security
TL-ER604W supports multi-SSID and guest network features.With up to 8 SSIDs, TL-ER604W can provide several distinct wireless networks for different department or user groups.Guest Network offers secure separate wireless networks for your customers and business partners for Internet access, without providing access to the internal network and potentially sensitive company information.
Safety Minded Enterprise Investments
Professional lightning protection technology is designed to prevent electrical surges from penetrating the interior of the electrical equipment and is discharged harmlessly into the Earth. This router is designed to prevent lightning damage up to 4KV in well-grounded connection conditions.This feature ensures that networking infrastructure investments remain as safe as possible from Mother Nature’s wrath.
Specifications
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.11b/g/n, 802.3, 802.3u, 802.3ab TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP, SSL, HTTPS |

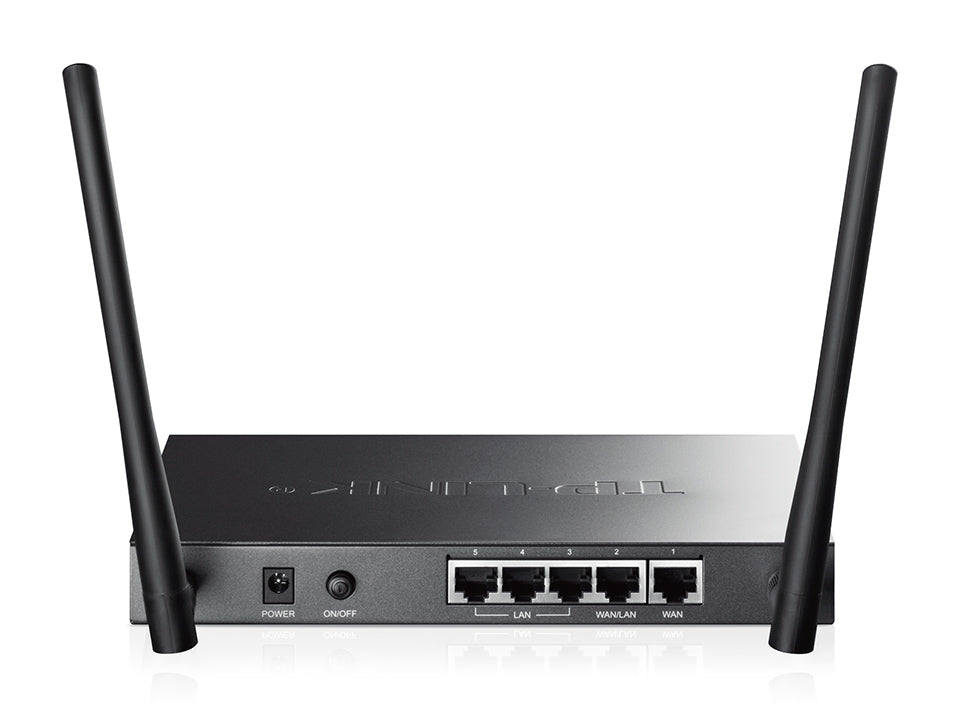

Interface | 1 Gigabit WAN port 3 Gigabit LAN ports 1 Gigabit WAN/LAN port |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) 1000BASE-T: UTP category 5, 5e cable (Max 100m) |
Flash | 8MB |
DRAM | 64MB (DDRII) |
LED | PWR, SYS, WLAN, WAN, WAN/LAN, LAN |
Button | Power On/Off, Wi-Fi On/Off, Reset |
Fan Quantity | Fanless |
Dimensions (W X D X H) | 8.2 x 5.0 x 1.0 in.(209 x 126 x 26 mm) |
Antenna | 2 detachable 5dBi antennas |
Power Supply | External Power Adapter (output: 12VDC/1.0A) |
PERFORMANCE | |
---|---|
Concurrent Session | 10000 |
NAT Throughput | 160Mbps |
IPsec VPN Throughput | 38Mbps |
WIRELESS FEATURES | |
---|---|
Frequency | 2.4-2.4835 GHz |
Transmit Power | <20dBm (EIRP) |
Wireless Functions | Enable/Disable wireless radio, WDS bridge, WMM, Wireless statistics |
Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Guest Network | Yes |
Multi-SSID | Up to 8 SSIDs |
BASIC FUNCTIONS | |
---|---|
DHCP | DHCP Server/Client DHCP Reservation |
Switch Setting | Port Mirror Rate Control Port Configuration Port VLAN |
WAN Connection Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual Access, BigPond |
MAC Clone | Modify WAN/LAN MAC Address |
IPTV | IGMP Proxy IGMP Snooping |
ADVANCED FUNCTIONS | |
---|---|
Load Balance | Intelligent Load Balance Policy Routing Protocol Binding Link Backup (Timing, Failover) Online Detection |
NAT | One-to-One NAT Multi-nets NAT Virtual Server Port Triggering UPnP FTP/H.323/SIP/IPsec/PPTP ALG |
Routing | Static Routing Dynamic Routing (RIP v1/v2) |
System Mode | NAT, Non-NAT, Classical Routing |
Traffic Control | IP/Port-based Bandwidth Control Guarantee & Limited Bandwidth Time-scheduled Policy IP-based Session Limit |
VPN | |
---|---|
L2TP VPN | 8 L2TP VPN Tunnels L2TP VPNServer/Client L2TP over IPsec NetBIOS passthrough |
VPN Pass-through | IPsec (ESP), PPTP, L2TP |
IPsec VPN | 30 IPsec VPN Tunnels LAN-to-LAN and Client-to-LAN IPsec VPN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode IPsec NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
PPTP VPN | 8 PPTP VPN Tunnels PPTP VPN Server/Client PPTP with MPPE Encryption NetBIOS passthrough |
SECURITY | |
---|---|
ARP Inspection | Sending GARP Packets ARP Scanning by WAN/LAN IP-MAC Binding |
Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN CSRF Defense |
Application Control | IM, P2P, Web IM, Web SNS, Web Media Protocol/Proxy Blocking |
Filtering | MAC Filtering URL/Keywords Filtering Web Content Filtering (Java, ActiveX, Cookies) Local Access Control |
MANAGEMENT | |
---|---|
Service | PPPoE Server E-Bulletin Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
Maintenance | Web-based Management Interface Remote Management Export & Import Configuration NTP Synchronize Syslog Support SNMP IP NAT Table |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | SafeStream Wireless N Gigabit Broadband VPN Router TL-ER604W Power Adapter RJ45 Ethernet Cable Quick Installation Guide Resource CD |
System Requirements | Microsoft® Windows® 8/7/Vista/XP/2000, MAC® OS, Linux-based operating System |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Warranty
18 months local warranty
