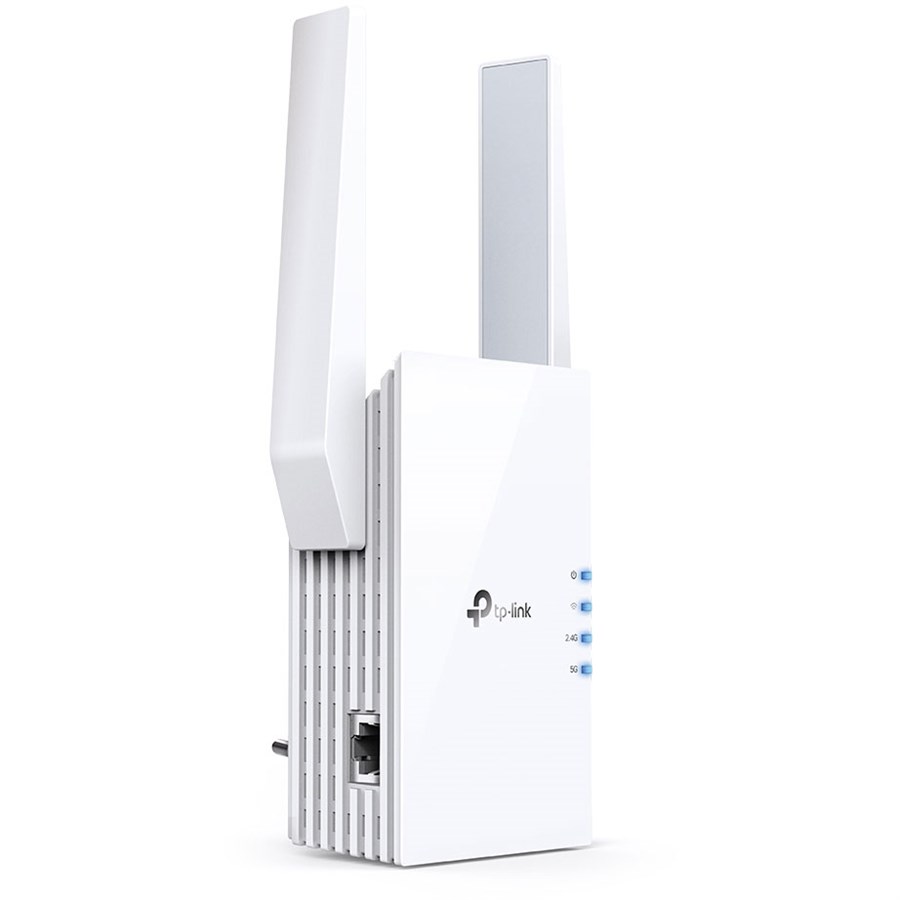

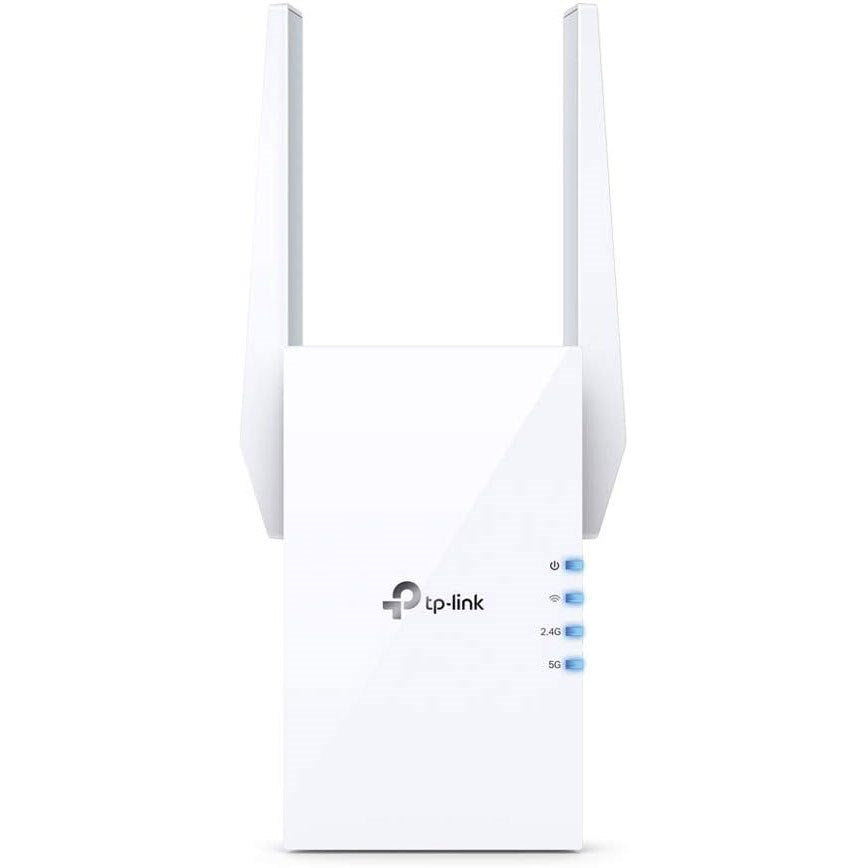

TP-Link RE505X AX1500 WiFi Range Extender

RE505X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.

Creates a Mesh network by connecting to a TP-Link OneMesh™ router for seamless whole-home coverage.

Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles

Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement

AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability

TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device

Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point

WIRELESS

Working Modes Range Extender/Access Point

HARDWARE FEATURES

Ports 1 Gigabit Ethernet Port

Button WPS Button, Reset Button

Input Power 100-240V~50/60Hz

Power Consumption 10W

Dimensions ( W x D x H ) 2.9×1.8×4.9 in. (74.0×46×124.8 mm)

Antenna 2 External Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency 2.4GHz and 5GHz

Signal Rate 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz

Working Modes Range Extender/Access Point

Reception Sensitivity 5GHz:

11a 6Mbps: -93dBm,

11a 54Mbps: -75dBm

11ac HT20 MCS0: -92dBm,

11ac HT20 MCS8: -70dBm

11ac HT40 MCS0: -90dBm,

11ac HT40 MCS9: -66dBm

11ac HT80 MCS0: -87dBm,

11ac HT80 MCS9: -62dBm

2.4GHz:

11g 54Mbps: -77dBm,

11n HT20 MCS7: -75dBm

11n HT40 MCS7: -72dBm

Wireless Functions Enable/Disable Wireless Radio

DFS (the latest firmware and hardware version is required)

Access Control

LED Control

Power Schedule

Wi-Fi Coverage

Wireless Security 64/128-bit WEP, WPA/WPA2-PSK encryptions

Transmission Power CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm

OTHERS

Certification FCC, RoHS

Package Contents Wi-Fi Range Extender RE505X

Quick Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
