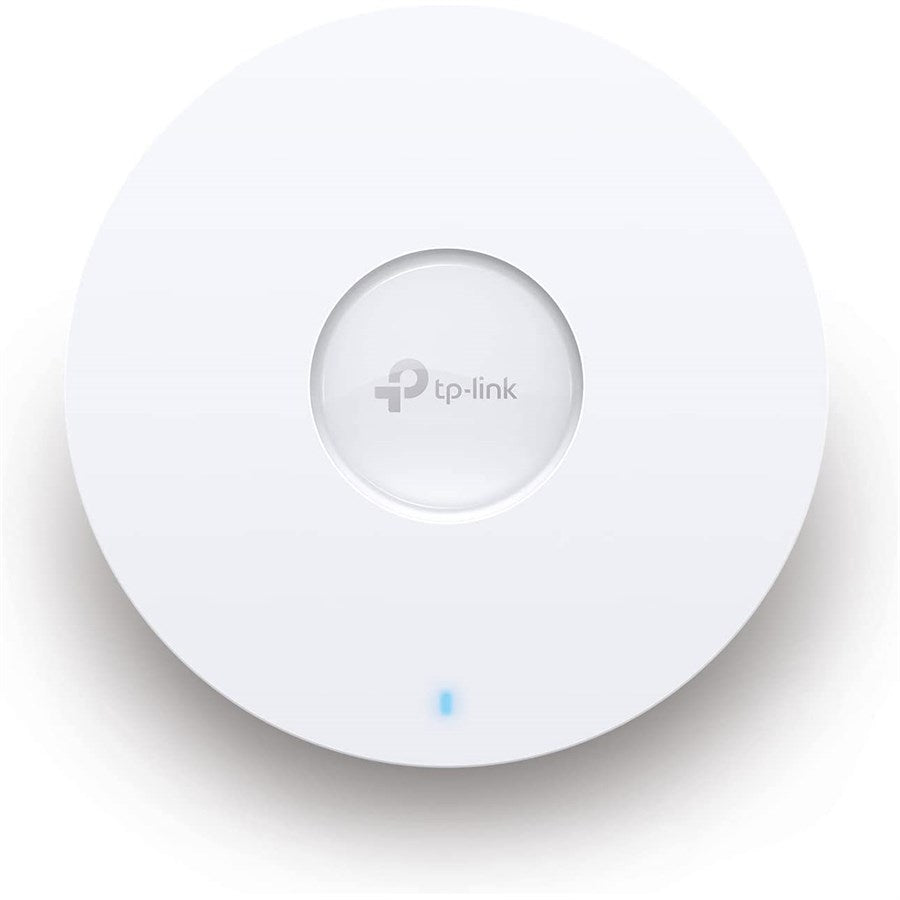

TP-Link EAP650 AX3000 Ceiling Mount WiFi 6 Access Point

Buy TP-Link EAP650 AX3000 Ceiling Mount WiFi 6 Access Point online at Rs. 33990. Buy complete range of Wireless Access Points on Vmart.pk. We Offer home delivery all over Pakistan.

Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.

High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.

160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.

Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.

Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.

PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.

Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button Reset

Power Supply • 802.3at PoE

• 12 V / 1.0 A DC (EU), 12 V / 1.5 A DC (US)

Power Consumption • EU: 13.5 W

• US: 14.7 W

Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)

Antenna Type Internal Omni

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 5 dBi

Mounting • Ceiling /Wall Mounting (Kits included)

• Junction Box Mounting

Wireless Standards IEEE 802.11ax/ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate • 5 GHz: Up to 2402 Mbps

• 2.4 GHz: Up to 574 Mbps

Wireless Functions • 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• HE160 (160 MHz Bandwidth)‡

• Seamless Roaming §

• Omada Mesh§

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power • CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, Band1 & Band2, EIRP)

<30 dBm(5 GHz, Band3, EIRP)

• FCC:

<25 dBm (2.4 GHz)

<25 dBm (5 GHz)

Omada App Yes

Centralized Management • Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller

Cloud Access Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

Certification CE, FCC, RoHS

Package Contents • EAP650

• Power Adapter

• Ceiling/Wall Mounting Kits

• Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
