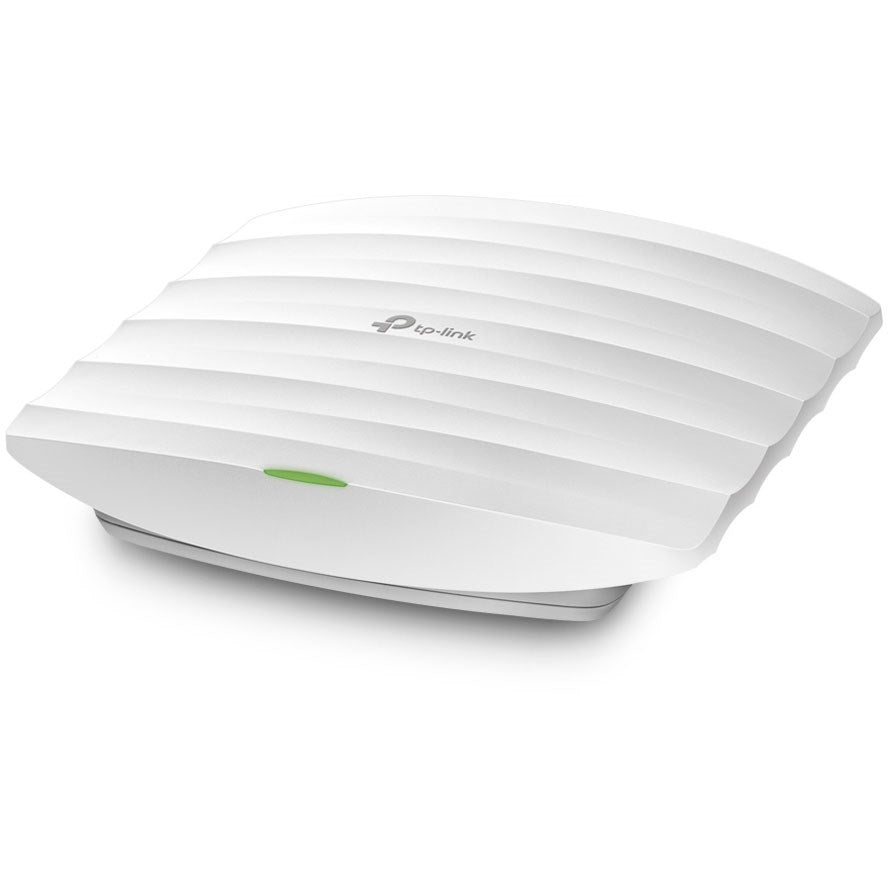

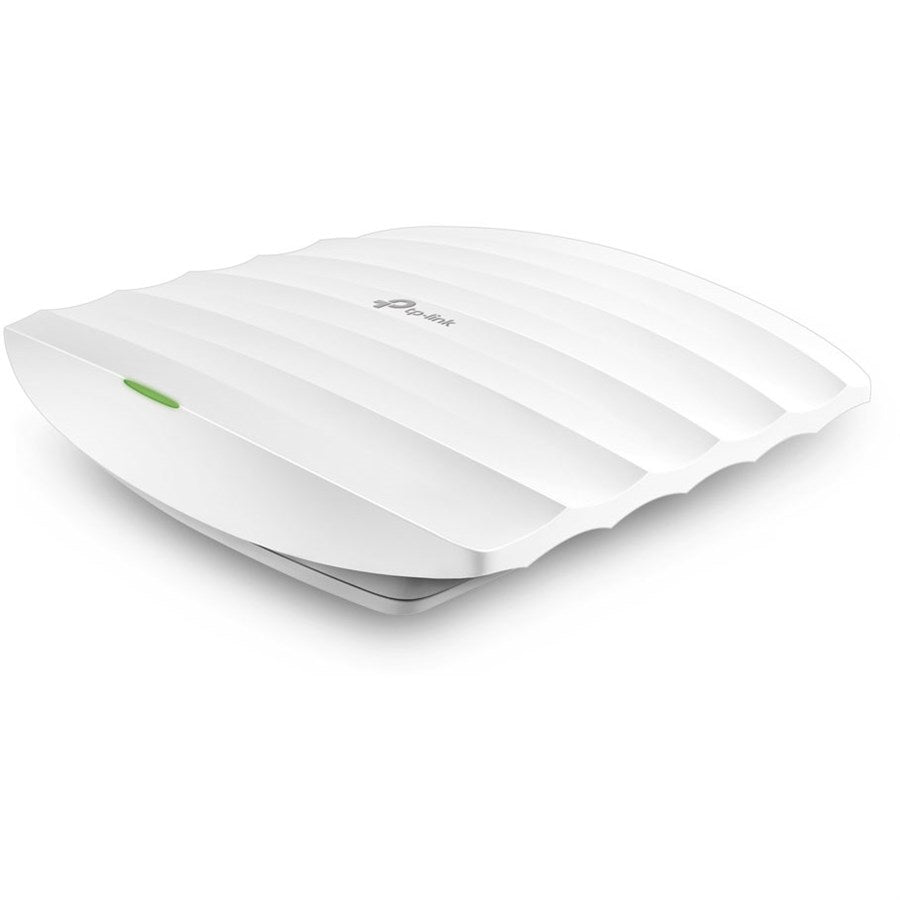

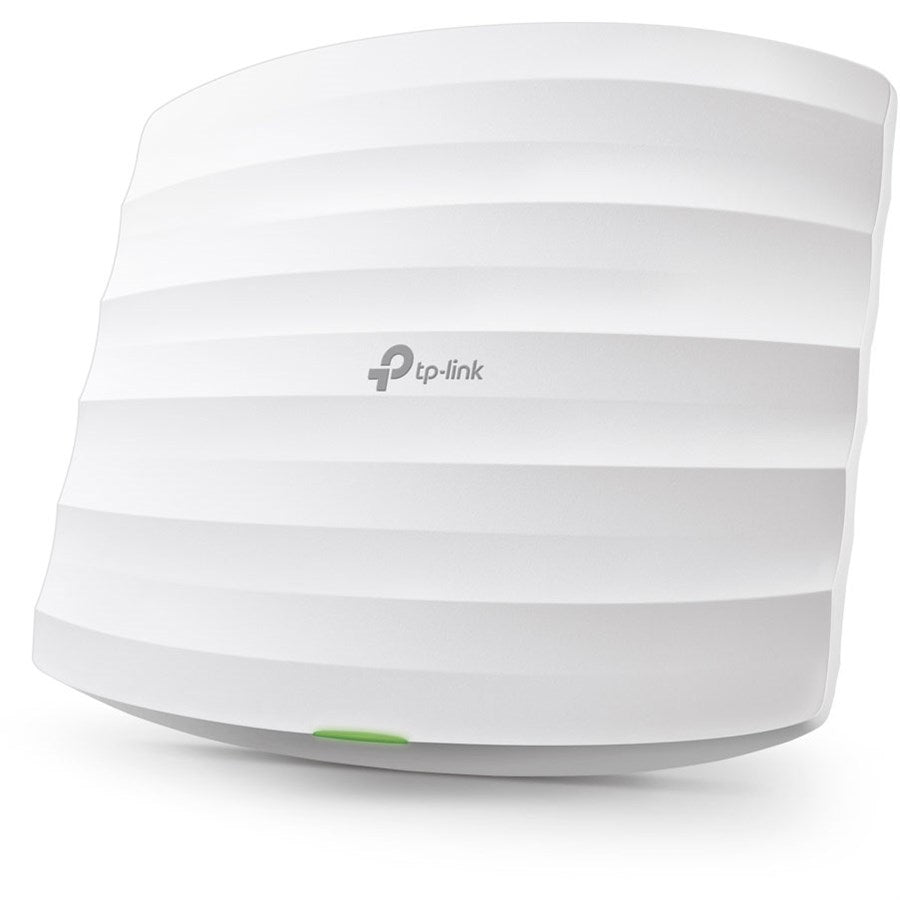

TP-Link EAP225 AC1350 Wireless MU MIMO Gigabit Ceiling Mount Access Point

Buy TP-Link EAP225 AC1350 Wireless MU MIMO Gigabit Ceiling Mount Access Point online at Rs. 21490. Buy complete range of Wireless Access Points on Vmart.pk. We Offer home delivery all over Pakistan.

Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz△ and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.

PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included)△ for flexible installations.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

HARDWARE FEATURES

Interface Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)

Physical Security Lock Yes

Button Reset

Power Supply • 802.3af/at PoE

• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption • EU: 10.5 W

• US: 12.6 W

Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

Antenna Type 3 Internal Omni

• 2.4 GHz: 4 dBi

• 5 GHz: 5 dBi

Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate • 5 GHz:Up to 867 Mbps

• 2.4 GHz:Up to 450 Mbps

Wireless Functions • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Seamless Roaming*

• Omada Mesh*

• Band Steering

• Load Balance

• MU-MIMO

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication*

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

Transmission Power • CE:

≤20 dBm(2.4 GHz, EIRP)

≤23 dBm(5 GHz, EIRP)

• FCC:

≤24 dBm(2.4 GHz)

≤22 dBm(5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1,v2c

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)

OTHERS

Certification CE, FCC, RoHS

Package Contents • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225

• Passive PoE Adapter

• Power Cord

• Mounting Kits

• Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
