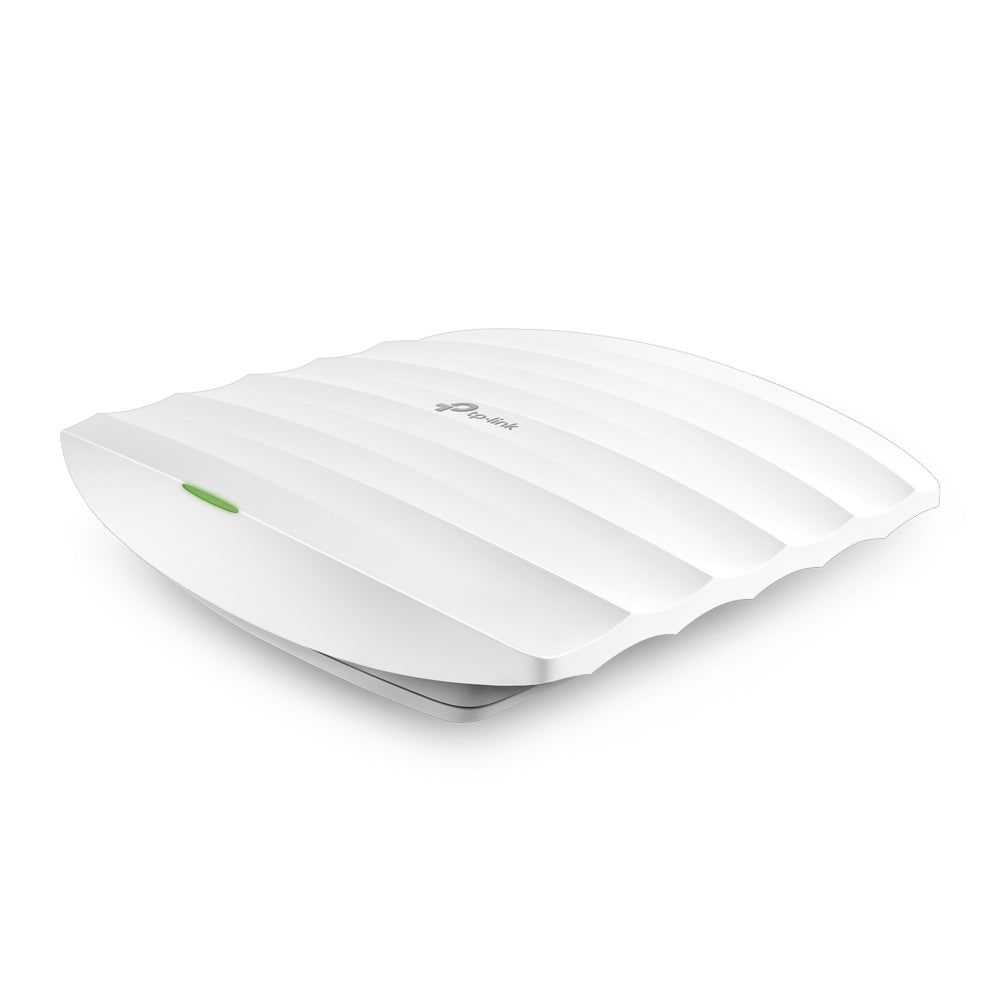

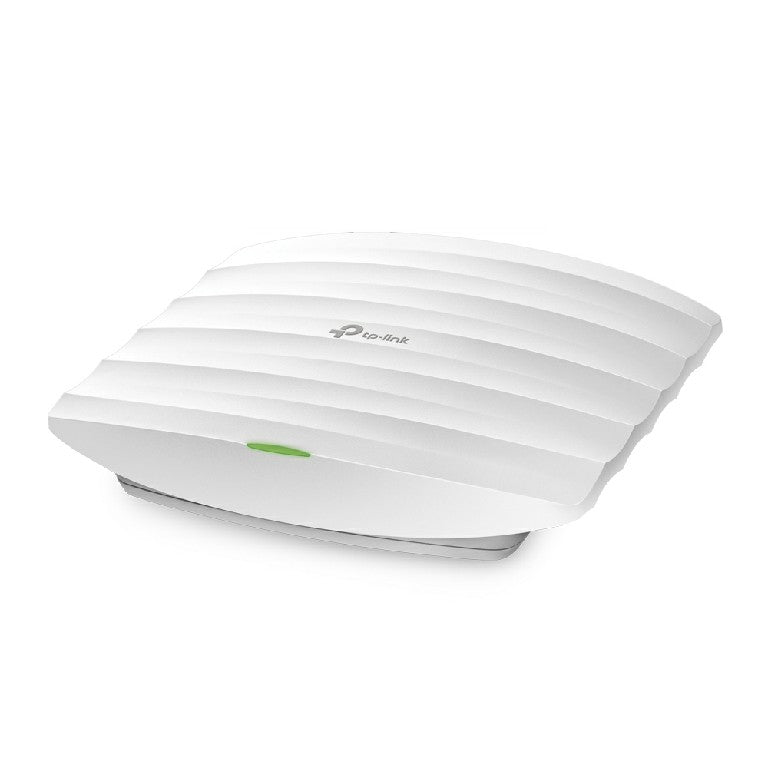

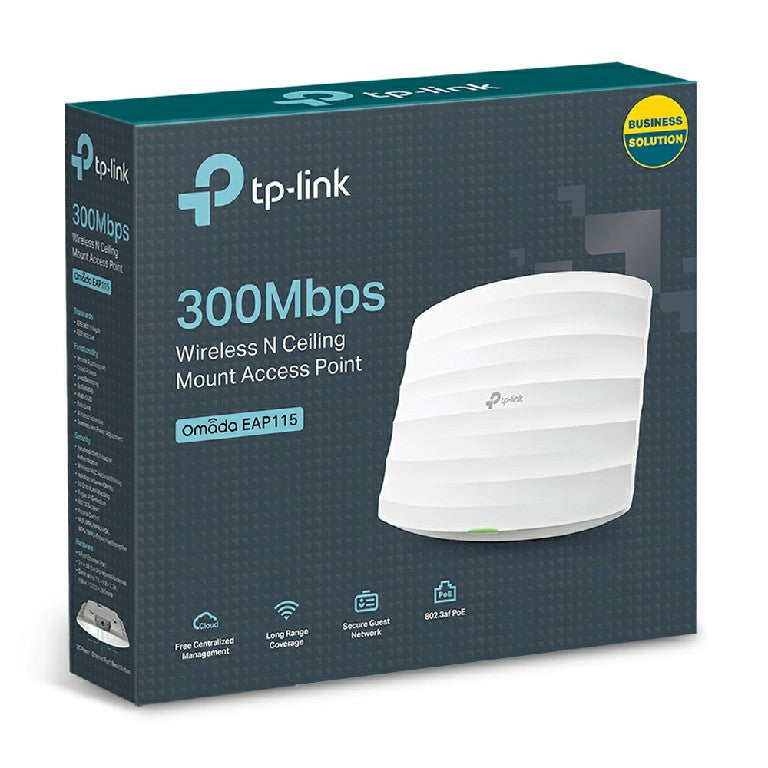

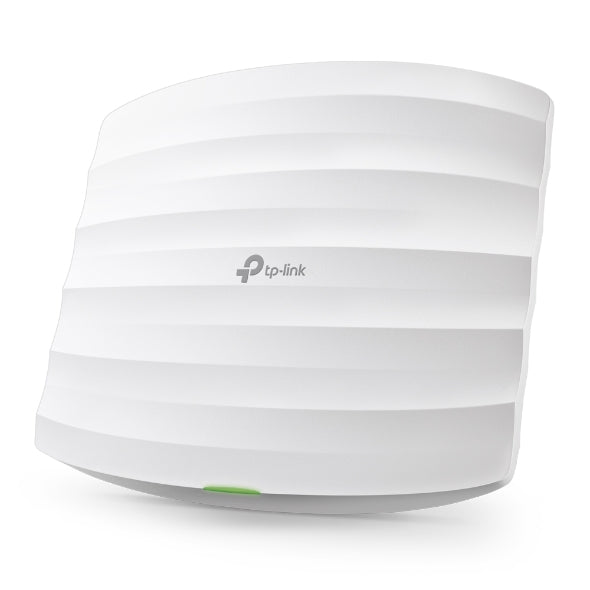

TP-Link EAP115 300Mbps Wireless N Ceiling Mount Access Point

Buy TP-Link EAP115 300Mbps Wireless N Ceiling Mount Access Point online at Rs. 9990. Buy complete range of Wireless Access Points on Vmart.pk, We Offer home delivery all over Pakistan.

Free Cloud Centralized Management - Anytime, Anywhere

Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Guest Network With Facebook And SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Timesaving And Flexible Deployment

The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.

Easy Management With The Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications Hardware Specs Interface

• Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）

Button

• Reset

Power Supply

• PoE or external 9VDC/0.6A power supply

Power Consumption

• 2.8W

Dimensions

• 7.5×6.8×1.2 in. (189.4×172.3×29.5mm)

Antenna Type

• Internal 2* 4dBi Omni

Mounting

• Ceiling /Wall Mounting (Kits included)

Wireless Specs Wireless Standards

• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

• 2.4-2.4835GHz

Signal Rate 11n:

• Up to 300Mbps(dynamic)

11g:

• Up to 54Mbps(dynamic)

11b:

• Up to 11Mbps(dynamic)

Reception Sensitivity 300M:

• -71dBm@10% PER

150M:

• -75dBm@10% PER

54M:

• -78dBm@10% PER

11M:

• -93dBm@8% PER

6M:

• -92dBm@10% PER

1M:

• -96dBm@8% PER

Wireless Functions

• Multiple SSIDs （Up to 8 SSIDs）
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control （Adjust Transmit Power on dBm）
• QoS(WMM)
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

Transmission Power CE:

• ≤19dBm

FCC:

• ≤26dBm

MANAGEMENT Omada Cloud Access

• Yes

Omada App

• Yes

Omada Cloud Controller

• Yes

Omada Controller Software

• Yes

Email Alerts

• Yes

LED ON/OFF Control

• Yes

Management MAC Access Control

• Yes

SNMP

• v1,v2c

System Logging Local/Remote Syslog

• Local/Remote Syslog

Telnet

• Yes

SSH

• Yes

Web-based Management

• HTTP/HTTPS

Management VLAN

• Yes

OTHERS Certification

• CE, FCC, RoHS

Package Contents

• 300Mbps Wireless N Ceiling Mount Access Point EAP115
• Power Adapter
• Mounting Kits,
• Installation Guide

System Requirements

• Microsoft Windows 10/8/7/Vista/XP

Environment Operating Temperature:

• 0℃~40℃ (32℉~104℉)

Storage Temperature:

• -40℃~70℃ (-40℉~158℉)

Operating Humidity:

• 10%~90% non-condensing

Storage Humidity:

• 5%~90% non-condensing
