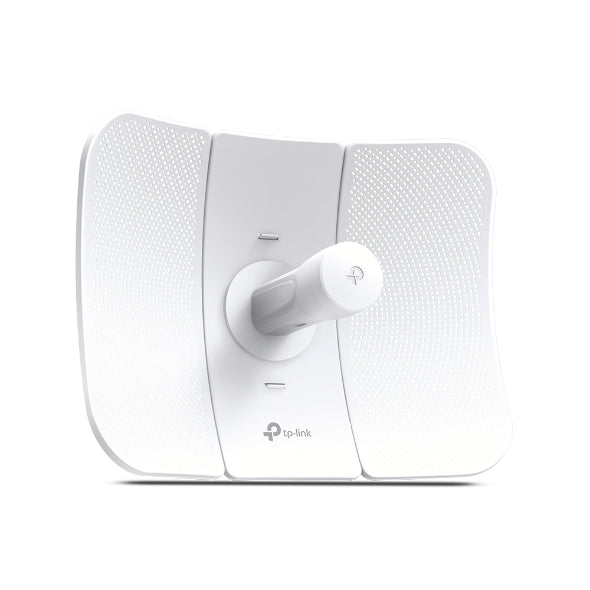

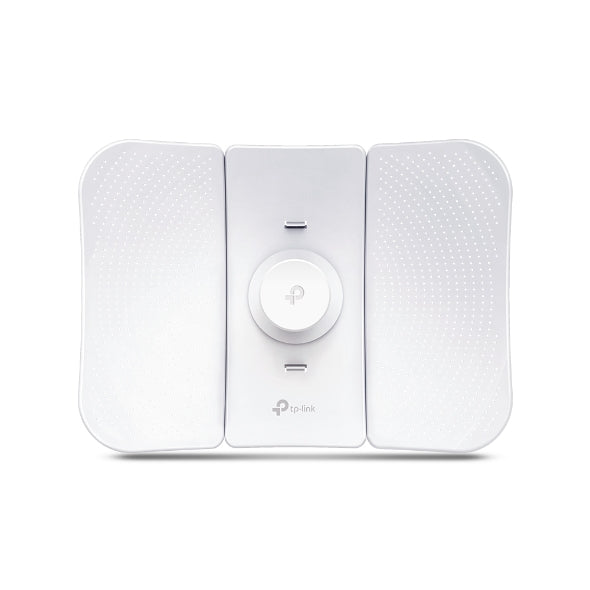

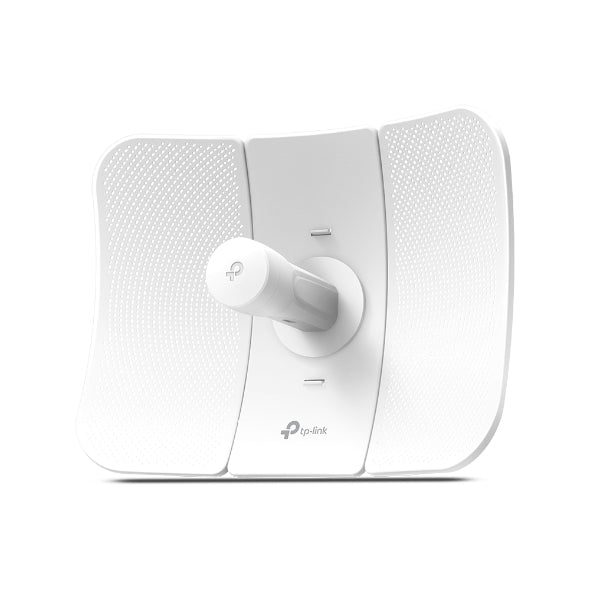

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

Buy TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE online at Rs. 23990. Buy complete range of Wireless Access Points on Vmart.pk, We Offer home delivery all over Pakistan.

• 802.11ac for up to 867Mbps on 5GHz wireless data rate

• 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application

• Excellent beam directivity, improved latency and noise cancellation

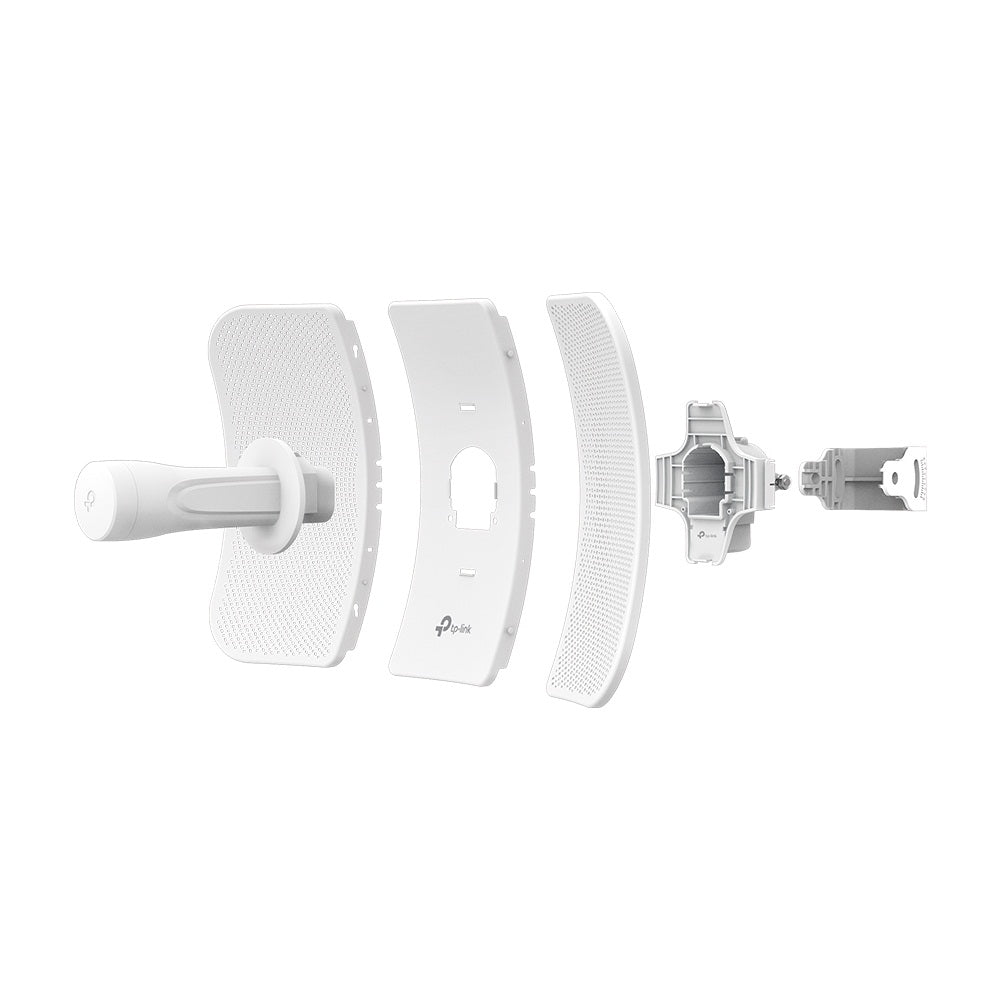

• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds

• Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability

• Pharos Control gives administrators a free, centralized management system

• Passive PoE supports to allow flexible deployment and convenient installation

Qualcomm 750MHz CPU, MIPS 74Kc

128 MB DDR2 RAM, 16 MB Flash

1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)

1 Reset Button

Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)

16-27V DC

366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)

23 dBi

9° (Azimuth)/7° (Elevation)

15 KV ESD Protection

6 KV Lightning Protection

Material: Outdoor PC stabilized plastic

Weatherproof: IP65 water and dust proof design

Wireless Standards IEEE 802.11a/n/ac

Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic)

Up to 400 Mbps (40 MHz, Dynamic)

Up to 173.4 Mbps (20 MHz, Dynamic)

Frequency 5.15–5.85 GHz

Transmit Power Max. 27 dBm (Adjustable power by 1dBm)

Network Configuration WAN: Static/ Dynamic/ PPPoE

: Static/ Dynamic/ DHCP

Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger

: SPI Firewall/ Ping Forbidden/ DoS Protection

Access Control

Static Routing

Bandwidth Control

IP & MAC Binding

Wireless Configurations Selectable Channel Width: 20/40/80MHz

Auto Channel Selection

Transmit Power Control

Dynamic Frequency Selection(DFS)

WDS Enable/ Disable

: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,

SSID Broadcast Enable/ Disable

Multi-SSID with VLAN Tagging(AP Mode only)

Distance/ ACK Timeout Setting

Wireless MAC Address Filter

Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia

Long Range PtP

Management Discovery and Remote Management via Pharos Control application

HTTP/ HTTPS Web-based management

System log

SNMP Agent(v2c)

Ping Watch Dog

Dynamic DDNS

SSH Server

System Tools Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory

: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP

Spectrum Analyzer

Speed Test

Ping

Traceroute

Antenna Alignment

System-level Optimizations Optimized IGMP Snooping / Proxy for multicast applications

Dimensions(W x D x H) 85.8×43.9×29.7 mm

Interfaces 1 AC Jack with Earth Ground

1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)

1× 10/100/1000 Mbps Shielded Ethernet Port (Data)

Button Remote Reset Button

Power Status LEDs Green

Input 100-240VAC, 50/60Hz

Output 24VDC, 0.6A Max

+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency >84.29%

Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Certification CE, FCC, RoHS, IP65, IC

Package Contents Outdoor Wireless CPE

24V 0.5A Passive PoE Adapter

Pole Mounting Kits

AC Power Cord

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment Operating Temperature: -40℃~70℃ (-40℉~158℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing
