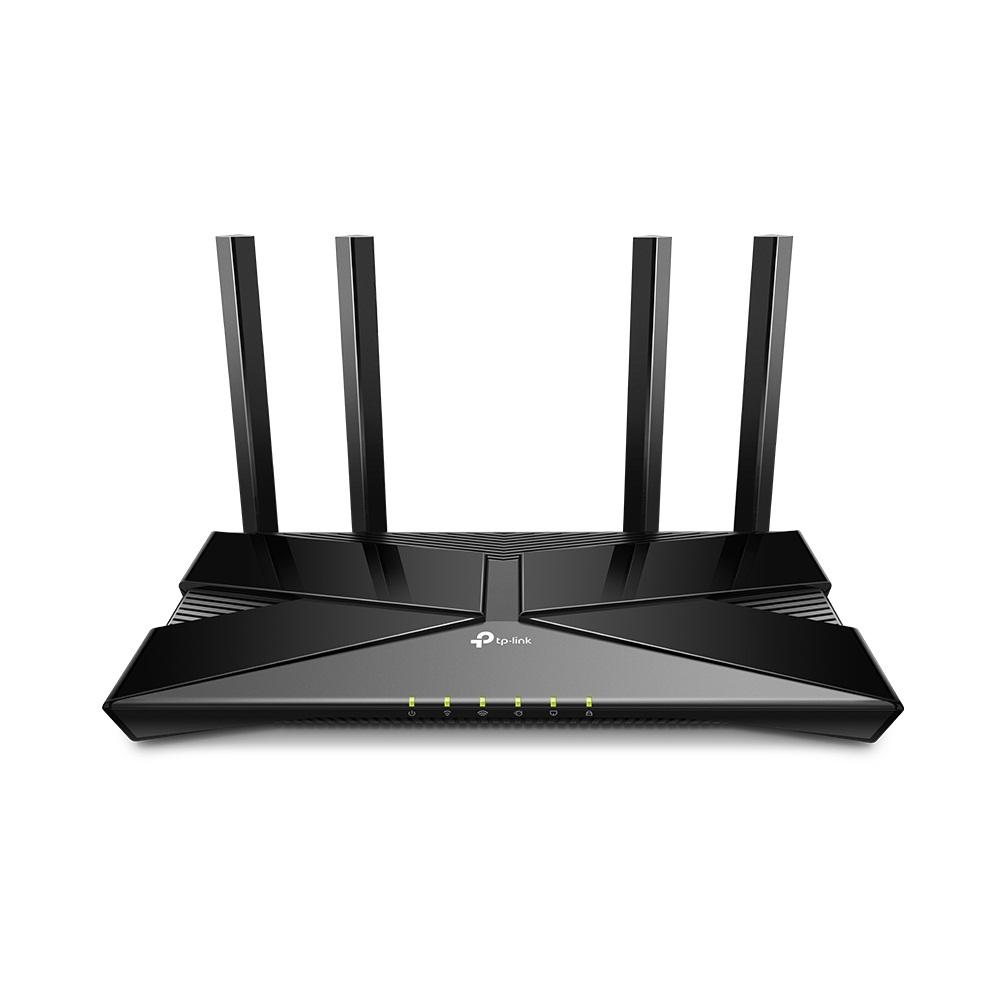

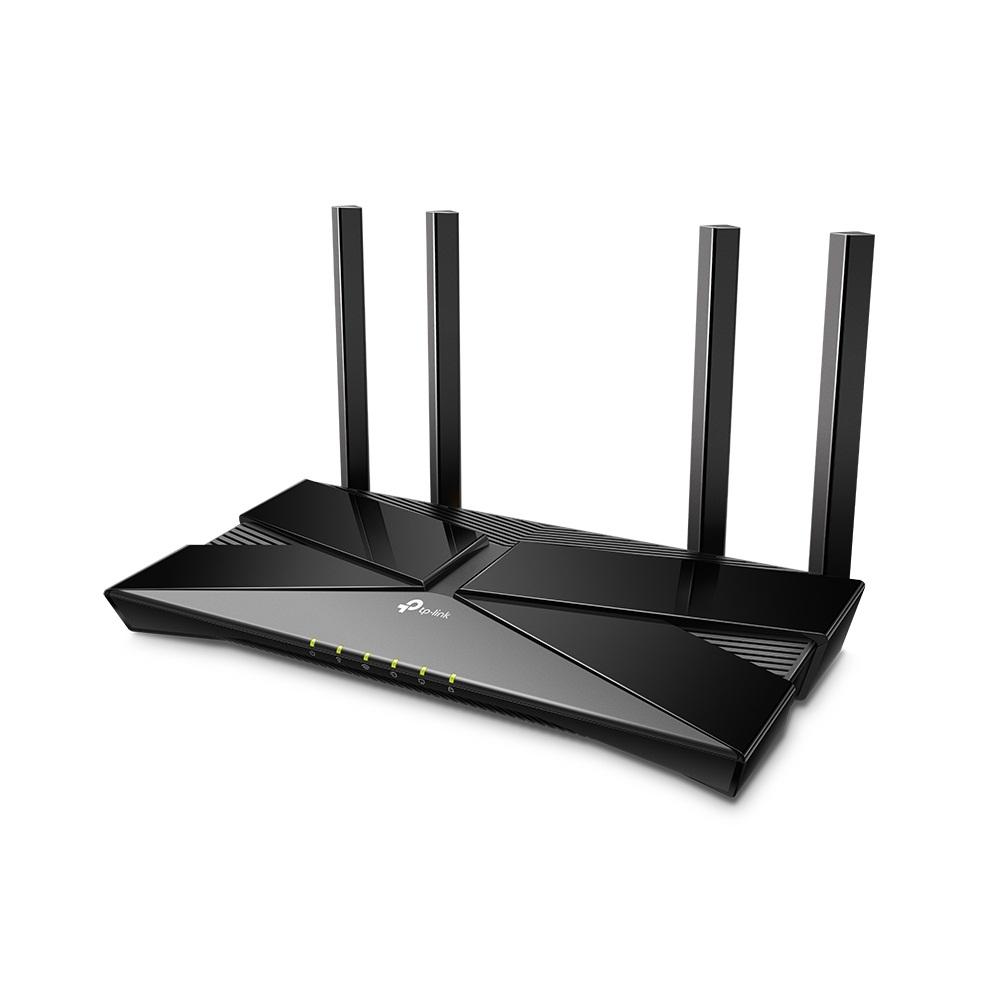

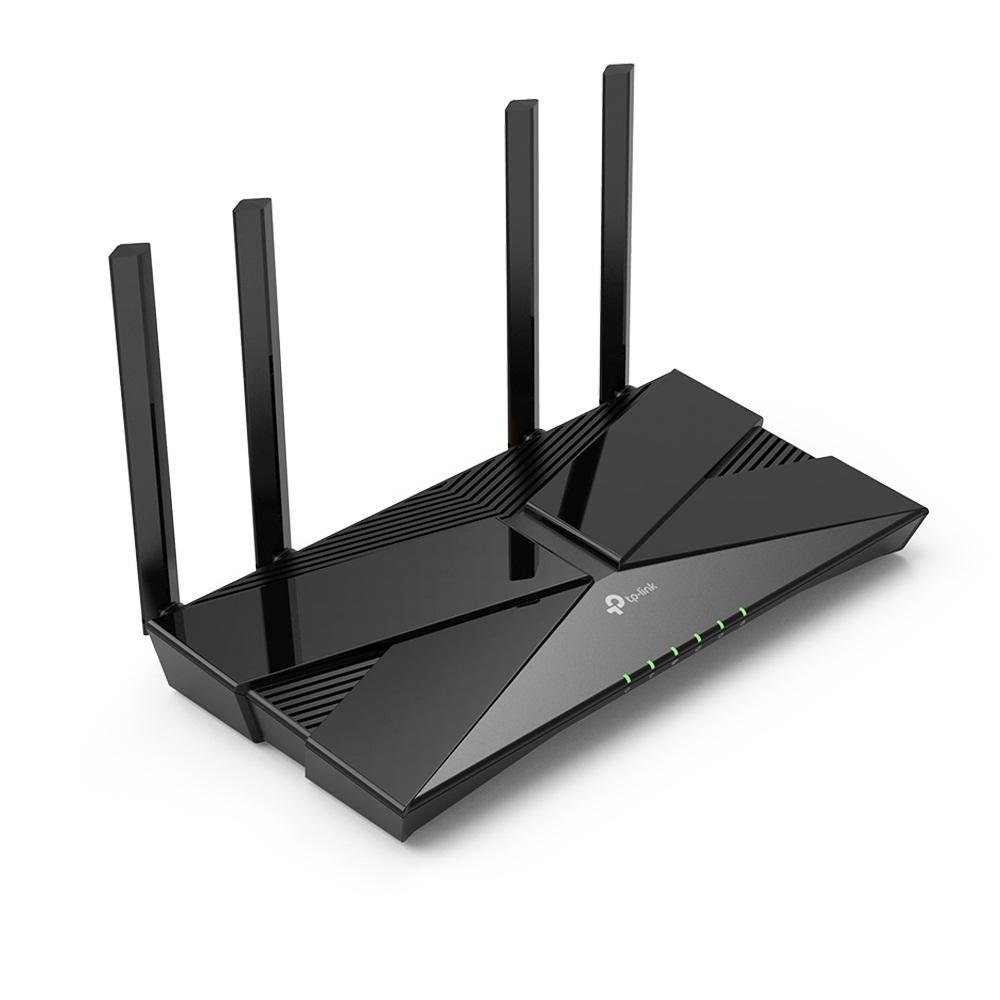

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router

Buy TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router online at Rs. 16290. Buy complete range of Wireless Routers on Vmart.pk, We Offer home delivery all over Pakistan.

Super-Fast 1.8 Gbps Wi-Fi – Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8 Gbps.†

Connect More Devices – Communicates with more devices using OFDMA while simultaneously reducing lag.‡

Broader Coverage – Improved algorithm, beamforming, and high-performance antennas enhance the Wi-Fi coverage performance.§

Next-Gen Platform – The Next-Gen High-Efficiency Qualcomm Chipset provides fast and stable Wi-Fi while saving power consumption.△

Parental Controls – Enjoy the most versatile yet free parental controls features among all routers, including URL blocking, profile management, pausing, and more.

Works with Most ISPs – Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract.

OneMesh – Use with OneMesh extenders to get whole-home coverage and enjoy smooth

roaming between signals.

Easy Setup – Set up your router in minutes with the powerful TP-Link Tether App.

Backward Compatible – Supports all previous 802.11 standards Wi-Fi devices.

Standards Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX1800

5 GHz: 1201 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range 3 Bedroom Houses

4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity High

Dual-Band

Allocate devices to different bands for optimal performance

Simultaneously communicates with multiple Wi-Fi 6 clients

Improves network efficiency by limiting excessive occupation

4 Streams

Connect your devices to more bandwidth

Working Modes Router Mode

Access Point Mode

Processor Dual-Core CPU

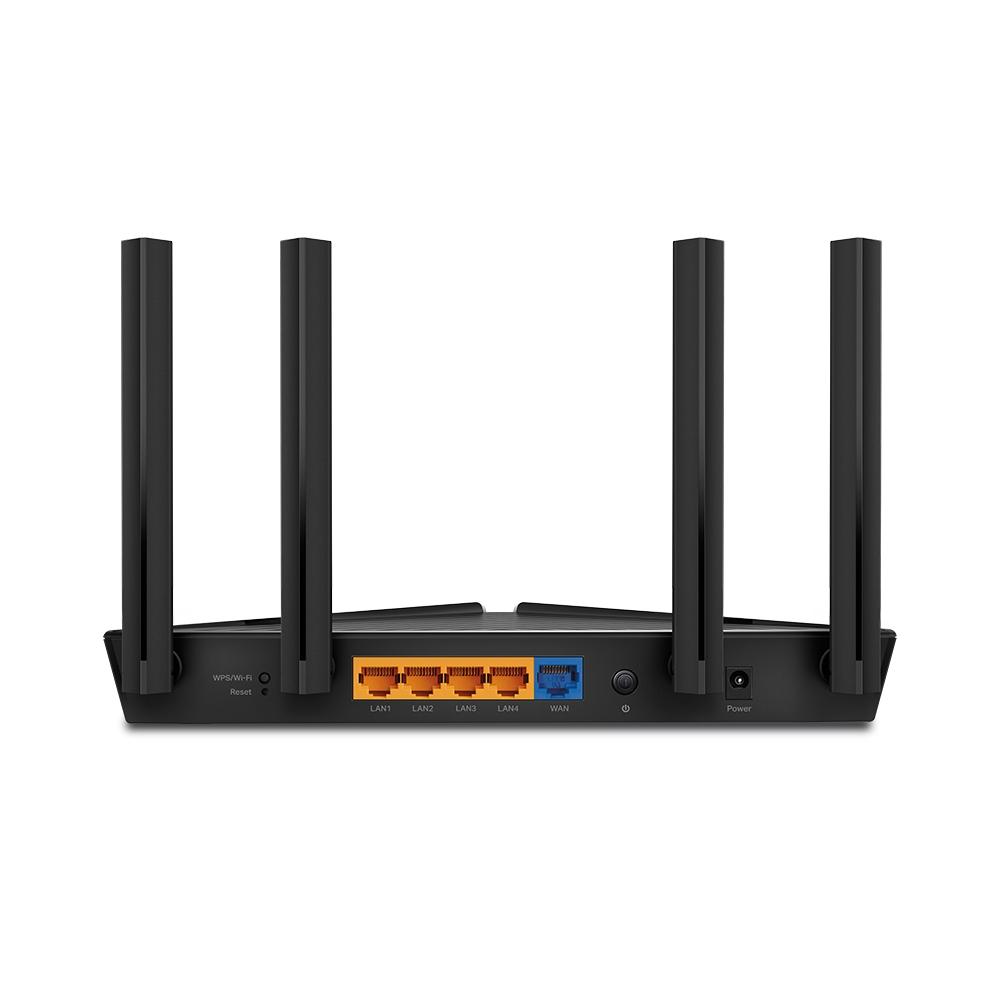

Ethernet Ports 1× Gigabit WAN Port

4× Gigabit LAN Ports

Buttons WPS/Wi-Fi Button

Power On/Off Button

LED On/Off Button

Reset Button

Power 12 V ⎓ 1 A

WiFi Encryption WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

Protocols IPv4

IPv6

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

Cloud Service Auto Firmware Upgrade

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

Dimensions (W×D×H) 10.2 × 5.3 ×1.5 in

(260.2 × 135.0 × 38.6 mm)

Package Contents Wi-Fi Router Archer AX23

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

WiFi Transmission Power CE:

<20dBm(2.4 GHz)

<23dBm(5.15 GHz~5.25 GHz)

FCC:

<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity EU Version

5G

11a 6Mbps: -96dbm

11a 54Mbps:-75dbm

11ac VHT20_MCS0: -95dbm

11ac VHT20_MCS8: -71dbm

11ac VHT40_MCS0: -92dbm

11ac VHT40_MCS9: -66dbm

11ac VHT80_MCS0: -89dbm

11ac VHT80_MCS9:-62dbm

11ax HE20_MCS0:-95dbm

11ax HE20_MCS11: -64dbm

11ax HE40_MCS0: -92dbm

11ax HE40_MCS11: -60dbm

11ax HE80_MCS0: -89dbm

11ax HE80_MCS11:-59dbm

2.4G

11g 6Mbps:-96dbm

11g 54Mbps:-75dbm

11n HT20_MCS0:-95dbm

11n HT20_MCS7:-75dbm

11n HT40_MCS0:-92dbm

11n HT40_MCS7: -72dbm

11ac VHT20_MCS0:-95dbm

11ac VHT20_MCS8:-72dbm

11ac VHT40_MCS0:-92dbm

11ac VHT40_MCS9: -67dbm

11ax HE20_MCS0:-95dbm

11ax HE20_MCS11: -65dbm

11ax HE40_MCS0: -92dbm

11ax HE40_MCS11: -62dbm
