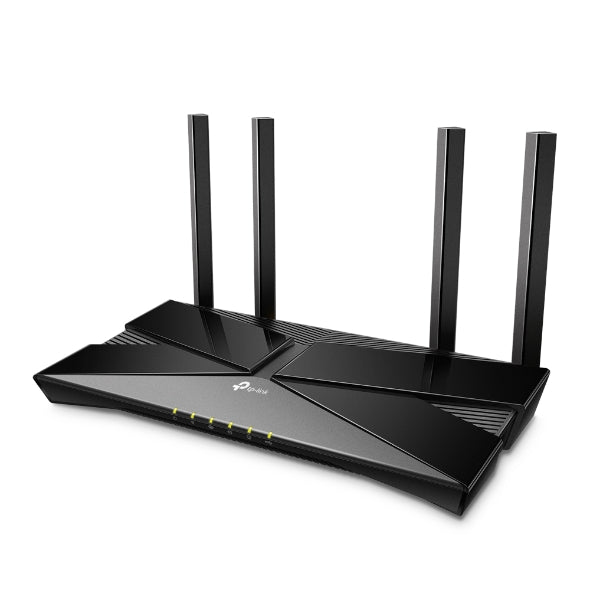

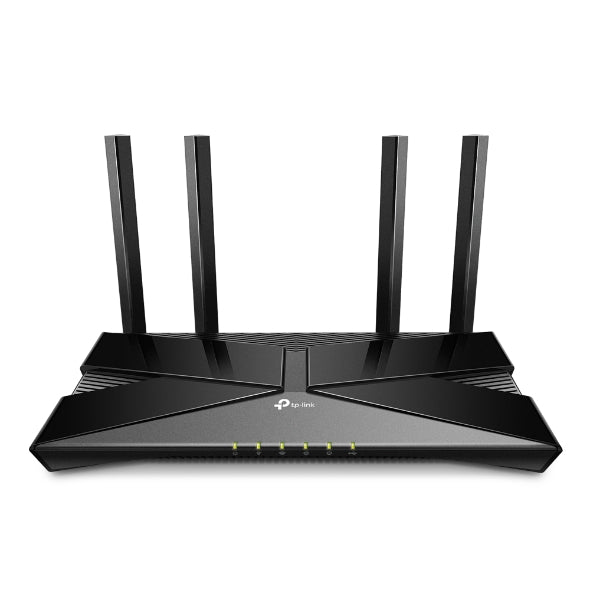

TP-Link Archer AX20 AX1800 Dual-Band Wi-Fi Router

Buy TP-Link Archer AX20 AX1800 Dual-Band Wi-Fi Router online at Rs. 20490. Buy complete range of Wireless Routers on Vmart.pk, We Offer home delivery all over Pakistan.

The latest generation of WiFi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network

Every application feels more fluid with drastically improved WiFi speeds. Both 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K streaming, online gaming, and fast downloading

Beamforming technology, independent Front-End Module, and four high-gain antennas combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards your devices.

Easily handle dozens of devices streaming and gaming at the same time—OFDMA future-proofs your home networks by providing greater capacity to connect more devices.

A powerful 1.5 GHz quad-core CPU generates minimal latency within your network even under heavy load of transmission. Experience a faster response time for every website click or online video playback.

The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi

WIRELESS

Standards Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX1800

5 GHz: 1201 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range 3 Bedroom Houses

4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

WiFi Capacity High

Dual-Band

Allocate devices to different bands for optimal performance

OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

4 Streams

Connect your devices to more bandwidth

Working Modes Router Mode

Access Point Mode

HARDWARE

Processor 1.5 GHz Quad-Core CPU

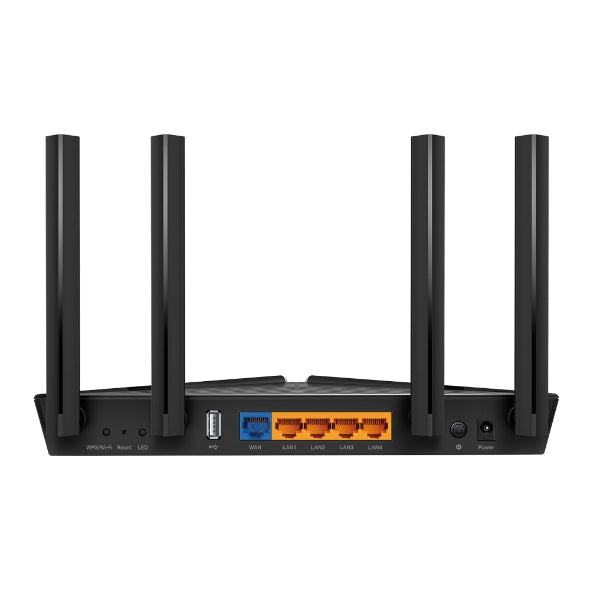

Ethernet Ports 1× Gigabit WAN Port

4× Gigabit LAN Ports

USB Support 1× USB 2.0 Port

Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons WPS/Wi-Fi Button

Power On/Off Button

LED On/Off Button

Reset Button

Power 12 V ⎓ 1.5 A

SECURITY

WiFi Encryption WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

SOFTWARE

Protocols IPv4

IPv6

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

Cloud Service Auto Firmware Upgrade

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

PHYSICAL

Dimensions (W×D×H) 10.2 × 5.3 ×1.5 in

(260.2 × 135.0 × 38.6 mm)

Package Contents Wi-Fi Router Archer AX20

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power FCC:

<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity 5 GHz:

11a 6Mbps:-97dBm

11a 54Mbps:-79dBm

11ac VHT20_MCS0:-96dBm

11ac VHT20_MCS11:-66dBm

11ac VHT40_MCS0:-94dBm

11ac VHT40_MCS11:-63dBm

11ac VHT80_MCS0:-91dBm

11ac VHT80_MCS11:-60dBm

11ax HE20_MCS0:-95dBm

11ax HE20_MCS11:-63dBm

11ax HE40_MCS0:-92dBm

11ax HE40_MCS11:-60dBm

11ax HE80_MCS0:-89dBm

11ax HE80_MCS11:-58dBm

2.4 GHz:

11g 6Mbps:-97dBm

11n HT20_MCS0:-97dBm

11n HT20_MCS7:-78dBm

11n HT40_MCS0:-95dBm

11n HT40_MCS7:-75dBm

11ac VHT20_MCS0:-96dBm

11ac VHT20_MCS11:-67dBm

11ac VHT40_MCS0:-94dBm

11ac VHT40_MCS11:-64dBm

11ax HE20_MCS0:-96dBm

11ax HE20_MCS11:-64dBm

11ax HE40_MCS0:-93dBm

11ax HE40_MCS11:-61dBm

Online prices, specifications, description and images generally match actual, but may vary and are subject to change without notice. Vmart cannot be held liable for errors or omissions.Please verify the specifications at the time of purchase. No claim whatsoever would be accepted in case of specification error/mismatch, once the product is sold.
