TP-Link Archer AX11000 Tri-Band Wi-Fi 6 Gaming Router

Buy TP-Link Archer AX11000 Tri-Band Wi-Fi 6 Gaming Router online at Rs. 98990. Buy complete range of Wireless Routers on Vmart.pk, We Offer home delivery all over Pakistan.

AX11000 speed machine that delivers 12-streams Wi-Fi Speeds Over 10 Gbps: 4804 Mbps (5 GHz Gaming) + 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)

: Detect and optimize gaming streams, to ensure your gaming stays immersive

Keep your accounts and documents safe with Homecare™ security system powered by Trend Micro™.

Real-time latency, game duration and network resource allocation in a glance with fine-tuned UI.

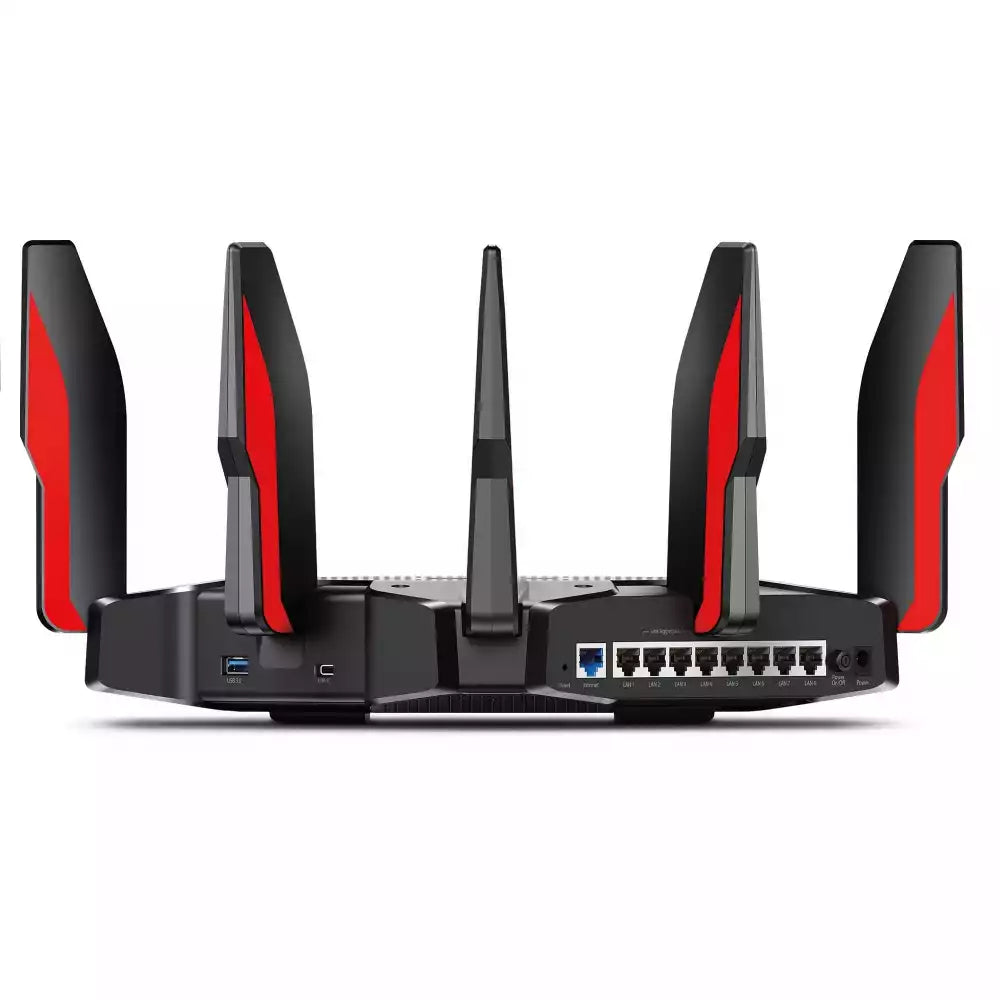

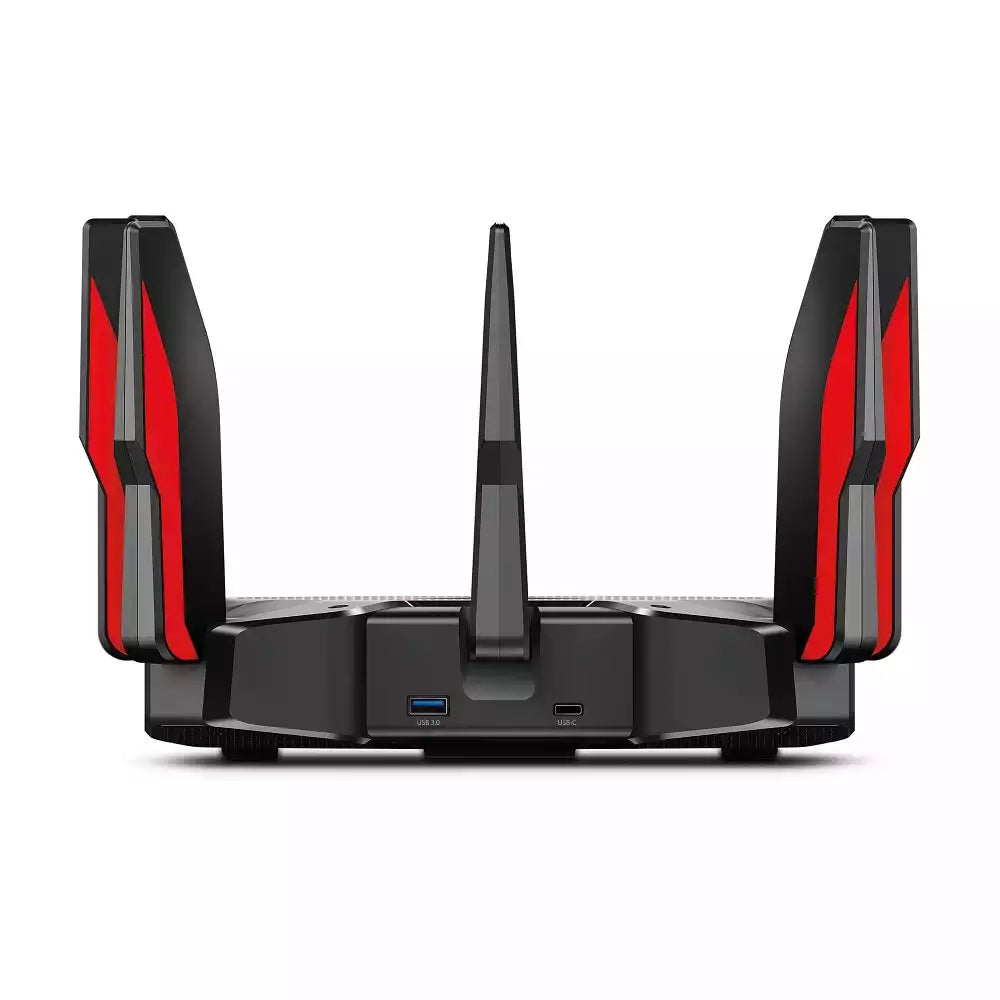

2.5 Gbps WAN port and eight Gigabit LAN ports, 2 USB 3.0 in Type A and Type C provide extensive connectivity.

1.8 GHz Quad-Core CPU and 3 coprocessors ensure your network performance always at peak run.

OFDMA increases the avg. throughput and reduces the lag.

Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.

Standards Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX11000

5 GHz: 4804 Mbps (802.11ax, HE160)

5 GHz: 4804 Mbps (802.11ax, HE160)

2.4 GHz: 1148 Mbps (802.11ax)

WiFi Range 4-6 Bedroom Houses

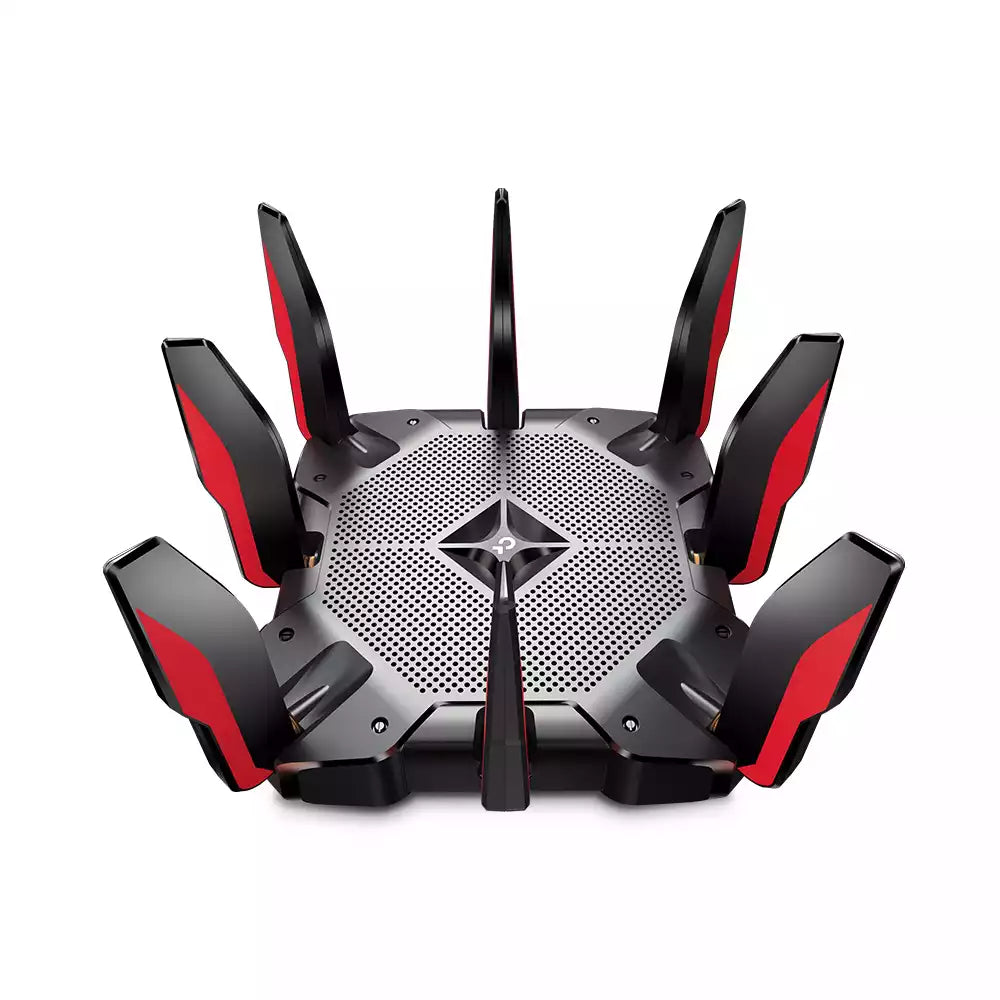

8× Detachable High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

4T4R

Multiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity Very High

Tri-Band

Allocate devices to different bands for optimal performance

4×4 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion

12 Streams

Connect your devices to more bandwidth

Working Modes Router Mode

Access Point Mode

Processor 1.8 GHz 64 Bit Quad-Core CPU

Ethernet Ports 1× 2.5 Gbps WAN Port

8× Gigabit LAN Ports

Static Link Aggregation (LAG) available with 2× LAN ports

USB Support 1× USB-C 3.0 Port

1× USB-A 3.0 Port

Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons Wi-Fi On/Off Button

Power On/Off Button

LED On/Off Button

WPS Button

Reset Button

Power 12 V ⎓ 5 A

WiFi Encryption WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

HomeCare™ Antivirus

Malicious Site Checker

Port Intrusion Prevention

Infected Device Isolation

Notification and Log

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

Protocols IPv4

IPv6

Game Center Game Accelerator

Detects and optimizes gaming streams to keep latency as low as possible

Game Statistics

Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail

Game Protector

Keep your accounts and system safe with HomeCare™ antivirus protection

Service Kits HomeCare™

Learn More>

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Parental Controls HomeCare™ Parental Controls

Custom Profiles

Content Filtering

App Block

URL Filtering

Time Limit

Time Schedule (Bedtime)

Log Insight

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service Game Accelerator QoS

QoS by Device

HomeCare™ QoS

QoS by Application

Cloud Service Auto Firmware Upgrade

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

WiFi Transmission Power CE:

<20dBm(2.4GHz)

<23dBm(5.15GHz~5.35GHz)

<30dBm(5.47GHz~5.725GHz)

FCC:

<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)

<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)

WiFi Reception Sensitivity 5 GHz_1:

11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm

11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm

11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm

11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm

11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm

11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm

11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm

11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm

11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm

5 GHz_2:

11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm

11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm

11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm

11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm

11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm

11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm

11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm

11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm

11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm

2.4 GHz：

11g 6Mbps：-97dBm, 11a 54Mbps:-79dBm

11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm

11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm

11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm

11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm

11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm

11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm

Dimensions (W×D×H) 11.3 × 11.3 × 7.2 in

(288 × 288 × 184 mm)

Wi-Fi Router Archer AX11000

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
