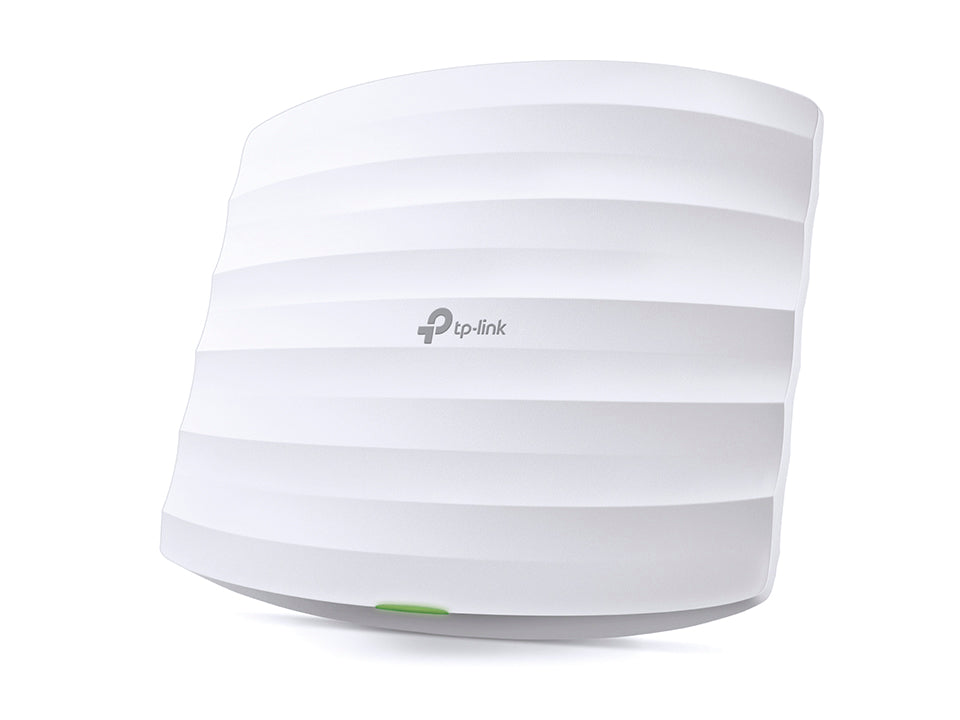

TP-Link AC1200 Wireless Dual Band Access Point EAP320

Buy TP-Link AC1200 Wireless Dual Band Access Point EAP320 online at Rs. 20890 Buy complete range of Category on Vmart.pk, We Offer home delivery all over Pakistan.

• Speeds of up to 1.2Gbps over concurrent dual band 802.11ac Wi-Fi with MIMO and TurboQAM technologies

• Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance for business-level applications
• Free EAP Controller Software lets administrators easily manage hundreds of EAPs
• Captive portal provides a convenient method for guest authentication
• Power over Ethernet (802.3at) support and simple mounting design allow for flexible deployment and convenient installation

The combination of next generation 802.11ac Wi-Fi and advanced MIMO and TurboQAM technology. The EAP330/EAP320 reaches speeds of up to 1.9/1.2Gbps, including 600/300 Mbps on the 2.4GHz band and 1300/867 Mbps on the 5GHz band.

• 867Mbps 5GHz
• 300Mbps 2.4GHz

Broadcom enterprise-class chipsets Dedicated high-power amplifier, professional antenna, and well-designed RF shield Link aggregation between two gigabit ports*

• Airtime Fairness
• Band Steering
• Beamforming Technology

TP-LINK's free and easy-to-use EAP Controller Software allows users to manage and monitor hundreds of TP-LINK EAPs in multiple sites with the controller in a single location. The ability to control, adjust, and visualize the entire network from any connected PC makes centralized business Wi-Fi management more efficient and cost-effective than ever before.

Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.

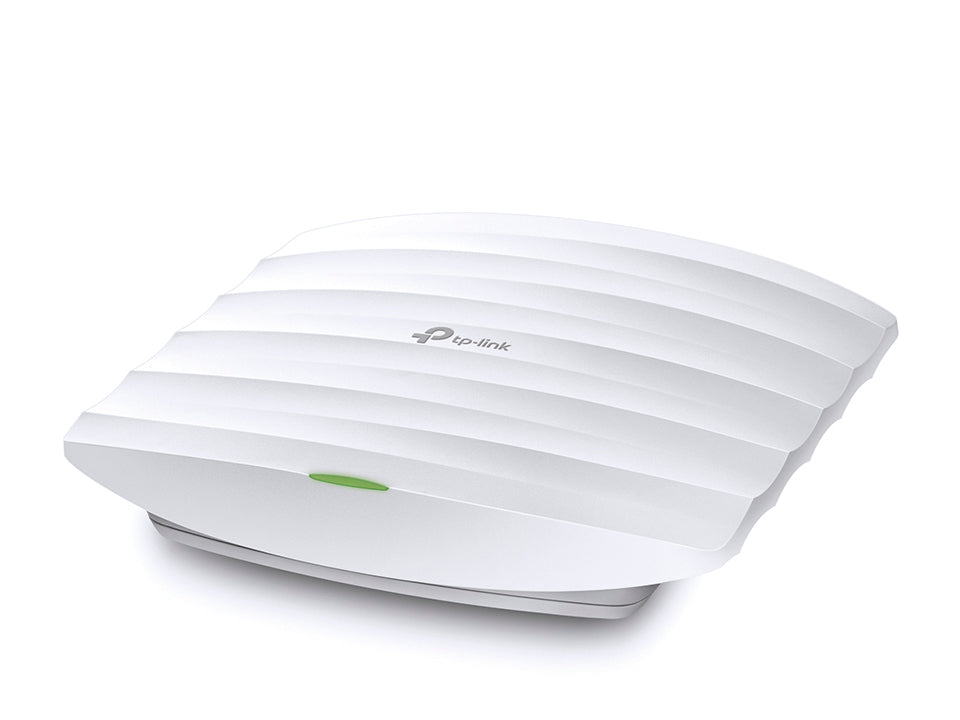

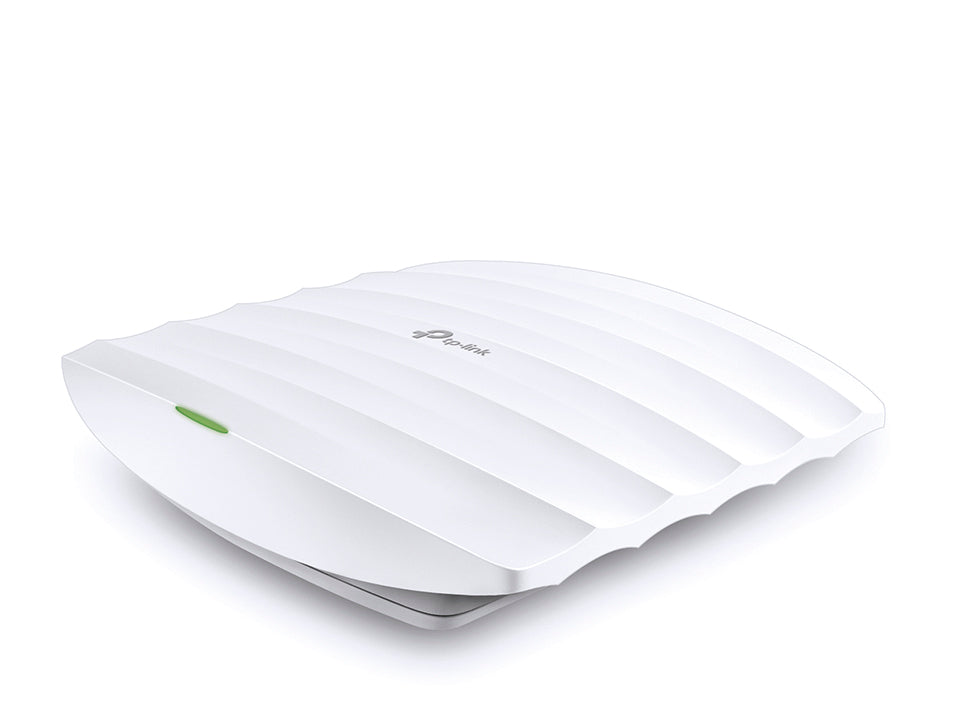

The EAP's low profile design and easy mount chassis make it easy to install the device on any wall or ceiling surface and allow it to blend in with most interior decorating styles. EAP series APs support Power over Ethernet (PoE), making deployment effortless and flexible.

With breakthrough 11AC speed, business-grade Wi-Fi performance, easy-to-use Centralized management software, efficient captive portal function, low profile design and PoE support feature, the new EAP 320/330 series are more capable of serving the high-density, most demanding business environments, including schools, hotels, and enterprises.

• Hotel
• Company
• Campus
• Mall

• Interface
• Gigabit Ethernet (RJ-45) Port x 1（Support IEEE802.3at PoE）
• Console
• Port x 1
• Button
• Reset
• Power Supply
• 802.3af PoE or External 12VDC / 1.5A Power Supply
• Power Consumption
• 16 W
• Dimensions (W x D x H)
• 8.7 x 7.6 x 1.4 in. (220.5*193.5*36.5mm)
• Antenna Type
• Internal Omni
• 2.4GHz: 2 x 5dBi
• 5GHz: 2 x 6dBi
• Mounting
• Ceiling /Wall Mounting (mounting kit included)
• Physical Security Lock
• Kensington Lock Slot
• Hardware Watch Dog
• Yes

• Wireless Standards
• IEEE 802.11ac/n/g/b/a
• Frequency
• 2.4GHz and 5GHz
• Signal Rate
• 5GHz:Up to 867Mbps
• 2.4GHz:Up to 300Mbps
• Transmit Power
• < 27dBm
• Wireless Functions
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control （Adjust Transmit Power on dBm）
• QoS(WMM)
• Airtime Fairness
• Beamforming
• Band Steering
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• Wireless Security
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise,
• WPA-PSK / WPA2-PSK

• EAP Controller Software
• Yes
• Email Alerts
• Yes
• LED ON/OFF Control
• Yes
• Management MAC Access Control
• Yes
• SNMP
• v1,v2c
• System Logging Local/Remote Syslog
• Local logging or remote syslog
• Telnet
• Yes
• Web-based Management
• HTTP/HTTPS
• CLI (Command Line Interface)
• Yes
• L3 Management
• Yes
• Multi-site Management
• Yes
• Management VLAN
• Yes

• Certification
• FCC, RoHS
• Package Contents
• AC1200 Wireless Dual Band Gigabit Access Point EAP320
• Power Adapter
• Mounting Kit
• Installation Guide
• System Requirements
• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
• Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
