Logitech ConferenceCam cc3000e

See and Be Seen

Razor-sharp ZEISS® glass lens with autofocus, 1080p HD resolution, and 10x lossless zoom lets you see and interact with everyone at the table, or zero in on close-ups.


Hear and Be Heard

Omni-directional full duplex mics enable conferees to clearly converse from a 20-foot diameter around the base without mic pods, making it seem like conversations are happening in the same room.


See and Interact with Everyone at the Table

The 90-degree field of view with mechanical 260-degree pan and 130-degree tilt is ideal for mid-sized group meetings.


All-in-One Design

Professional-quality group video conferencing straight out of the box with no special software, training, or maintenance required.


USB Plug-and-Play Connectivity

Easily connect to a PC, Mac or thin client with no additional software required.


Near Field Communication (NFC) Pairing

Touch an NFC-enabled mobile device over the base console to instantly pair and enjoy professional speakerphone audio quality.


Bluetooth® Wireless Connectivity

Use the convenience of this wireless technology to quickly and easily create a connection between any Bluetooth® device and the ConferenceCam speakerphone.


H.264 with SVC and UVC 1.5 Technology

Frees up laptop bandwidth by putting video processing within the camera, resulting in a smoother video stream in applications like Skype for Business and Microsoft® Lync® 2013.


Broad Application Compatibility
Certified for Skype for Business, Optimized for Lync, Skype Certified, Cisco Jabber™ and WebEx® compatible.1 Certified ensures an integrated experience with most business-grade UC platforms.


Control Meetings with Base Console or Dockable Remote
Easily operate camera pan/tilt/zoom, volume up/down, answer/hang-up2 mute and other functions during call.


Conversations Sound Natural and Life-Like
Acoustic echo cancelation and noise-cancelling make it seem like conversations are happening in the same room.


LCD displays Caller ID2 and other info
View call-related info (Caller ID, call duration, etc.) and speakerphone/camera function indicators (volume control, etc.) on LCD display screen.


Far-end camera control
Operate camera pan, tilt and zoom functions of another Logitech ConferenceCam in the remote location.3


Use Your Choice of UC Video Application
Works on virtually any desktop video conferencing and UC application with no proprietary and expensive systems to set up.


Kensington Lock-Enabled
Camera and speakerphone are both equipped with Kensington Security Slots to help provide security from theft.

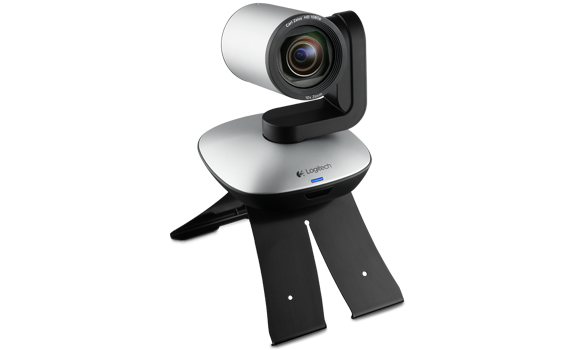

Multiple Mounting Options
Set up the conference room the way you want with up to a 32-foot range between camera and speaker: use the camera on the table or mount it on the wall with included hardware. The bottom of the camera is designed with a standard tripod thread for even more options.

1 See www.logitech.com/ciscocompatibility for the latest version.
2 With Skype for Business, Lync 2010 and 2013 and Skype, and Cisco Jabber™.
3 With Skype for Business and Lync 2010 and 2013; requires plug-in download.

System Requirements
Windows 7 or 8 (Note: Win 7 today would be HD through MJPG. Driver for H.264 is TBD)
Mac OS X 10.7 or higher
Google Chromebook version 29.0.1547.70, Platform 4319.79.0
With:
2.4 GHz Intel® Core 2 Duo processor
2 GB RAM or more
Hard drive space for recorded videos
USB 2.0 port (USB 3.0 ready)
Note: For Full HD Support, please check with your software application provider for system requirements.

Drivers/Software Downloads
Skype for Business and Microsoft Lync 2013 and 2010: Control of remote camera
Skype: Call answer/end/flash, caller ID
Cisco Jabber™: Call answer/end/ flash, caller ID
Other: Diagnostic tool (if needed)
Firmware upgradeable software (when and if needed)

Select the applicable product to download software on our support site.

Application Compatibility
UVC/plug and play compatible across all other apps

Certifications
Skype for Business, Optimized for Lync, Cisco Jabber™, WebEx®, Skype™

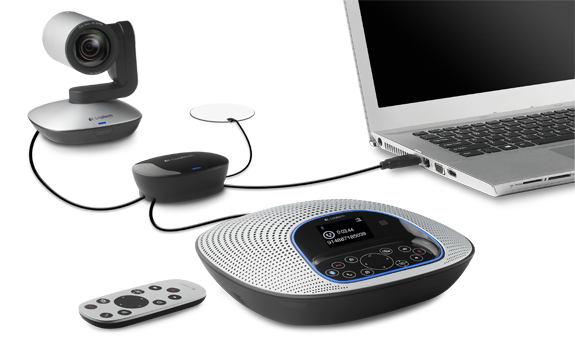

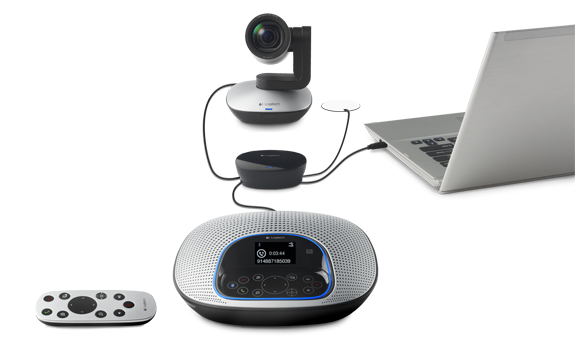

Package Contents
Speakerphone
Camera
Remote control
Powered hub
Wall/table mount
Two 16-foot cables for speakerphone/hub and camera/hub connection
USB cable for hub/PC connection
Adhesive solution for hub mounting
Power adapter
Quick-start guide


Technical Specifications

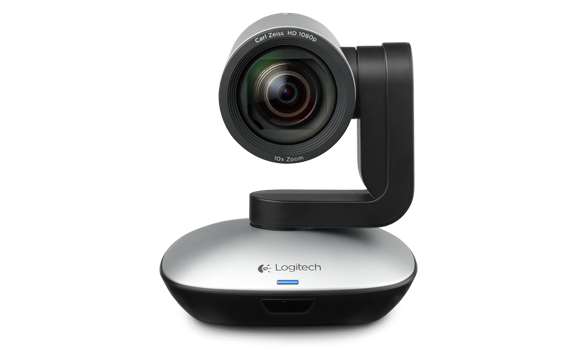

Camera
Smooth motorized pan, tilt and zoom, controlled from remote or console
260° pan, 130° tilt
10X lossless zoom
90° field of view
Full HD 1080p 30fps
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Camera “Home” preset key
Far-end control (PTZ) of ConferenceCam products
ZEISS® optics with autofocus
Kensington security slot
LED to confirm video streaming
Standard tripod thread

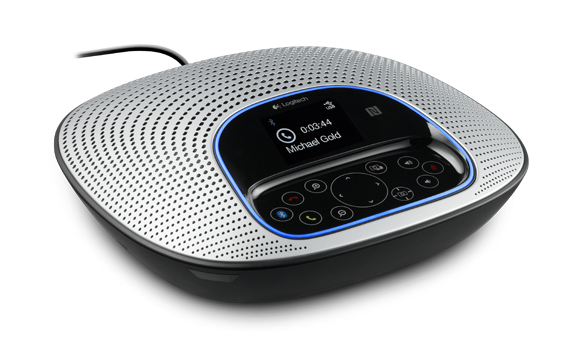

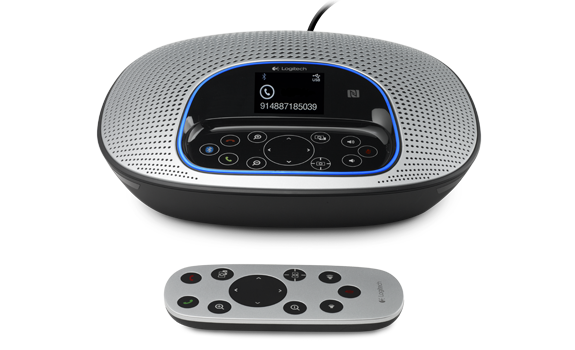

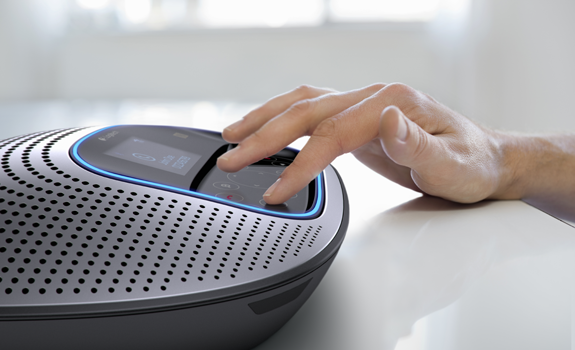

Speakerphone
Integrated full duplex speakerphone with echo and noise cancellation
Supports stereo or mono PC audio
Bluetooth® and NFC enabled
LCD for caller ID, call duration and other functional response
LEDs for speakerphone streaming, mute, hold, and Bluetooth®
Touch controls for call answer/end, volume and mute, Bluetooth® pairing – plus camera PTZ, “home” preset and far-end control


Microphones (Tx)
Two omni-directional microphones supporting 20-foot diameter range
Frequency response: 100Hz – 7.75KHz
Sensitivity: -28dB +/-3dB
Distortion: <1% @ 1KHz at 65dB


Speakers (Rx)
Frequency response: 120Hz – 10KHz
Sensitivity: 83dBSPL +/-3dB at 1W/1M
Max output: 95dBSPL
Distortion: <5% from 200Hz
Kensington security slot

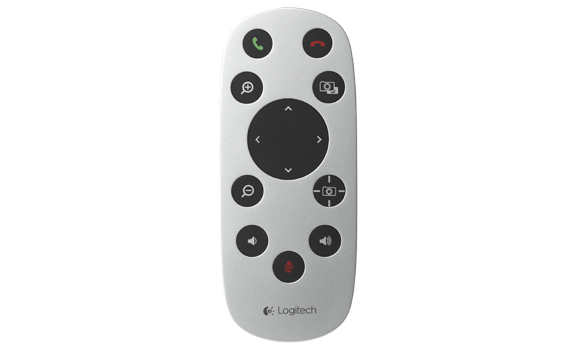

Remote Control
Dockable
10-foot range


Hub/Cables
Central mountable hub for connection of all components
Included adhesive solution for under-table mounting
Two 16-foot cables for connection between hub and camera/speakerphone
One 10-foot USB cable for connection to PC/Mac
AC Power adapter


Mount
Dual purpose mount for wall placement or for elevating camera on table


Compliance and Tools
USB 2.0 compliant
UVC-compliant video and audio for broad application compatibility
Certified for Skype for Business, Optimized for Lync, Skype Certified, Cisco Jabber and WebEx compatible
Downloadable diagnostic tool
Field upgradeable firmware tool
Downloadable app plug-ins for advanced feature support

Product Dimensions
Camera
Width: 5.12 in (130 mm)
Height: 5.12 in (130 mm)
Depth: 5.91 in (150 mm)

Speakerphone
Width: 9.45 in x (240 mm)
Height: 9.45 in (240 mm)
Depth: 2.68 in (68 mm)

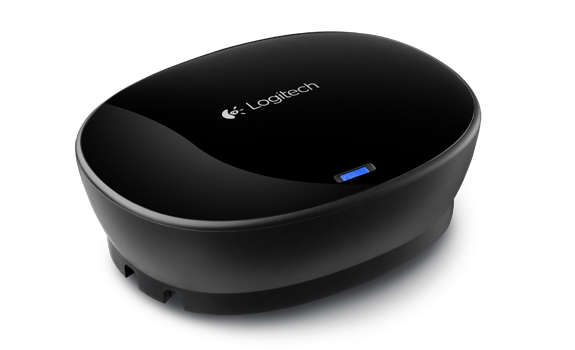

Hub
Width: 3.74 in (95 mm)
Height: 2.91 in (74 mm)
Depth: 1.34 in (34 mm)

Remote
Width: 1.97 in (50 mm)
Height: 4.72 in (120 mm)
Depth: 0.36 in (9.8 mm)

Wall/Table Mount
Width: 8.27 in (210 mm)
Height: 4.72 in (120 mm)
Depth: 3.90 in (99 mm)

Weight

Camera
20.81 oz (590 g)

Speakerphone
28.57 oz (810 g)

Hub
1.76 oz (50 g)

Remote
1.69 oz (48 g)

Wall/Table Mount
8.99 oz (255 g)
