Gigabyte Nvidia GV-N980G1 GAMING-4GD 4GB GDDR5

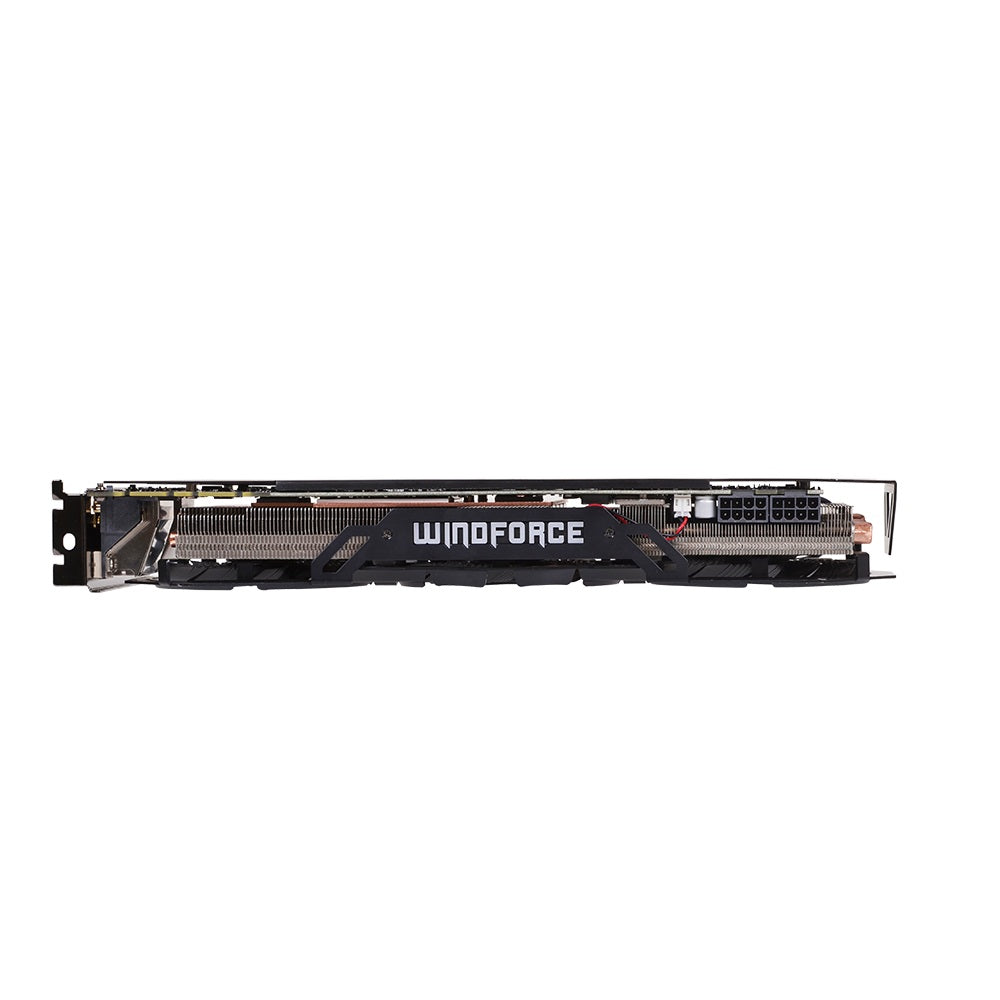

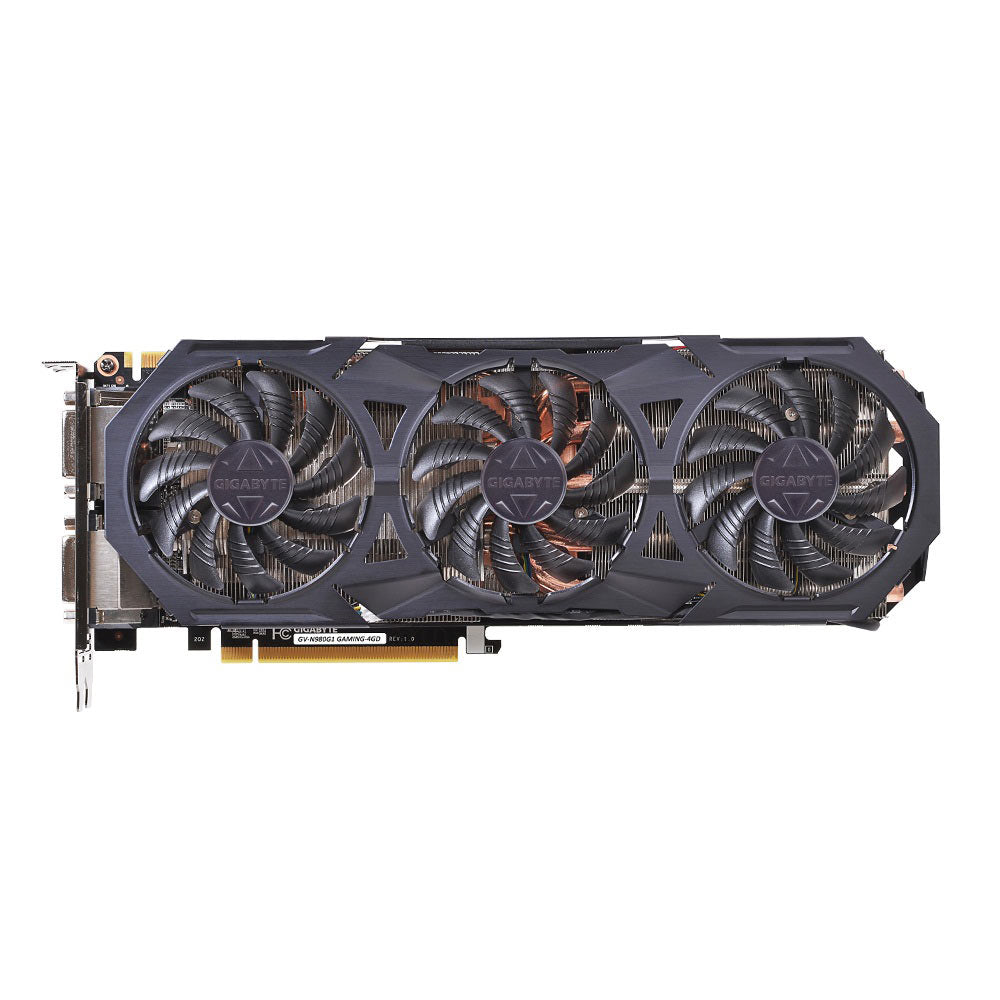

GIGABYTE WINDFORCE 3X 600W cooling system once again break the record and bring the air cooling capacity up to 600W by only using 2 slots heights. The WINDFORCE 3X 600W cooling system is equipped with five 8mm and one 6mm composite cooper heat-pipes , special fin architecture, unique blade fan design, and GIGABYTE “Triangle Cool” technology. This not only provides an effective heat dissipation capacity but also enables higher performance due to a lower temperature.

Flex Display technology

GIGABYTE Flex display technology(patent-pending) can automatically detect any connected monitors and achieve multi-display gaming up to 4 monitors at the same time by using various output groups. Users could enjoy the best gaming experience in ultra HD resolution with extended flexibility in arranging monitor configurations and making future system upgrade extremely easy.

SOC ? GPU Gauntlet™ Sorting

With GPU Gauntlet™ Sorting, the Gigabyte SOC graphics card guarantees the higher overclocking capability in terms of excellent power switching.

Ultra Durable VGA™

Lower GPU Temperature

Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.

Better Overclocking Capability

Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.

Decrease Power Switching Loss

Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency.

Specifications

Chipset

GeForce GTX 980

Core Clock Base / Boost clock?

1228 / 1329 MHz

Process Technology

28 nm

Memory Clock

7Gbps

Memory Size

4 GB

Memory Bus

256 bit

Memory Type

GDDR5

Card Bus

PCI-E 3.0

DirectX

12

OpenGL

4.4

PCB Form

ATX

Digital max resolution

4096 X 2160

Analog max resolution

2048 x 1536

Multi-view

4

I/O

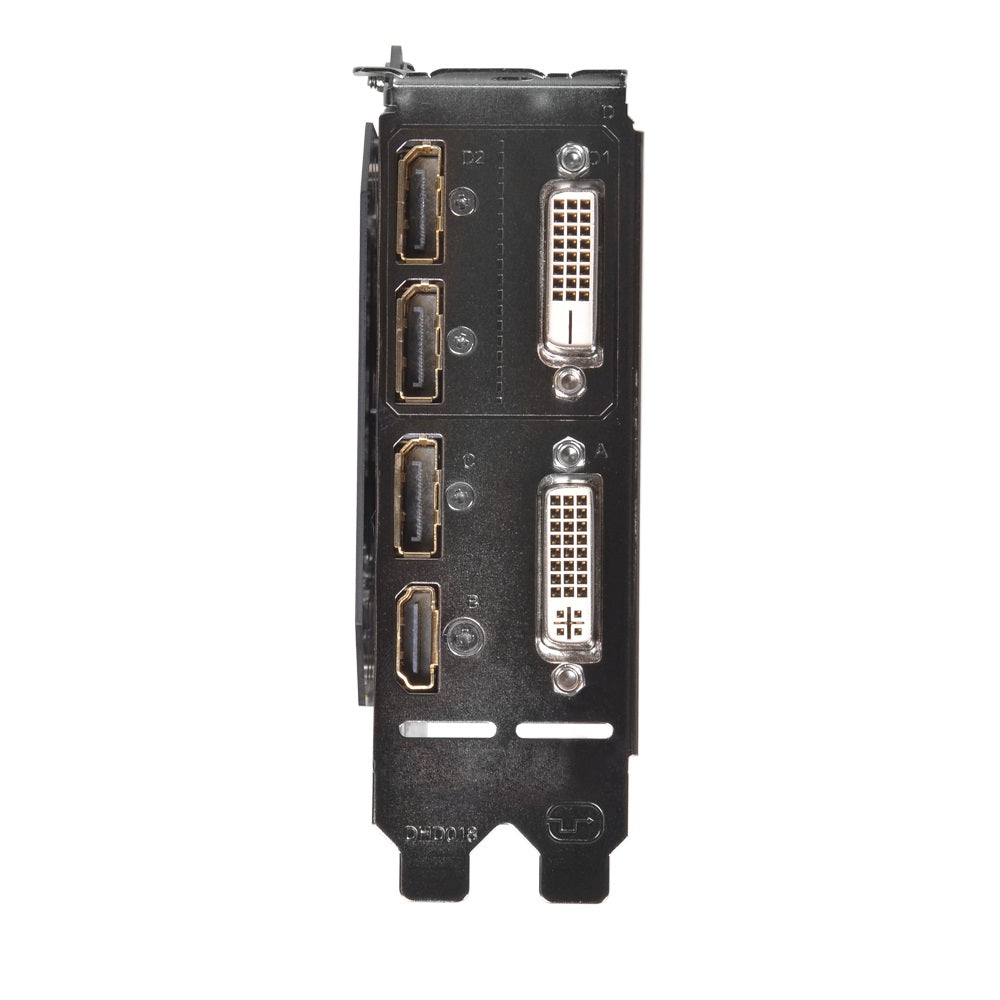

Dual-link DVI-I / DVI-D / DisplayPort*3 / HDMI*1

Card size

L=312mm, W=129mm, H=43mm

Power requirement

600W(with two 8-pin external power connectors)
