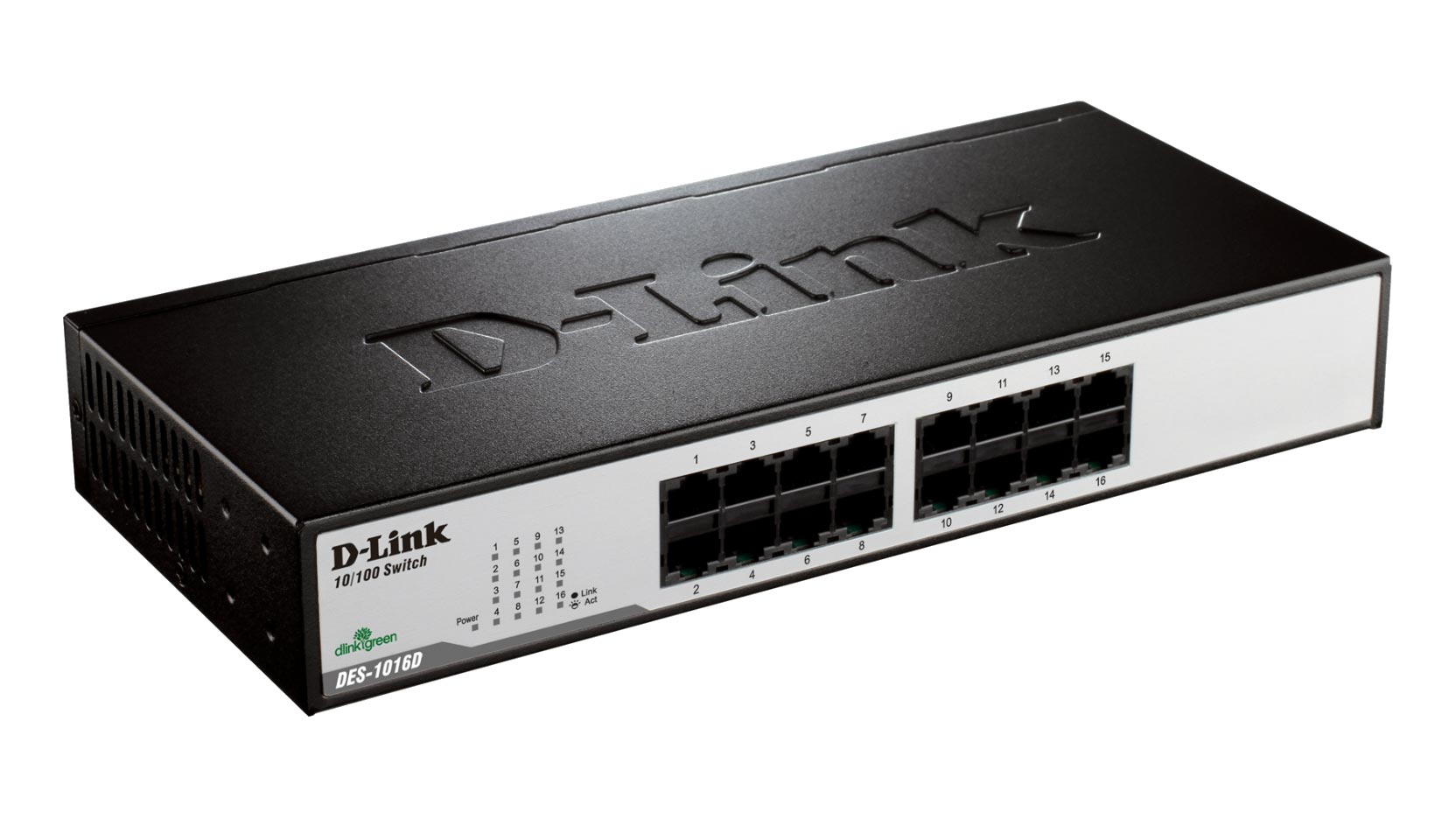

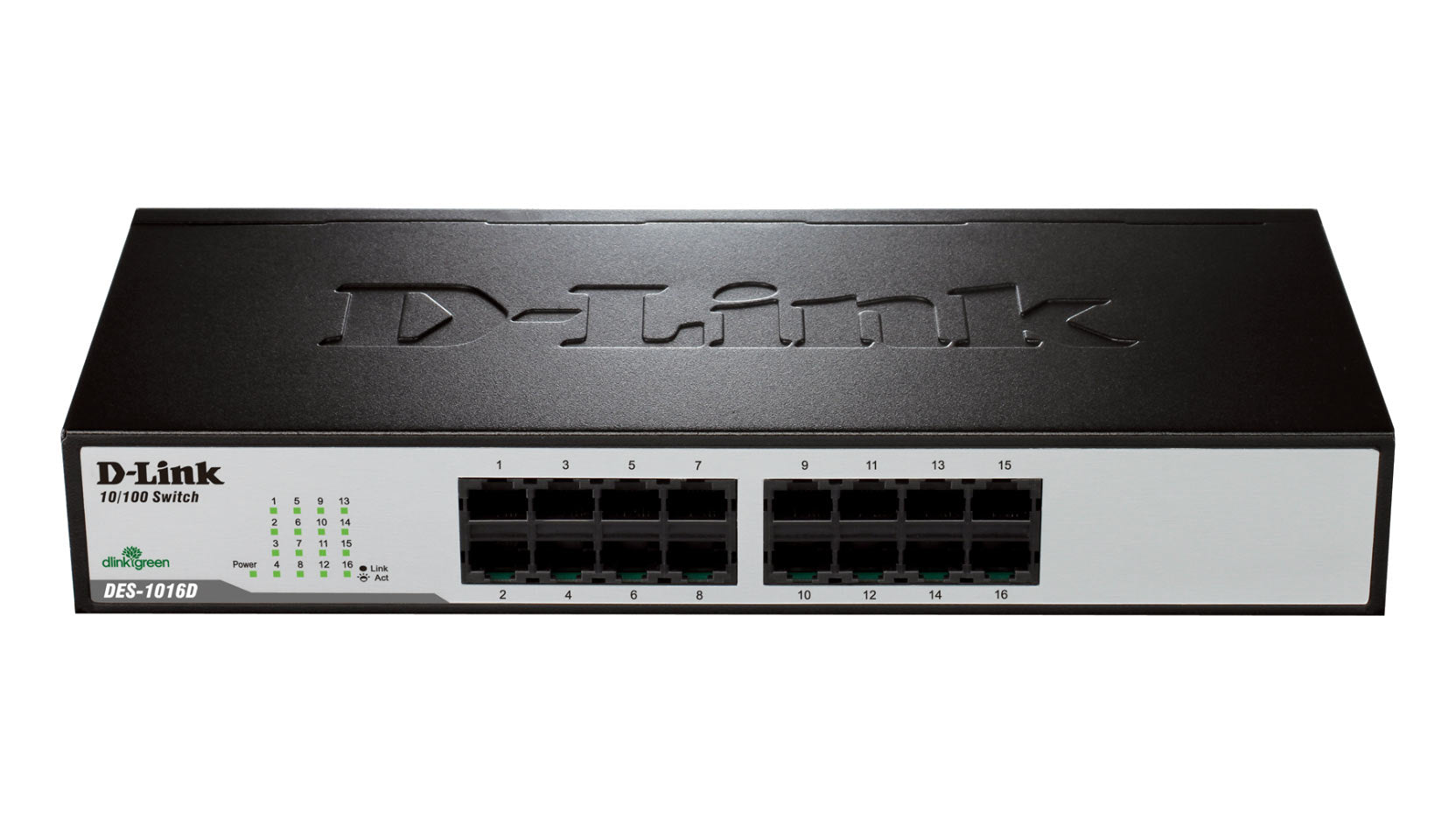

D-Link DES-1016D 16-Port Fast Ethernet Unmanaged Desktop Switch

Buy D-Link DES-1016D 16-Port Fast Ethernet Unmanaged Desktop Switch online on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of D-Link products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

The DES-1016D 16-Port Fast Ethernet Unmanaged Desktop Switch is designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.

With the D-Link DES-1016D, you can easily expand your network by adding more computers or devices with speeds up to 200 Mbps per port in full-duplex mode.

The DES-1016D use auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to 10 or 100 Mbps devices to create an integrated network. Each port automatically adjusts for straight-through or crossover cables to make the right link.

802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full.

The switches provide 802.1p priority queues for QoS, allowing users to run bandwidth-sensitive applications such as multimedia and VoIP Internet telephone without data flow bottlenecks that can degrade the quality of the network connection.

The switches support IEEE802.3az EEE which enables the switches to reduce power consumption when the switches are at low utilization, allowing users to save on power usage and costs. During these periods of low utilization, the switches can enter a low-power state and use up less power than regular operations.

• Inexpensive Fast Ethernet solution for SOHO/SMB
• Auto MDI/MDIX crossover for all ports
• Store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• IEEE 802.3x Flow Control
• Plug-and-play installation

??3.2 Gbps

IEEE 802.3 10BASE-T Ethernet (twistedpair copper)

IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

ANSI/IEEE 802.3 NWay Auto-Negotiation

IEEE 802.3x Flow Control

?IEEE 802.3az EEE function

??CSMA/CD

Ethernet:

10 Mbps (half duplex)

20 Mbps (full duplex)

Fast Ethernet:

100 Mbps (half duplex)

200 Mbps (full duplex)

??16 10/100Mbps Fast Ethernet ports

??Star

10BASE-T:

UTP CAT 3/4/5/5e (100 m max.)

EIA/TIA-586 100-ohm STP (100 m max.)

100BASE-TX

UTP CAT 5/5e (100 m max.)

EIA/TIA-568 100-ohm STP (100 m max.)

??Auto MDI/MDIX adjustment for all ports

Per port:

??Link/Activity

Per device:

?Power

??Store-and-forward

??8K entries per device

?Automatic update

Ethernet: 14,880 pps per port

Fast Ethernet: 148,800 pps per port

256 Bytes (2M bits)

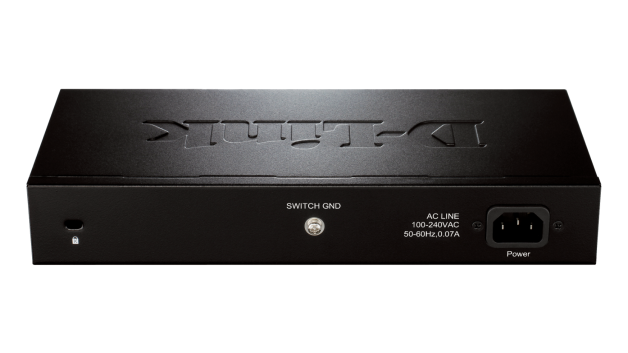

100~240 V AC 50/60 Hz internal universal power supply

Power On (Standby):

??DC input: 0.61 Watts

??AC input: 1.19 Watts

Max.:

??DC input: 1.55 Watts

??AC input: 2.89 Watts

Power On (Standby):

??AC input: 4.06 BTU/h

Maximum:

??AC input: 9.86 BTU/h

??2,266,559 hours

??0 ? to 40 ?C (32 ? to 104 ?F)

??-10 ? to 70 ?C (14 ? to 158 ?F)

??10% to 90% RH non-condensing

??5% to 90% RH non-condensing

??280 x 125.8 x 44 mm (11.0 x 5.0 x 1.7 inches)

?FCC Class A

??ICES-003 Class A

??CE Class A

??C-Tick Class A

??VCCI Class A

??cUL

??LVD
