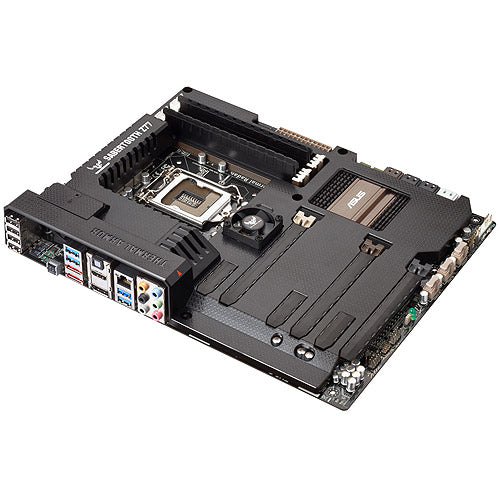

Asus Sabertooth Z77
- Rs.29,700
- Rs.29,700
- Unit price
- per
Please hurry! Only 0 left in stock
- LGA1155 Intel® 3rd/2nd Generation Processors Ready
- TUF Thermal Armor - Total Airflow-Boosting Heat Dissipation
- TUF Dust Defender - Repel the Dust, Expand the Lifespan
- TUF Thermal Radar - Real Time Temp. Detection and Heat Removal
- TUF Components [Choke, Cap. & MOSFET; Certified by Military-standard] - Certified for Tough Duty
- New DIGI+ Power Control - All-New Digital Power Control for both CPU and DRAM
- Windows 8 Ready – Assured Compatibility
Specifications
| CPU | Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® Z77 |
| Memory | 4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz Maximum shared memory of 1696 MB Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| Multi-GPU Support | Supports NVIDIA® Quad-GPU SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports LucidLogix® Virtu™ MVP Technology *1 |
| Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *2 1 x PCIe 2.0 x16 (x4 mode, black) *3 3 x PCIe 2.0 x1 |
| Storage |
Intel® Z77 chipset : 2 x SATA 6Gb/s port(s), brown 4 x SATA 3Gb/s port(s), black Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *4 ASMedia® ASM1061 controller : *5 2 x SATA 6Gb/s port(s), gray 2 x eSATA 6Gb/s port(s), red |
| LAN | Intel® 82579V, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - Blu-ray audio layer Content Protection - Optical S/PDIF out port(s) at back panel |
| USB Ports |
Intel® Z77 chipset : *6 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) ASMedia® ASM1042 controller : *6 2 x USB 3.0 port(s) (2 at back panel, blue) Intel® Z77 chipset : 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board) |
| Special Features |
TUF ENGINE! Power Design : - 8 +4 +2 Digital Phase Power Design - TUF Components (Choke, Cap. & MOSFET; certified by military-standard) - ASUS DIGI+ Power Control Utility Ultimate COOL! Thermal Solution : - TUF Thermal Armor - TUF Thermal Radar Safe & Stable! Guardian Angel : - Dust Defender ASUS Exclusive Features : - USB BIOS Flashback - MemOK! - AI Suite II - USB Charger+ - Anti-Surge - ESD Guards - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost ASUS EZ DIY : - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector |
| Back I/O Ports | 1 x DisplayPort 1 x HDMI 2 x eSATA 6Gb/s 1 x LAN (RJ45) port(s) 4 x USB 3.0 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x USB BIOS Flashback Button(s) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 4 x Optional Fan connector(s) (4 -pin) 2 x Assistant Fan connector(s) (3 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x Clear CMOS jumper(s) |
| Accessories | User's manual Accessory Guide ASUS Q-Shield 2 x SATA 3Gb/s cable(s) 2 x SATA 6Gb/s cable(s) 1 x SLI bridge(s) 1 x Q-connector(s) (2 in 1) 2 x Accessory Fan(s) ( 35 mm ) 1 x TUF Certification card(s) 1 x TUF 5 Year Warranty manual(s) (by region) 1 x TUF Inside sticker(s) 1 x Accessory Package(s): - 1 x 40mm I/O Cover fan lid(s) - 3 x PCIe x16 slot dust cover(s) - 2 x DRAM slot dust cover(s) - 3 x PCIe x1 slot dust cover(s) - 2 x Short fan screw(s) - 4 x Long fan screw(s) - 1 x Adhesive Sponge(s) for 35mm Fan |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Support Disc | Drivers Anti-virus software (OEM version) ASUS Update ASUS Utilities |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Note | *1: LucidLogix Virtu MVP supports Windows 7 operating systems. *2: PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors. *3: The PCIe 2.0 x16 slot shares bandwidth with PCIe 2.0 x1_1 slot, PCIe 2.0 x1_2 slot and PCIe 2.0 x1_3 slot. The PCIe 2.0 x16 slot default setting is in x1 mode. *4: Supports on Intel® Core™ processor family with Windows 7 operating systems. *5: These SATA ports are for data hard drivers only. ATAPI devices are not supported. *6-1: Supports ASUS USB 3.0 Boost UASP Mode. *6-2: The USB 3.0 ports only support Windows® 7 or later versions. *7: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows® Vista operating system. |
