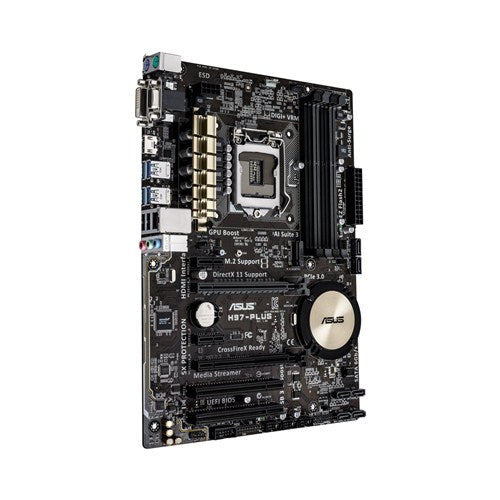

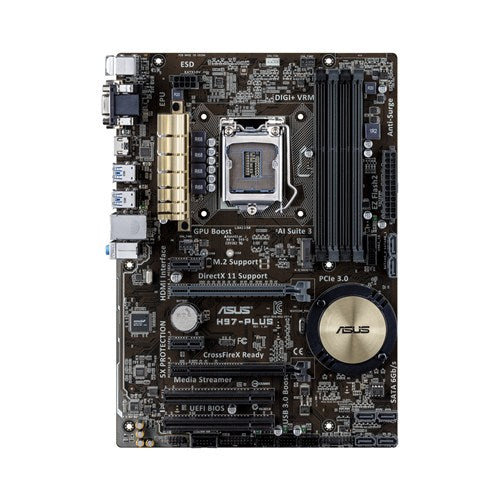

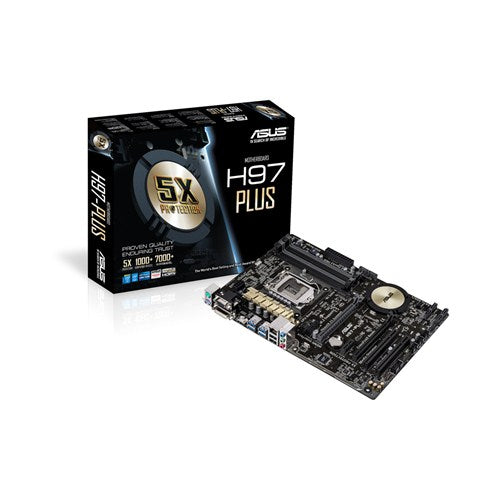

Asus H97-Plus

Buy Asus H97-Plus online for Rs.12500 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Asus products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Featurtes

TMainstream H97 ATX delivers enduring 5X Protection, high-clarity Crystal Sound 2 and M.2 for multitasking and multimedia use

• Proven quality - 5X Protection. 1000+ compatible devices. 7000+ validation hours.

• Crystal Sound 2 - Flawless audio that makes you part of the game

• Speed up your system with lightning-fast 10Gb/s M.2

• Media-acclaimed UEFI BIOS with new EZ Tuning Wizard

• Fan Xpert 2+ - Ultimate cooling and quietness

• ASUS HomeCloud - A digital PC hub perfect for sharing and home theater

Specification

CPU

Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel® H97

Memory

4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 2.0 x16 (max at x4 mode, black) *1
2 x PCIe x1
2 x PCI

Storage

Intel® H97 chipset :

1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*2
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3

LAN

Realtek® 8111GR, 1 x Gigabit LAN

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC featuring Crystal Sound 2*4
- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs

USB Ports

Intel® H97 chipset :

6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)

Intel® H97 chipset :

8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)

Special Features

ASUS 5X Protection :

- ASUS DIGI+ VRM - 4 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating

ASUS EPU :

- EPU

ASUS Exclusive Features :

- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- USB 3.0 Boost
- Disk Unlocker
- Crystal Sound 2

Interactive HomeCloud

- Media Streamer

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+

ASUS EZ DIY :

- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS UEFI BIOS EZ Mode
- Push Notice

ASUS Q-Design :

- ASUS Q-Slot

Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

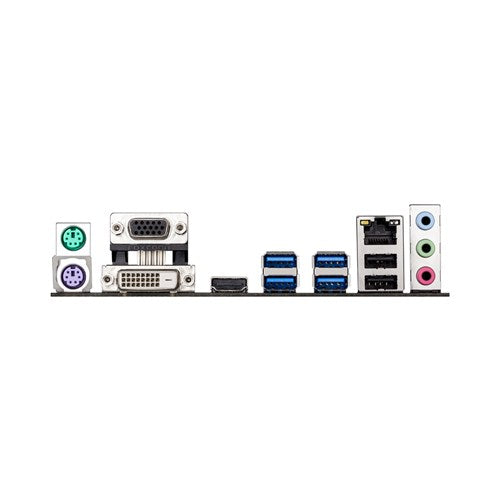

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x M.2 Socket 3 for M Key, type 2260/2280 devices
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)

Accessories

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2,
CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 2.7, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Form Factor

ATX Form Factor
12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )
