ViewSonic VX2770Smh-LED 27" Full HD 1080p

Product Description

ViewSonic’s VX2770Smh-LED features an LED backlit 27" frameless widescreen monitor with up to 40% energy savings compared to a regular 27" monitor. Environmentally friendly mercury-free VX2770Smh-LED offers Full HD 1920x1080 resolution, HDMI and DVI with HDCP and VGA inputs, SRS Premium Sound, external power supply, and 30,000,000:1 MEGA Dynamic Contrast Ratio. The stylish glossy ID and thin profile combine to make it the center piece to your home or office. While the SuperClear IPS panel with wide viewing angles and high contrast ratio delivers extraordinary visual entertainment. A 3 year warranty, the industry’s best pixel performance policy, energy saving Eco mode and Windows 7 certification make VX2770Smh-LED an excellent choice for entertainment and gaming.

What is SuperClear IPS Technology?

ViewSonic VX70 series SuperClear IPS monitors deliver an extraordinary level of visual clarity. IPS (in-plane switching) technology eliminates image distortion and color shifting to ensure true, lifelike color from virtually any viewing angle.

• Brilliant, Lifelike Color: ViewSonic SuperClear IPS monitors deliver amazing, lifelike images in which true colors are beautifully replicated on the screen. The colors you see in real life are accurately depicted on all ViewSonic SuperClear IPS monitors, ensuring high-color accuracy and consistency from screen to print.
• Super Wide Viewing Angles: ViewSonic SuperClear IPS monitors produce true colors and consistent images when viewed from the front, from the sides, from below, and from virtually any other viewing angle. No matter your perspective, you will not have any color shift or changes in contrast ratio when you move the image across the screen or change your viewing angle.

Frameless Design with Edge-to-Edge Glass and Ultra-Slim Bezel

Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. ViewSonic VX70 series SuperClear IPS monitors feature a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With their sleek, eye-catching design, our elegant IPS monitors look as good as they perform.

What is a LED monitor?

The term "LED monitor" generally refers to a monitor with a LCD panel and a LED backlight. A typical LCD monitor uses cold cathode fluorescent lamps (CCFL) as a light source to illuminate the LCD panel. In an LED backlit monitor, white LEDs (Light Emitting Diodes) are used as the light source. Environmentally friendly LED backlights provide the following benefits:

• About 40%* less power consumption compared to traditional CCFL monitor
• 30,000,000:1 MEGA Dynamic Contrast Ratio
• Environmentally friendly mercury-free backlight
• Low EMI (Electro Magnetic Interference)
• Slimmer design
• Weight reduction

Save cash and save the planet

With its mercury-free backlight and low energy consumption, the ENERGY STAR certified VX2770Smh-LED saves your electricity bill. The savings of LED can add up to thousands of dollars saved for large install bases, such as big corporate buildings or schools. The savings can be as dramatic as $20,000 in five years!

sRGB Color Correction Technology Delivers the Most Accurate Color Performance Available

ViewSonic LED monitors embedded sRGB color correction technology reproduce 100% sRGB rich color for color performance matching original input sources without decreasing or leveraging color quality. sRGB ensures all displayed images/videos are as natural as the original sources, displaying real color for captured camera and camcorder content.

Mega Dynamic Contrast Ratio

One of the great features of VX2770Smh-LED is its ability to dim the backlight completely for pure darkness during dark scenes, such as a night shot in a movie. Contrast ratios refer to the ratio of the brightest color to the darkest color. With traditional CCFL backlit displays, contrast ratios are limited to the fluorescent lamp’s ability to dim, in order to reproduce darkness. However, with the LED backlight, each LED has the ability to completely shut-off allowing for a near infinite ratio of black to white contrast. The end result is true blacks that result in greater overall image quality.

Full HD 1080p resolution

The VX2770Smh-LED features a 27" widescreen with 1920x1080 resolution is capable of displaying a native Full HD 1080p image. Today, devices that can display Full HD content output are getting more and more common. However, without a native Full HD display, you will not be able to experience the picture clarity and the details of the 1080p content you view.

Eco-mode for up to 30%* energy savings

ViewSonic’s proprietary Eco-mode function comes standard with the VX2770Smh-LED. When you don’t need all the power the VX2770Smh-LED has to offer, you have the option to reduce the monitor’s brightness, save energy, save the planet and prolong the lamp life. You can select one of the "Optimize" or "Conserve" options and save up to 30% energy. Especially under low ambient light conditions, adjusting the brightness will improve visibility by reducing eye fatigue. Reducing brightness will also prolong the monitor’s lamp life, improving your return on investment.

Key Features:

• Uses 40% less power, without compromising your viewing quality and has mercury-free WLED backlight.
• SuperClear IPS (in-plane switching) panel technology for 178 / 178 degree wide viewing angles, and the most consistent color performance.

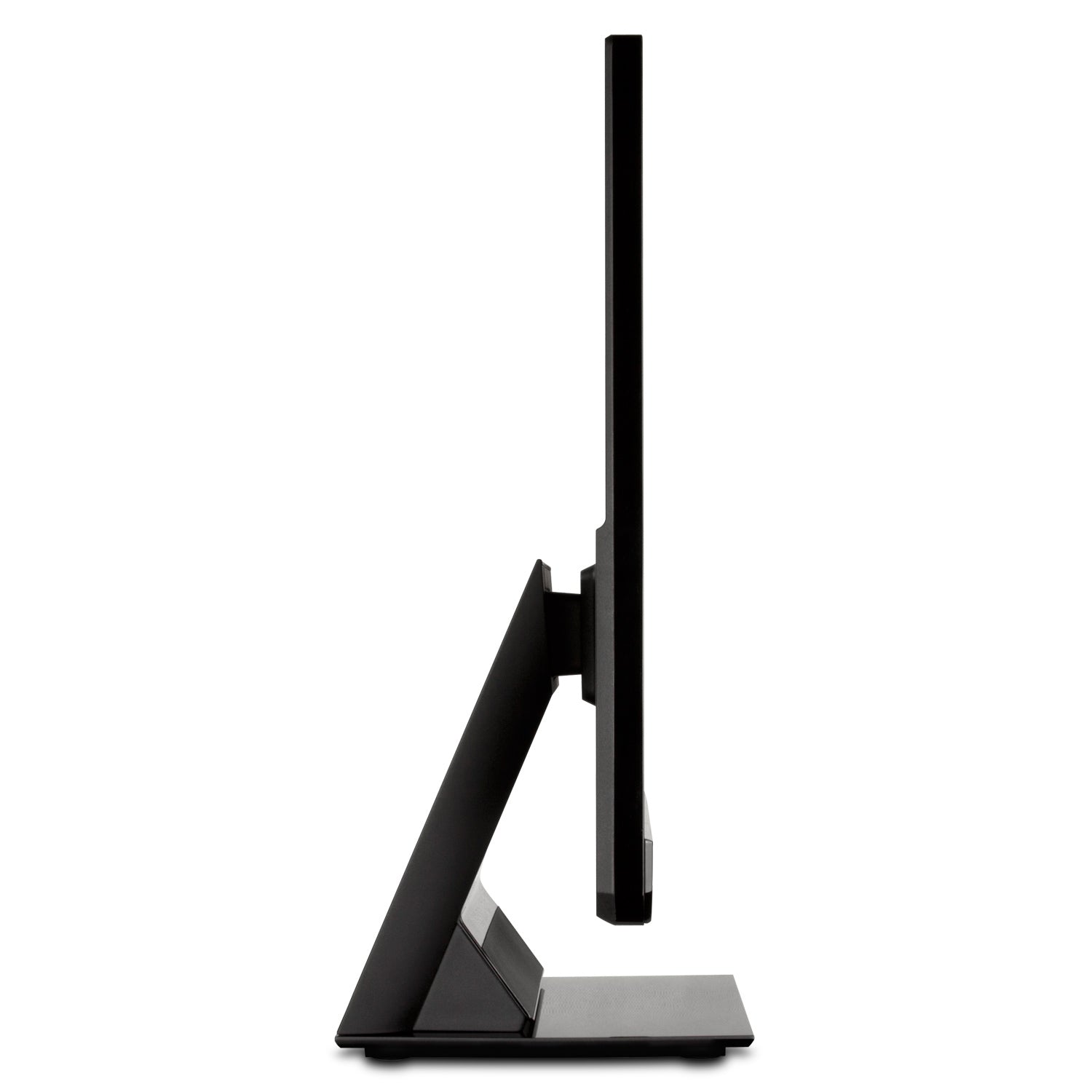

• Sleek frameless design and thin profile with touch sensitive controls.
• Full HD 1080p with 16:9 aspect ratio, achieves perfect image reproduction without distortion.

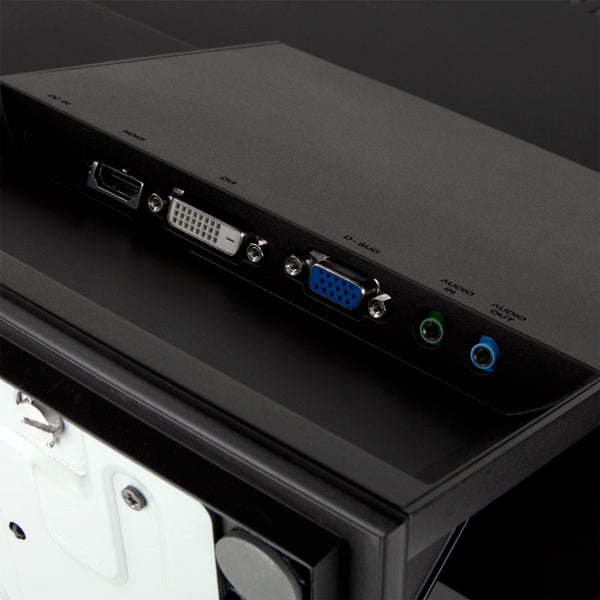

• Connectivity options for Digital HDMI and DVI (with HDCP) and Analog VGA inputs
• 30,000,000:1 MEGA Dynamic Contrast Ratio for true-to-life picture depth and clarity in any room.
• Dual stereo speakers with SRS Premium Sound for a rich multimedia experience.
• Includes LCD Monitor, VGA cable, HDMI cable, audio cable, power cord and adapter, Quick Start Guide, ViewSonic Wizard CD-ROM.

Specifications

LCD

 Type
27” Color Active Matrix IPS TFT LCD

Display Area
23.5" horizontal x 13.2" vertical; 27.0" diagonal

Optimum Resolution
1920x1080 Full HD

Contrast Ratio
1000:1 (typ.); 30M:1 (dynamic)

Viewing Angles
178º horizontal, 178º vertical

Response Time
7ms (GTG)

Light Source
WLED with 30,000 hours (min.)

Brightness
250 cd/m2 (typ.)

Panel Surface
Anti-glare, hard-coating (3H)

Video Input

Analog/Digital
RGB analog (0.7 / 1.0 Vp-p, 75 ohms)/ HDMI / DVI-D (TMDS, 100 ohms)

Frequency
Fh: 24~83kHz, Fv: 50~76Hz

Sync
Separate Sync

Compatibility

PC

PC compatibles (from VGA up to 1920x1080 non-interlaced)

Mac

Power Mac up to 1920x1080

Connector

Analog/Digital
15-pin mini D-sub (VGA) / HDMI (with HDCP) DVI-D (with HDCP)

USB
N/A

Audio Input
3.5mm mini-jack

Headphone
3.5mm mini-jack

Power
External power adapter

Audio

Speakers

Built In Speakers

Power

Voltage
AC 100–240V (universal), 50 / 60Hz

Consumption
30W (typ)

Eco Mode
26W (Optimize) / 22W (Conserve)

Power Save Mode
≤ 1W

CONTROLS

Basic
Power, 1, 2, up, down

OnView®
N/A

OSD
Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB, DVI-D, HDMI), Color Adjust (sRGB, Bluish, Cool, Native, Warm, User Color [R,G,B]), Audio Adjust (volume, mute, audio input), Information, Manual Image Adjust (H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio, Overscan, ECO-mode), Setup Menu (Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Sleep, Power Indicator), Memory Recall

Operating Conditions

Temperature

32–104º F (0–40º C)

Humidity

20–90% (non-condensing)

Dimensions

Physical

622.29mm (width) x 459.3mm (height) x 192.5mm (depth)

WEIGHT

Gross
16.5 lb. / 7.5 kg

Net With Stand
11.0 lb. / 5.0 kg

Net Without Stand
N/A

Ergonomics

Tilt

Forward 5º, Back 20º

Vesa Mount

N/A

Regulations

CE,CB, BSMI, SASO, C-tick, e-standby, KC, UL/cUL, FCC-B (including ICES003), NOM, GOST-R/Hygienic, UkrSEPRO, Erp, CCC, China Energy, EPEAT Silver, WEEE, RoHS, SVHC list
