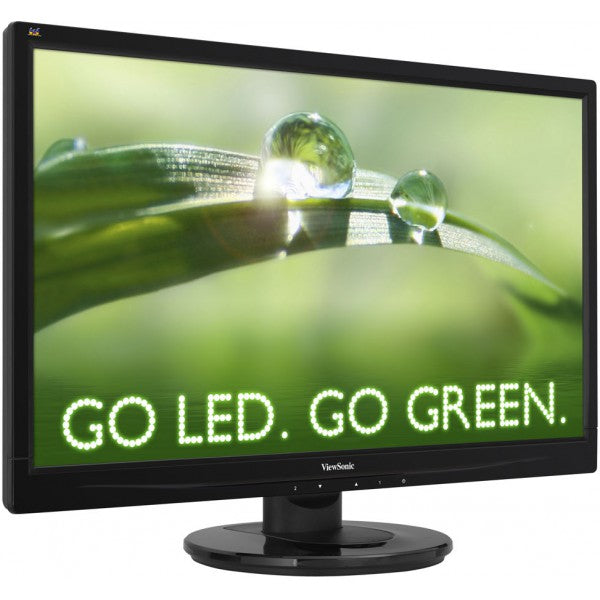

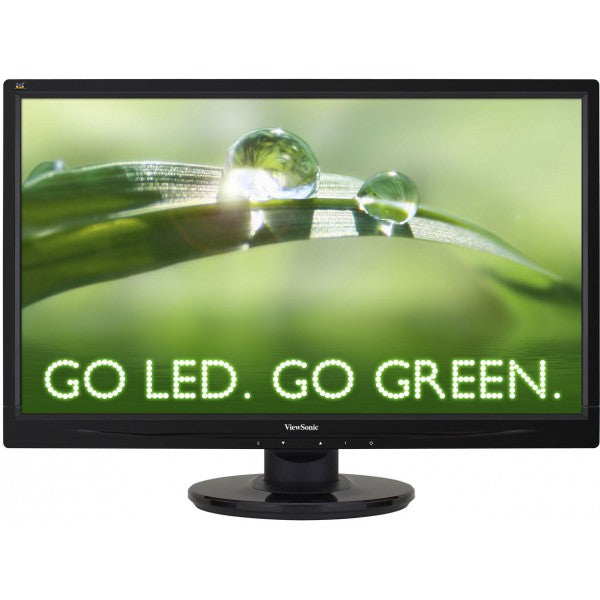

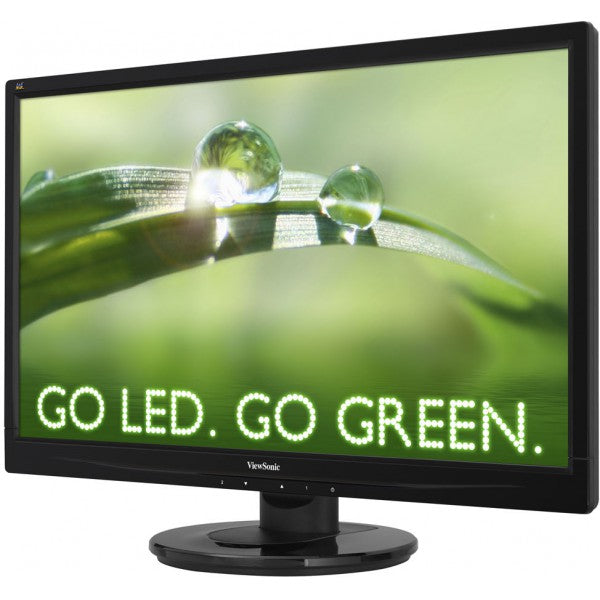

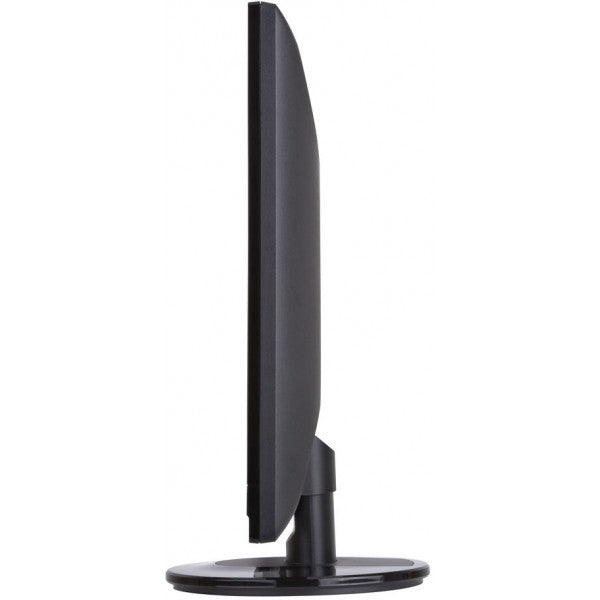

ViewSonic VA2046m 19.5" LED Display

Features

The ViewSonic VA2046m-LED is a 20” (19.5 Vis) widescreen monitor with an LED backlight and glossy, thin-bezel design ideal for use in the home or at the office. With 1600x900 resolution and a 10M:1 dynamic contrast ratio, the VA2046m-LED delivers stunning brightness and contrast, while a quick 5ms response time ensures crisp pictures and smooth playback. As a complete multimedia package, the display also includes a pair of integrated speakers. VGA and DVI inputs provide flexible and convenient connectivity, while a VESA-mountable design offers additional mount flexibility. With an efficient LED backlight and energy-saving Eco mode, the VA2046m-LED is an environmentally friendly display choice.

High Resolution for Superior Pixel Performance

A superior dynamic contrast ratio of 10,000,000:1 better defines the relationship between the darkest and brightest colors, ensuring all displayed images are rich and detailed. Combined with an extremely fast 5ms response time, every motion is naturally and accurately reproduced without any blurs.

Energy-Saving Eco-Mode

ViewSonic's proprietary Eco-mode function gives you the choice to optimize (85%) or conserve (65%) energy, thus reducing display brightness and conserving energy by up to 30%. Especially in low ambient light, Eco-mode adjusts brightness and improves visibility while reducing eye fatigue and prolonging the display's lamp life.

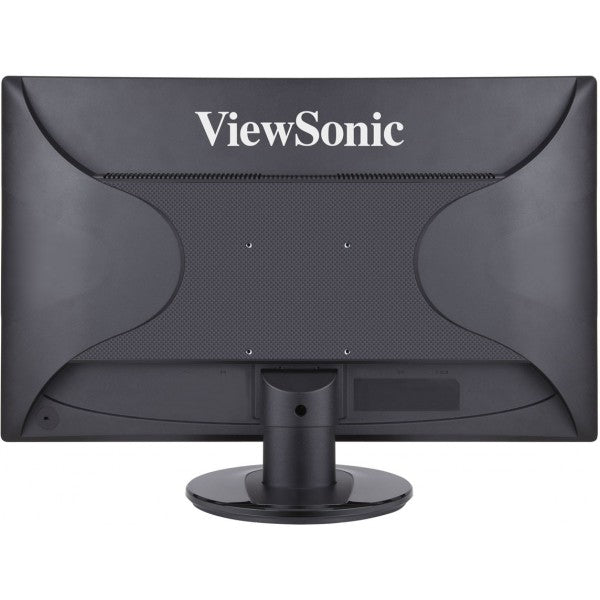

VESA Mount and Kensington Security Lock Compliant

Designed for use in various settings, the VA2046m-LED’s robust design makes it safe and secure wherever it is installed. That’s because it comes with a Kensington security lock slot and is VESA wall mount compliant – making it the perfect monitor for all office and public settings.

Windows® 8 certified compliance

Windows® 8 Certified, the VA2046m-LED provides the most updated Windows® 8 experience without any compatibility issues. Experience the all-new Windows 8 operating system with ViewSonic's VA2046m-LED display.

Specifications

LCD

Type 20" Wide

Display Area 19.5 inch

Optimum Resolution 1600 x 900

Contrast Ratio 600:1 (typical), 10,000,000:1 (DCR)

Brightness 200 cd/m² (typ)

Viewing Angles 90º horizontal, 65º vertical

Response Time 5ms

Panel Surface Anti-glare Type, 3H Hardness

Light Source 40,000hr (min.)

Video Input

Analog RGB Analog (75Ω, 0.7 / 1.0 Vp-p)

Digital DVI-D (TMDS, 100Ω)

Frequency Fh: 24-82KHz; Fv: 50-75Hz

Sync Separate Sync

Compatibility

PC

VGA up to 1600 x 900 Non-interlaced

Mac

MAC up to 1600 x 900

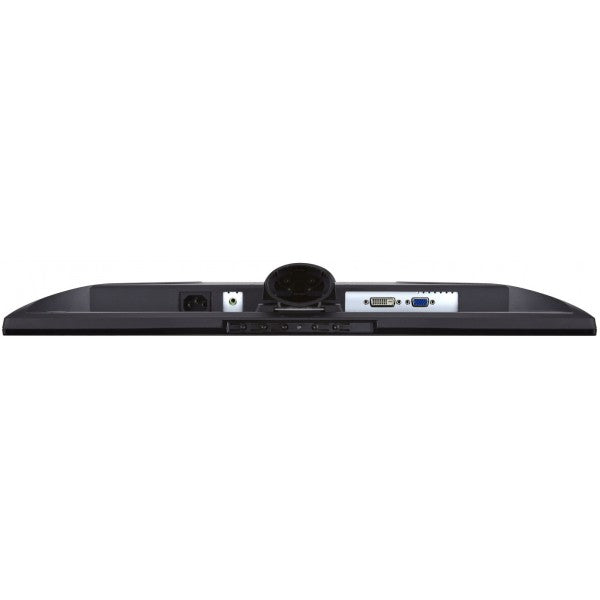

Connector

Analog

RGB Analog (75Ω, 0.7 / 1.0 Vp-p)

Digital

DVI-D x 1

Audio

3.5mm x 1

Power

InternalPower Board, 3-pin Plug (CEE22) *1

Audio

Speakers

2W x 2

Power

Voltage

AC 100 - 240V (Universal); 50 / 60Hz

Consumption

18W; Optimize: 14W; Conserve: 12W

Operating Conditions

Temperature

32°F to 104°F (0°C to 40°C)

Humidity

10% to 90% (No Condensation)

Dimensions

Physical

478.2mm (width) x 360.2mm (height) x 197.6mm (depth)

Weight

Net

3.0 kg

Regulations

CB, WEEE, RoHS, Vista Premium, Windows 8 , Windows 7, UL, cUL, FCC-B, TUV-S, NOM, CE, GOST-R+Hygienic, SASO, Ukraine, CCC, CEL, BSMI, PSB, C-TICK, KC, e-Standby

Wall Mount

100mm x 100mm
