ViewSonic Touch LED 16 TD1630-3

Buy ViewSonic Touch LED 16 TD1630-3 online at Low Price. Buy complete range of LEDs on Vmart.pk, We Offer home delivery all over Pakistan.

Ooverview

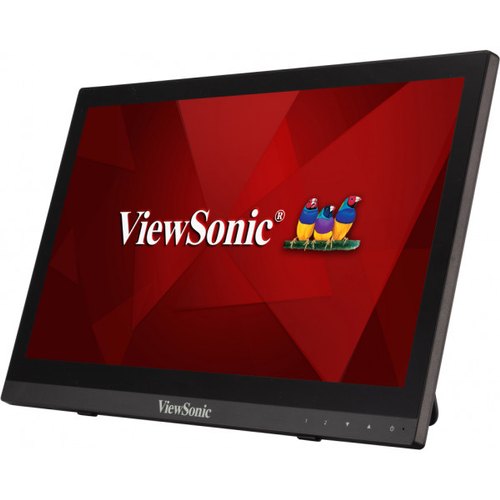

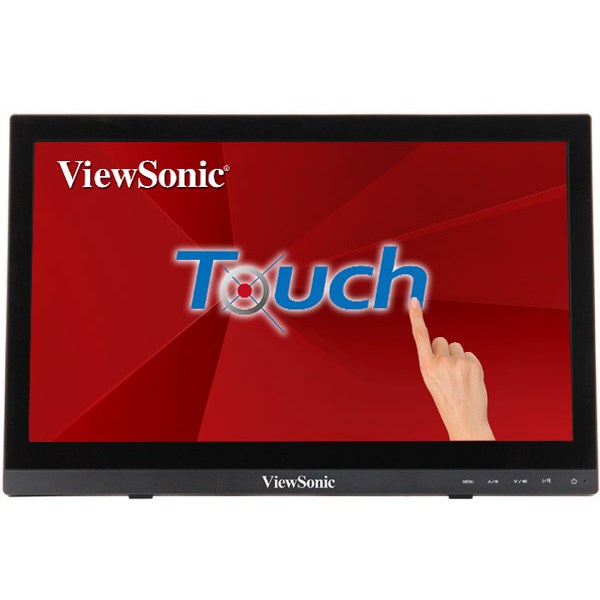

The ViewSonic TD1630-3 is a 16 (15.6 viewable) display with 10-point multi-touch functionality. With an advanced ergonomic design, the TD1630-3 can tilt or lay flat to give users maximum comfort. Delivering touchscreen versatility, this display offers fantastic flexibility for retail or business settings, while VGA and HDMI inputs provide ample connectivity. Compatibility with a wide range of operating systems, including Windows 10 and Linux versions*, along with dual integrated speakers, make this intuitive touchscreen a highly accurate, ultra-responsive touch experience that is ideal for interactivity in a retail or business settings.

10-Point Projected Capacitive Touch

Touch screens with projected capacitive touch can recognise up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.

Advanced Ergonomic Stand Design

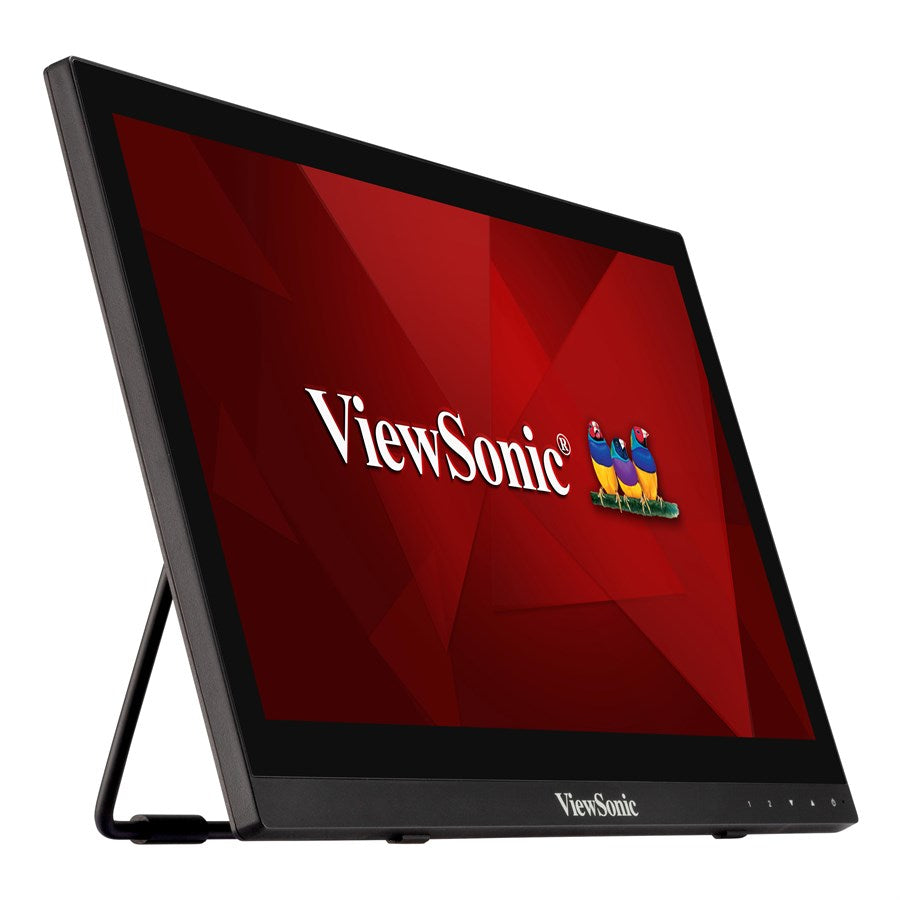

A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.

Versatile Connectivity

HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.

Cross-platform Compatibility

Cross compatibility with a wide range of operating systems including Windows 10 and certain Linux versions.

Durable, Scratch-resistant Screen

This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.

Dual Integrated Speakers

Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

Enhanced Viewing Comfort

Blue Light Filter helps to eliminate eye strain from extended viewing periods.

VESA-compatible mount

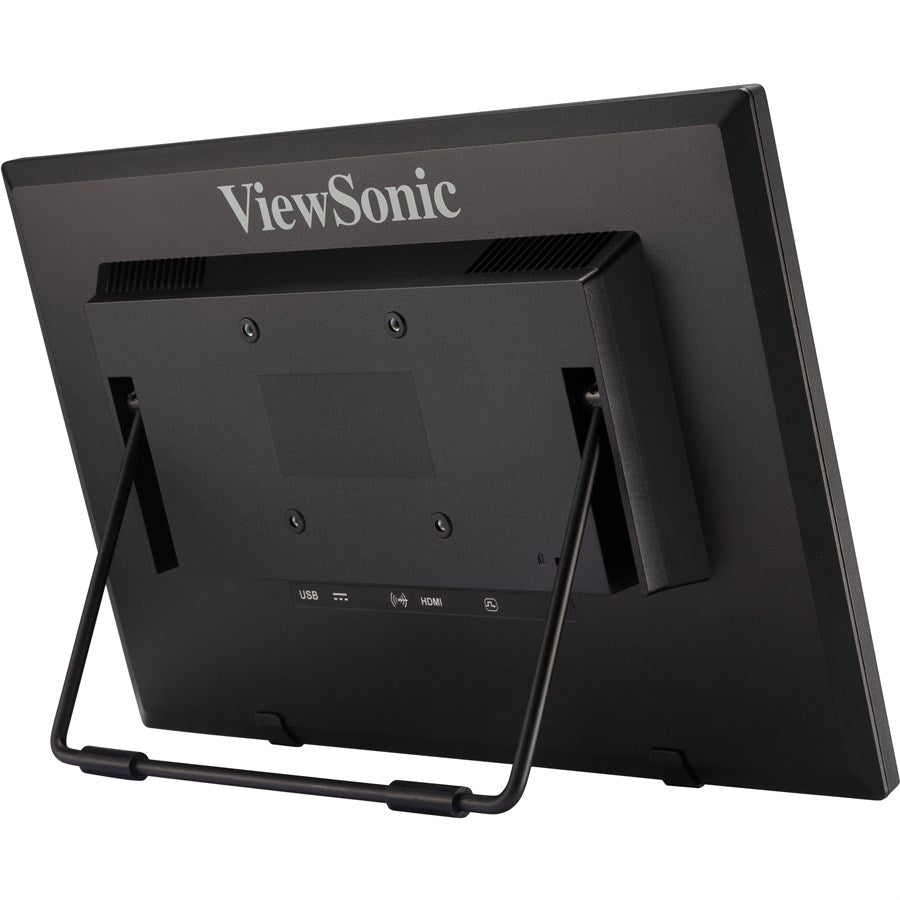

Conveniently mount the monitor to your liking by utilising its VESA compatible mount design.

Specifications DISPLAY Monitor Size:

• 16W (15.6 Viewable)

Panel Technology:

• TN TFT LCD

Resolution:

• HD 1366 x 768

Display Area:

• 344.23mm (H) x 193.54mm (V)

Aspect Ratio:

• 16:9

Brightness:

• 220 cd/m2 (Typ) w/o touch module, 190 cd/m2 (Typ) w/ touch module

Contrast Ratio:

•  500:1 (Typ)

Dynamic Contrast Ratio:

• 10,000,000:1

Viewing Angles:

• 90 degrees / 60 degrees (Typ)

Response Time:

• 12ms

Colours:

• 262K colours (6-bit)

Colour Gamut:

• 45% of NTSC (Typ)

Panel Surface:

• ≧7H, Haze < 2%

INPUT SIGNAL Frequency:

•  Fh = 30 ~ 61KHz ; Fv = 56 ~ 75Hz

Sync:

• Separate Sync, TMDS

COMPATIBILITY PC:

• Windows 7/8/10 tested

Mac:

• Display: Power Mac tested, Touch Module:iOS not support

CONNECTOR

• Input: VGA x 1
• HDMI x 1 (v1.4 compatible)
• Audio in x1 (3.5mm plug)

AUDIO Speaker:

• 1W x 2

USB Upstream:

• Type B x 1

POWER Power:

• 5.5 x 2.1 x 11 mm DC connector

Voltage:

• AC 100-240V (Universal); 50/60Hz

Consumption:

• 5.5W

Optimize:

• 4.9W

Conserve:

• 4.3W

SPECIAL FEATURES Eye Care:

• Blue light filter

ERGONOMICS Tilt:

• 15 ~ 50 degrees

WALL MOUNT VESA:

• 75mm x 75mm

OPERATING CONDITIONS Temperature (º F / º C):

• 32°F to 104°F (0°C to 40°C)

Humidity:

• 20% to 85% (no condensation)

DIMENSIONS (W X H X D) (MM) Physical with stand (mm):

• 379.24mm (W) x 247.12mm (H) x 37.15mm (D) (@0 degree)

Physical without stand (mm):

• 379.24mm (W) x 247.12mm (H) x 37.15mm (D)

Packaging (mm):

• 453mm (W) x 389mm (H) x 86mm (D)

WEIGHT Net with stand:

• 1.32kg

Net without stand:

• 1.32kg

Gross:

• 2.5kg

REGULATIONS VSI:

• RCM, GEMS, BIS

PACKAGE CONTENTS

• LCD Display
• 40W AC/DC Adapter (1.2m)
• Power Cable (1.5m)
• VGA Cable (1.5m)
• USB2.0 Cable (1.8m)
• Audio Cable (1.8m)
• Quick Start Guide
