ViewSonic TD2421 24" Full HD Optical Touch Monitor

Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic® TD2421 dual-point optical touch monitor lets users execute two-finger pinches, taps, and swipes for fast and intuitive navigation. With Full HD 1920x1080 resolution, 3000:1 static contrast ratio, and SuperClear® MVA technology, the TD2421 delivers stunning brightness and contrast with amazing screen performance at nearly any viewing angle. Flexible connectivity options include HDMI, VGA, DVI, and USB ports, and a VESA-mountable design offers additional convenience for use as a wall-mounted display. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience.

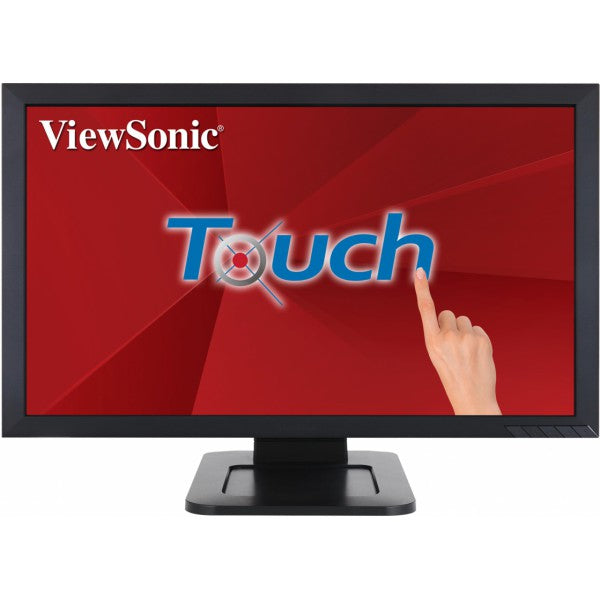

Touch screens with dual-point optical touch can recognize two points of simultaneous contact, allowing two-finger gestures such as zoom in/out, rotations, and two-finger taps. Optical touch does not require a conductive object for touch recognition, so it is extremely useful in gloved environments such as hospitals and dental offices, or for use with interactive styluses.

Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear® MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether while working, gaming, or enjoying the latest in multimedia entertainment.

Compatibility with Windows operating systems, including Windows 7, 8 and 10.

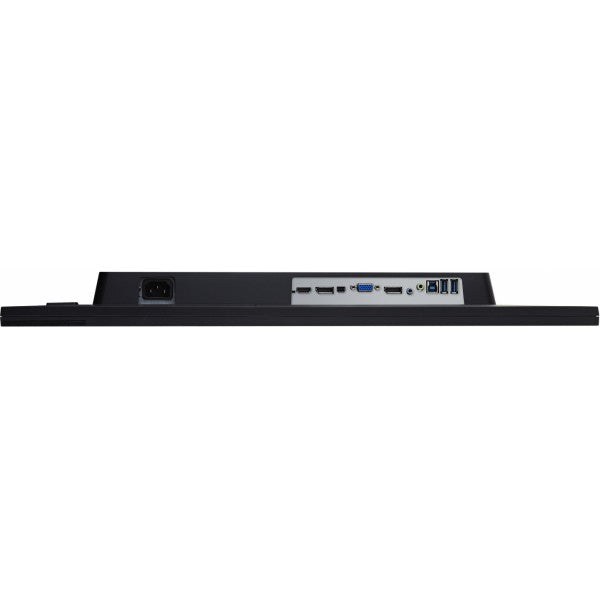

HDMI, USB2.0, DVI and VGA inputs give you the freedom to connect your monitor to a variety of devices.

Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

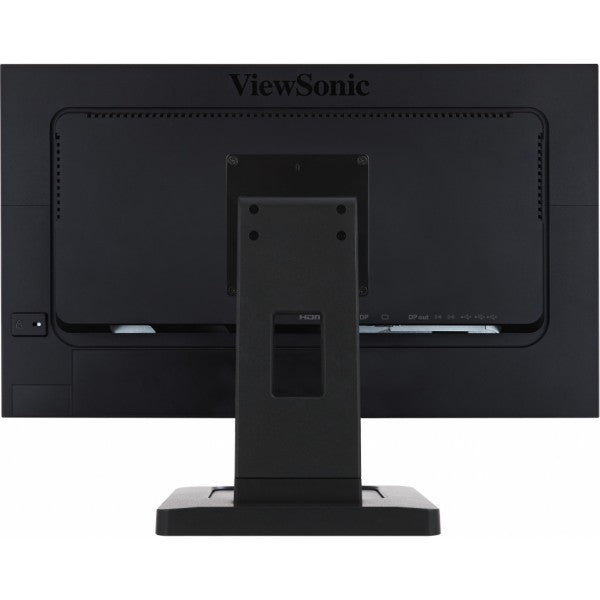

Mount the monitor as you see fit using its convenient VESA-compatible mount design.

Specifications

23.6" (16:9)

VA

23.547" (521.28x293.22mm)

1920x1080 (Full HD)

250 cd/m2 (Typ.)

3000 :1 (Typ.) 2000:1 (Min)

50,000,000 :1

178°(H) / 178° (V)

5ms (GTGavg) in OD

Tempered Glass ≧ 7H

40,000 Hrs (Min.)

16.7 M

VGA

DVI / HDMI

Separate Sync / Composite Sync / Sync on Green

24 ~82 kHz / 50 ~75 Hz

1920x1080

1920x1080

VGA x1

DVI x1/ HDMI Ver 1.4 x1

3.5mm jack x1

3.5mm jack x1

Up stream x1, Down stream USB 2.0 x2

Internal Power Board

2W x2

AC 100-240V (Universal); 50/60 Hz

16.5W; optimize : 13.5W; conserve : 11.5W

≦0.5 W

22° ~ -6°

32°F to 104°F (0°C to 40°C)

20% to 90% (no condensation)

571.08 x 392.2 x 240 mm

5.163kg

cULus, FCC, ICES003, Energy Star 7.0, EPEAT Silver, UL-MX-CoC, Mexico Energy, CE, CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE, EAC, BSMI, PSB, RCM, MEPS, CCC, China RoHS, CEL Level 1

100x100 mm
