ViewSonic TD2220-2 22" FHD Multi-Touch Monitor

Features

The 22" (21.5" viewable) ViewSonic® TD2220-2 is a multi-touch Full HD LED backlit monitor with 1920x1080 resolution, integrated speakers, DVI & VGA inputs and VESA mountable design. It has 20,000,000:1 MEGA Dynamic Contrast Ratio for sharp crisp images, and Eco-mode for up to 40%* energy savings come standard in the new 22" (21.5" viewable) offering. Perfect for both commercial and consumer applications, the TD2220-2 supports the USB HID Touch driver and is compatible with Windows® 8. The TD2220-2 is a one-stop solution for your multitouch monitor needs.

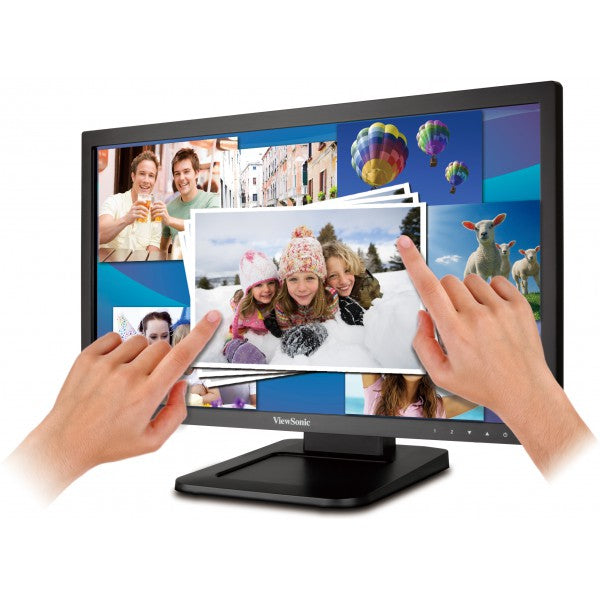

Multi-touch Screen with 8H Surface Hardness

Simply touch, drag, resize and manipulate, photos, documents or web pages, just like on your favorite mobile devices! 8H scratch resistant surface hardness ensures a consistent high quality touch experience and durability.

Full HD 1080p Display with 1920x1080 Resolution

The 22" (21.5" viewable) Full HD monitor supports imaging intensive commercial applications, video and image editing and entertainment. 20,000,000:1 MEGA Dynamic Contrast Ratio provides a crisp image with high level details.

Full HD 1080p for superlative pixel performance

The TD2220 features a Full HD 1920 x 1080p resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether it be for working, gaming, or enjoying the latest in multimedia entertainments. A 16:9 widescreen ratio minimizes eye fatigue even after hours of viewing and is perfectly compatible with multi-window viewing without toggling.

OptiSync digital/analog inputs expand your connectivity

The TD2220-2 supports Windows® 8 touch function and boasts USB HID (Human Interface Device) for plug-and-play. The TD2220-2 can be connected through USB for instant two-point touch operation and for experiencing easy navigation through intuitive touch operation. Two USB ports for additional connectivity for peripherals and electronic devices. Multi-mode input technology supports both digital (DVI) and analog (VGA) signals for compatibility and configuration flexibility.

ENERGY STAR® and EPEAT Silver certified

The TD2220-2 is environmentally sound with Energy-saving LED backlight and Eco-mode. You can save up to 40%* in your energy cost comparing to a regular 22" monitor.

Specifications

LCD

Type 21.5" Wide

Display Area 21.5 inch

Optimum Resolution 1920x1080

Contrast Ratio 1,000:1 (typical), 20,000,000 : 1 (DCR)

Brightness 200 cd/m2 (typ)

Viewing Angles 170° / 160° (typ.)

Response Time 5ms

Panel Surface 8H Hardness

Light Source 40,000 Hrs (Min.)

Video Input

Analog RGB Analog (75Ω, 0.7 / 1.0 Vp-p)

Digital DVI-D (TMDS, 100Ω)

Frequency Fh: 24-83KHz; Fv: 50-76Hz

Sync Separate Sync / Composite Sync / SOG

Compatibility

PC

VGA up to 1920 x 1080

Mac

MAC up to 1920 x 1080 (Touch function not compatible)

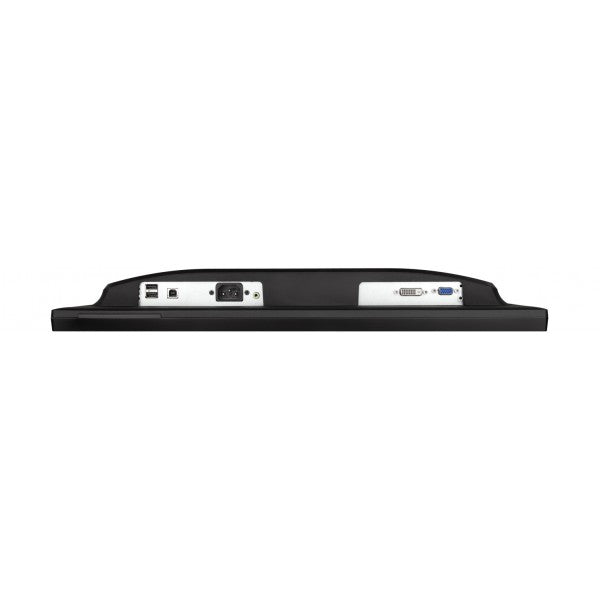

Connector

Analog D-sub *1

Digital DVI *1

USB

Up Stream: Type B *1
Down Stream: Type A *2

Power

InternalPower Board, 3-pin Plug (CEE22) *1

Power

Voltage AC 100–240V (universal), 50 / 60Hz

Consumption

(ECO Mode)Standard:26W; Optimize: 21W; Conserve: 18W

Operating Conditions

Temperature 0° ~ 40° C / 32° ~ 104° F

Humidity 20%-90% (non-condensing)

Dimensions

Physical 511mm (width) x 365mm (height) x 240mm (depth)

Weight

Net 4.9 kg

Regulations

CE,CB, BSMI, PSB, SASO, C-tick, e-standby, KC, UL/cUL, FCC-B (including ICES003), UL CoC, Mexico Energy, GOST-R/Hygienic, UkrSEPRO, TCO 5.2, Erp, CCC, China Energy, ENERGY STAR®, EPEAT Silver, WEEE, RoHS, SVHC list

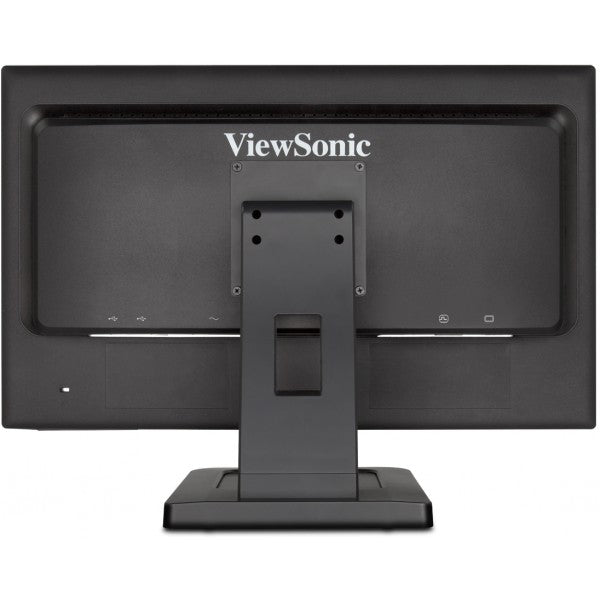

Wall Mount 100mm x 100mm

Warranty

1 year local card warranty
