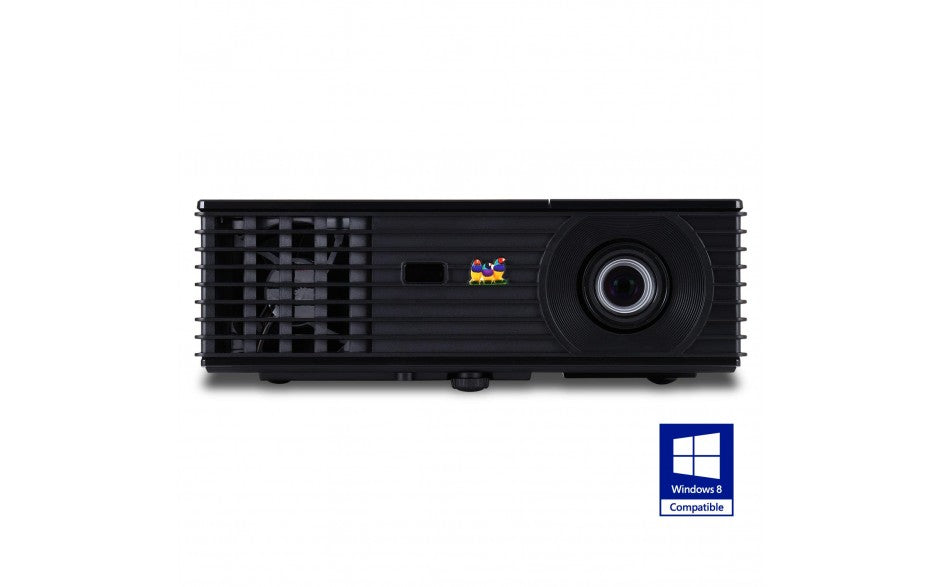

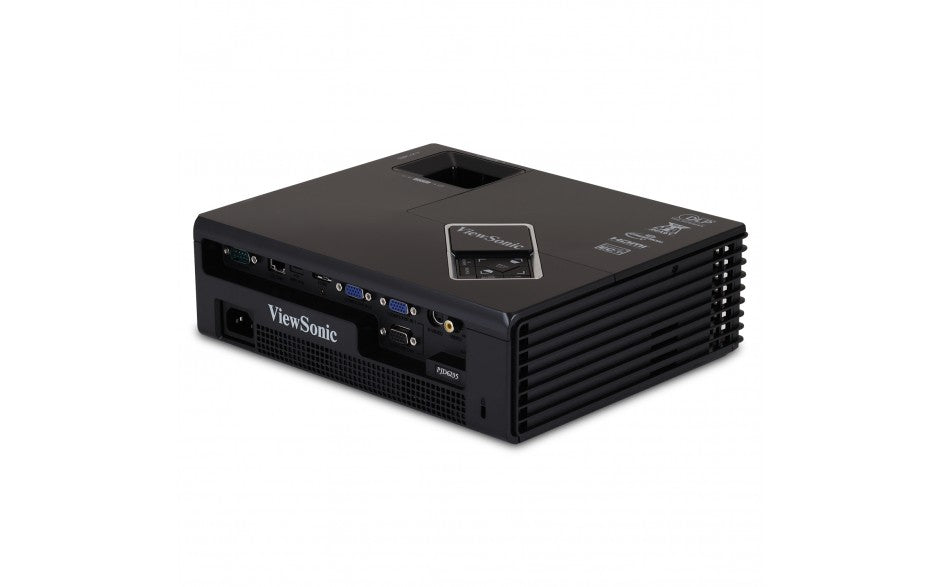

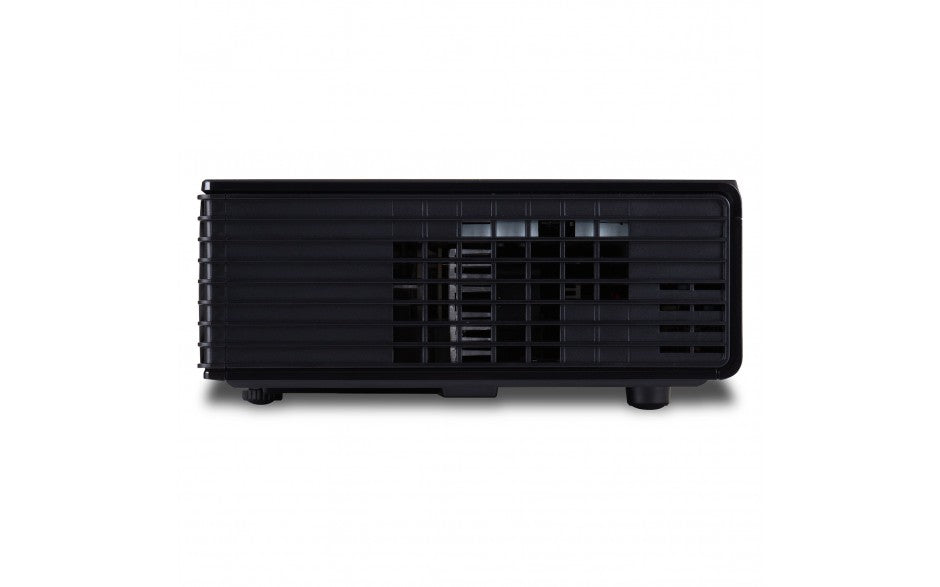

ViewSonic PJD6243 3200 Lumens DLP Projector

Description

The ViewSonic PJD6235 is an affordable networkable XGA DLP projector that delivers bright images in rooms that have little to low ambient light. Ideal for classroom and corporate LAN environments, the PJD6235 is equipped with Crestron LAN controller—making it easy for IT admin to remotely control and manage multiple projectors from their workstations. Certified with AMX Device Discovery, the PJD6235 easily integrates into any size campus or enterprise. Built with BrilliantColor technology, this projector produces vibrant colors, while 3000 ANSI lumens and 15000:1 contrast ratio deliver stunning, razor-sharp images. With the latest HDMI, the PJD6235 can now display 3D images from 3D Blu-ray players. A filter-less design and DynamicEco technology reduces brightness by 70% when not in use – providing for virtually zero maintenance and a longer product life. The PJD6235 is the perfect projector for both classroom and corporate settings.

Key Features

•  Extensive Connectivity Options with HDMI
• Network Management
• Filter-Less Design
• Reliable Picture Quality

General

Regulations
CB, UL/cUL, FCC (including ICES-003), NOM, KC, UL-Argentina, PSB, C-tick, SASO, CE, GOST-R, CCC, CECP, RoHS, TUV-GS, Ukraine, WEEE

PACKAGE CONTENTS

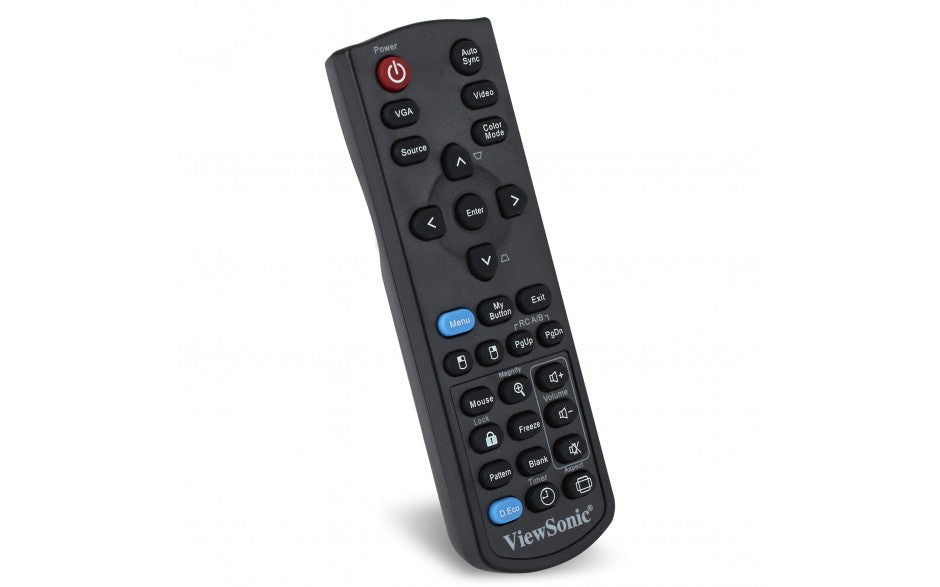

PJD6235 projector, power cable, VGA cable, remote control with batteries, Quick Start Guide, ViewSonic Wizard DVD (with User Guide).

Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.

Display

Type
0.55" Digital Micromirror Device (DLP™)

Throw Distance
3.0 – 37.2 ft. / 0.9 – 11.3 m

Throw Ratio
1.86~2.04:1

Type
DLP

Resolution
1024 x 768

Lens
1.1x Manual optical zoom / manual optical focus

Keystone
Vertical digital keystone correction (+/- 40º)

Display Size
24 – 300 in. / 0.6 – 7.6 m

Aspect Ratio
4:3 (native)

Lamp (watt)
190

Lamp Life, Normal (hours)
4500

Lamp Life, Dynamic Eco-Mode (hours)
10000

Brightness (ANSI Lumens)
3,000

spec_dynamic_contrast_ratio_monitor
15000:01:00

Color Depth
30 bits, 1.07B Color (10+10+10)

Color Wheel
6-seg RGBCYW

Color Wheel RPM
7200

Input Signal

Frequency Horizontal
31–100KHz

Frequency Vertical
24–120Hz

Compatibility

PC Resolution (max)
1600 x 1200

Mac® Resolution (max)
1600 x 1200

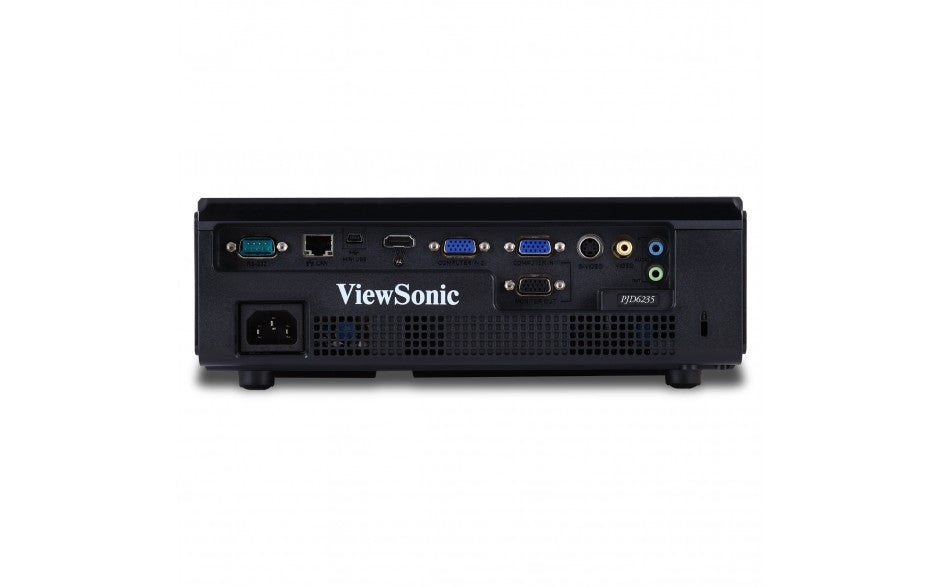

Connector

Ethernet LAN (RJ45)
1

3.5mm Audio Out
1

3.5mm Audio In
1

HDMI
1

VGA In
2

VGA Out
1

Composite RCA Video In
1

Component Support
2 (Shared with VGA)

S-Video In
1

Mini USB
1

Audio

Internal Speaker(s)
2W

Power

Voltage
100~240VAC (Auto Switching), 50/60Hz (universal)

Consumption (typical)
240W

Stand-by
<0.5W

Controls

Physical Controls

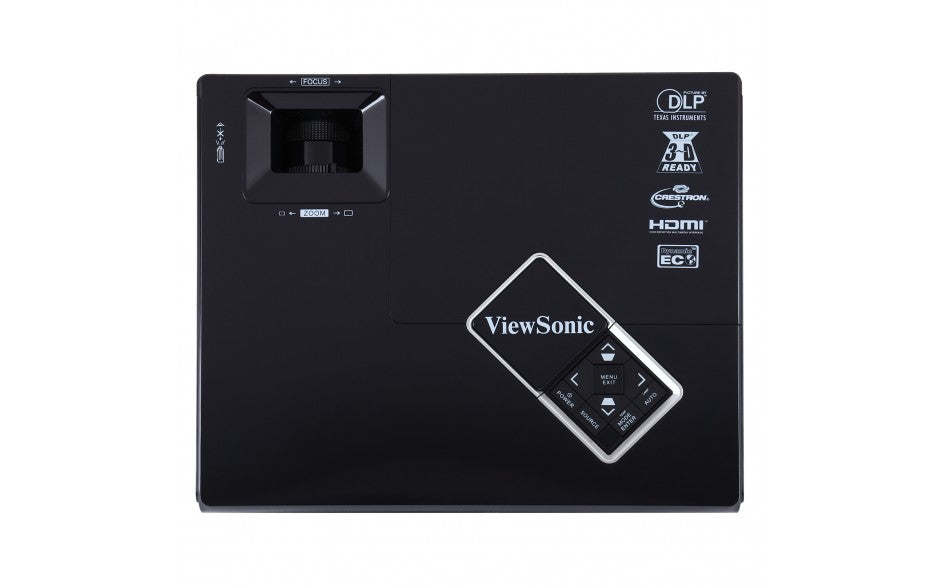

Power, keystone/arrow keys, left, menu/exit, right, source, mode/enter, auto

On Screen Display
Display, Picture, Source, System Setup (Basic), System Setup (Advanced), Information (See user guide for full OSD functionality)

Operating Conditions
Temperature
32ºF–104ºF (0ºC–40ºC)

Humidity (non-condensing)
10%–90%

Additional Hardware

Kensington Lock Slot
1

Weight (imperial)

Gross (lbs)
7.5

Net (lbs)
4.6

Weight (metric)

Gross (kg)
3.4

Net (kg)
2.1

Dimensions (metric) (wxhxd)

Packaging (mm)
360 x 325 x 188

Physical (mm)
268 x 84.4 x 221

Dimensions (imperial) (wxhxd)

Packaging (in.)
14.2 x 12.8 x 7.4

Physical (in.)
10.5 x 3.3 x 8.7
