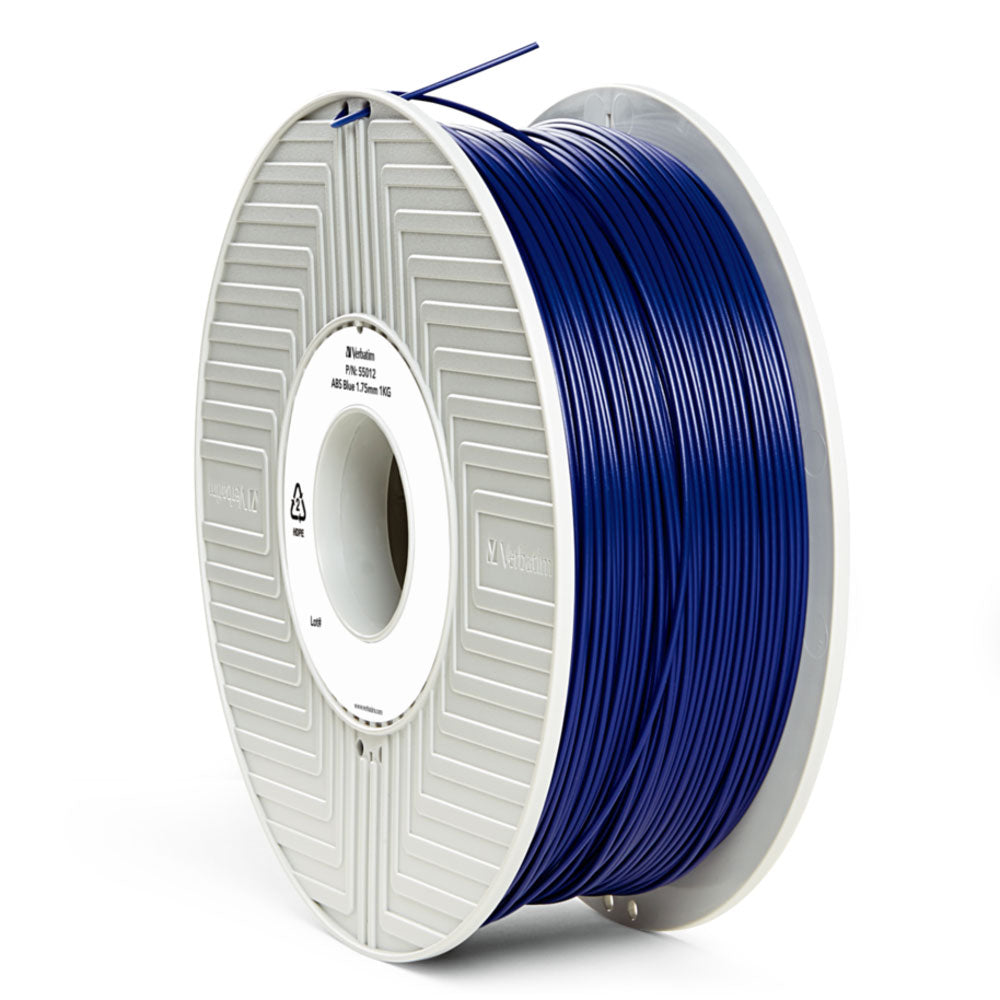

Verbatim ABS 3D Filament - 1.75mm 1kg - Blue

A popular, highly durable filament with a glossy, smooth finish. ABS has a high melting temperature compared to other materials available for 3D printing, making it well suited for applications where heat resistance is important such as concept modelling for the building, electrical and automotive industries. Verbatim ABS is made to a unique Mitsubishi Chemical recipe which ensures high quality standards.

High performance Acrylonitrile Butadiene Styrene (ABS) for material extrusion

High rigidity, high gloss, medium impact strength

Resistant to grease

Good post-printing workability

Strong odour during printing

Main applications: Concept modelling for building, electrical, automotive industry etc. Non-critical parts such as enclosures

Made in Japan

Specifications

Diameter accuracy: 1.75 ± 0.05 mm
Material net weight: 1.00 kg
Gross weight: 1.5
Filament length: 396 m
Density: 1.05 g/cm3
Flexural strength: 76 MPa
Flexural modulus: 2200 MPa
Impact strength (Charpy): 21 KJ/m2
Molding shrinkage: 0.3 – 0.7 %
Tensile yield: 47 MPa
Tensile elongation: 30 %

Spool Dimensions
Spool diameter: 200 mm
Spool depth: 72 mm
Hub diameter: 102 mm
Hub hole diameter: 51 mm

Recommended Printer Set Up
Extrusion temperature: 220-240 °C
Bed temperature: 80-100 °C
Printing speed: 30 mm/s

* Closest pantone colour
