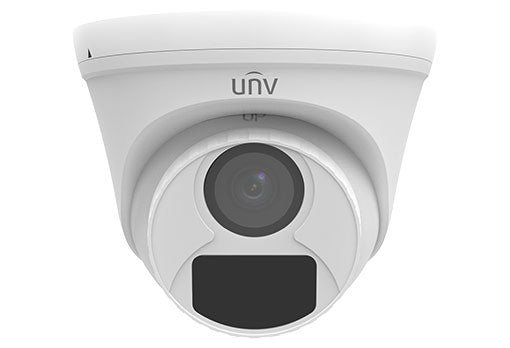

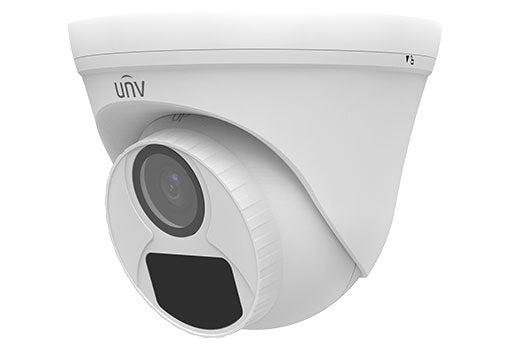

Uniview UAC-T115-F28 5MP Fixed IR Turret Analog Camera

Buy Uniview UAC-T115-F28 5MP Fixed IR Turret Analog Camera online at Rs. 6190. Buy complete range of CCTV Camera on Vmart.pk We Offer home delivery all over Pakistan.

5MP high quality image

TVI/AHD/CVI/CVBS

IR-cut filter with auto switch (ICR)

Supports 180° horizontal flip, 180° vertical flip

OSD configuration menu, easy to operate

IP67 waterproof and dustproof design, high reliability

OSD configuration menu in 11 languages

3-Axis

Sensor

Pixel 5MP

Size 1/2.7"

Minimum illumination 0.02 lux(F2.0, AGC ON)

0 lux (IR on)

Lens

Lens 2.8mm

Lens mount M12

Angle of view H: 102.2° V: 53.9° D: 124.8°

Illuminator

Illuminator One IR illuminator

Illumination distance 20m

Lifetime ≥60,000 hours

Video

Resolution 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps:

2592(H)×1944(V)

4MP: 2560(H)×1440(V)

2MP: 1920(H)×1080(V)

Frame rate TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps,

1080P@25fps

AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVBS: PAL, NTSC

Shutter time PAL: 1/25s-1/50000s

NTSC: 1/30s–1/50000s


Exposure mode 4 modes: Global (default), BLC, HLC, DWDR

Day/Night 3 modes: Auto (default), Day, Night

Digital noise reduction 2D

White balance Two modes: Auto (default), Manual

WDR DWDR

Smart IR Support

Flip Supports 180° horizontal flip, 180° vertical flip.

Interface

Power 5.5mm power interface

Video output BNC, supports TVI/AHD/CVI/CVBS

Operating environment

Temperature -30℃ to 60℃(-22℉ to 140℉)

Humidity ≤95% (RH, non-condensing)

Surge protection 4KV

General

Power DC 12V(±25%), with reverse polarity protection, Max 3.6W

Mount Ceiling mount (default), optional backbox, wall mount bracket

Dimensions Φ118mm*96mm (diameter*height)

Material Plastic

Weight 182g(0.401lb)

OSD menu language 11 Languages

English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish,

Portuguese(Brazil), Russian, Turkish

Certification

EMC CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)

FCC (FCC 47 CFR part15 B)
