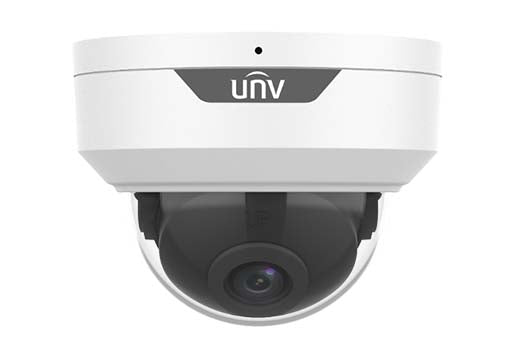

Uniview UAC-D125-AF28M 5MP Light Hunter HD IR Fixed Dome Analog Camera

Buy Uniview UAC-D125-AF28M 5MP Light Hunter HD IR Fixed Dome Analog Camera online at Rs. 7690 . Buy complete range of CCTV Camera on Vmart.pk We Offer home delivery all over Pakistan.

• High quality imaging with 5MP resolution

• TVI/AHD/CVI/CVBS

• Supports IR-cut filter with auto-switch (ICR)

• LightHunter monitoring with high-sensitivity sensor

• Supports 180° horizontal/vertical flip

• OSD configuration menu, easy to operate

• Water and dust resistant (IP67) and vandal-resistant (IK10)

• OSD configuration menu in 11 languages

• Built-in microphone for high quality audio transmission via coaxial cables

• Metal base and metal housing

• 3-Axis

Pixel 5MP

Size 1/2.7"

Minimum illumination 0.005 lux (F1.6, AGC ON)

0 lux (IR on)

Lens

Lens 2.8mm

Lens mount M12

Angle of view H: 109.1° V: 60.9° D: 126.7°

Illuminator

Illuminator One IR illuminator

Illumination distance 30m

Lifetime ≥60,000 hours

Video

Resolution 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps:

2592(H)×1944(V)

4MP: 2560(H)×1440(V)

1080P: 1920(H)×1080(V)

Frame rate TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps,

1080P@30fps, 1080P@25fps

AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVBS: PAL, NTSC

Shutter time PAL: 1/25s-1/50000s

NTSC: 1/30s–1/50000s


Exposure mode Four modes: Global (default), BLC, HLC, DWDR

Day/Night Three modes: Auto (default), Day, Night

Noise reduction 2D

White balance Two modes: Auto (default), Manual

WDR DWDR

Smart IR Support

Flip Supports 180° horizontal flip, 180° vertical flip

Audio

Microphone Built-in Mic

Camera audio TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps,

1080P@25fps

CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps

Interface

Power 5.5mm power interface

Video output BNC, supports TVI/AHD/CVI/CVBS

Operating environment

Temperature -30°C to 60°C (-22°F to 140°F)

Humidity ≤95% (RH, non-condensing)

Surge protection 4kV for power and video output interfaces

Ingress protection IP67

IK rating IK10

General

Power DC 12V(±25%), with reverse polarity protection, Max 3.3W

Mount Surface mount (default), optional tilted mounting bracket

Dimensions Φ109mm*83mm (diameter*height)

Material Metal

Weight 372g (0.82lb)

Certification CB, CE, FCC, UL
