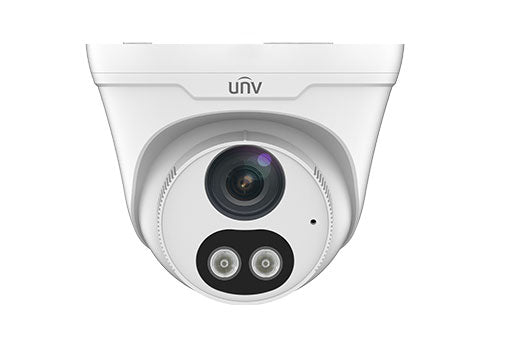

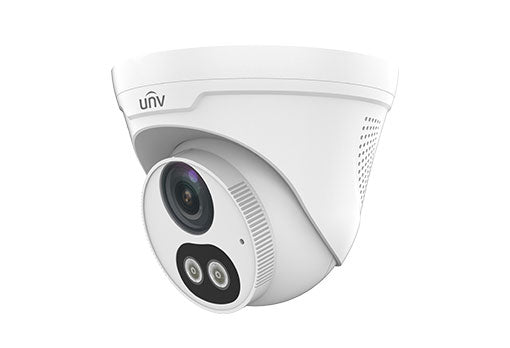

Uniview IPC3612LE-ADF28KC-WL 2MP HD Color Hunter IR Fixed Eyeball Network Camera

Buy Uniview IPC3612LE-ADF28KC-WL 2MP HD Color Hunter IR Fixed Eyeball Network Camera online at Rs.  . Buy complete range of CCTV Camera on Vmart.pk We Offer home delivery all over Pakistan.

• High quality image with 2MP, 1/2.8"CMOS sensor

• 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps;

• Ultra 265, H.265, H.264, MJPEG

• 120dB true WDR technology enables clear image in strong light scene

• Support 9:16 Corridor Mode

• Built-in Mic & Speaker

• Smart IR, up to 30m (98ft) IR distance

• White Light, up to 30m (98ft) white light distance

• Supports 128 G Micro SD card

• IP67 protection

• Support PoE power supply

• 3-Axis

Sensor 1/2.8", 2.0 megapixel, progressive scan, CMOS

Minimum Illumination Colour: 0.003 lux ( F1.6, AGC ON)

0Lux with IR

Day/Night IR-cut filter with auto switch (ICR)

Shutter Auto/Manual, 1 ~ 1/100000s

Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°

S/N >52dB

WDR 120dB

Lens

Lens Type 2.8mm@F1.6

Iris Fixed

Field of View (H) 106.7° 87.5°

Field of View (V) 57.1° 46.3°

Field of View (D) 115.7° 92.4°

DORI

DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)

2.8 43.4 17.4 8.7 4.3

Illuminator

IR Range Up to 30m (98ft) IR range

Wavelength 850nm

IR On/Off Control Auto/Manual

Video

Video Compression Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile Baseline profile, Main profile, High profile

Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;

2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate 128 Kbps~6 Mbps

U-code Support

OSD Up to 4 OSDs

Privacy Mask Up to 4 areas

ROI Up to 8 areas

Video stream Dual streams


White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction 2D/3D DNR

Smart IR Supported

Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping N/A

HLC Supported

BLC Supported

Defog Digital Defog

Events

Basic Detection Cross line, intrusion(based on human body detection),motion detection,

tampering alarm, audio detection

General Function Watermark, IP address filtering, access policy, ARP protection, RTSP

authentication, user authentication, HTTP authentication

Audio

Audio Compression G.711U, G.711A

Audio Bitrate 64 Kbps

Two-way Audio Support

Suppression Support

Sampling Rate 8KHZ

Storage

Edge Storage Micro SD, up to 128 GB

Network Storage ANR,NAS(NFS)

Network

Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS,

DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP

Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host Up to 32 users. 2 user levels: administrator and common user

Security Password protection, Strong password, HTTPS encryption, Export operation logs,

Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE

and digest authentication for ONVIF

Client EZStation

EZView

EZLive

Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52

and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O N/A

Alarm I/O N/A

RS485 N/A

Built-in Mic Support

Built-in Speaker Support

WIFI N/A

Network 1 * RJ45 10M/100M Base-TX Ethernet

Video Output N/A

Certification

EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-

2: 2019+A1: 2021,EN 55035: 2017+A11:2020)

FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety CE LVD (EN 62368-1:2014+A11:2017)

CB (IEC 62368-1:2014)

UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach

(Regulation (EC) No 1907/2006)

Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Power DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 8.0W

Power Interface Ø 5.5mm coaxial power plug

Dimensions (Ø x H) Φ118 x 95mm (Φ4.6” x 3.8”)

Weight 0.30kg (0.66lb)

Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection 4KV

Reset Button N/A
