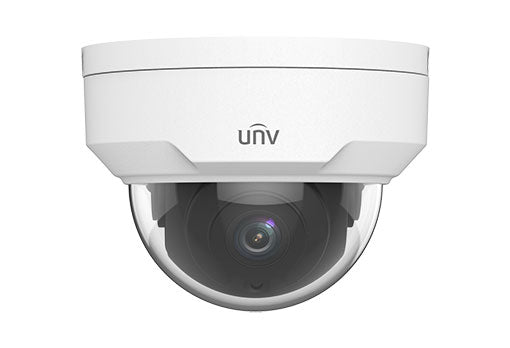

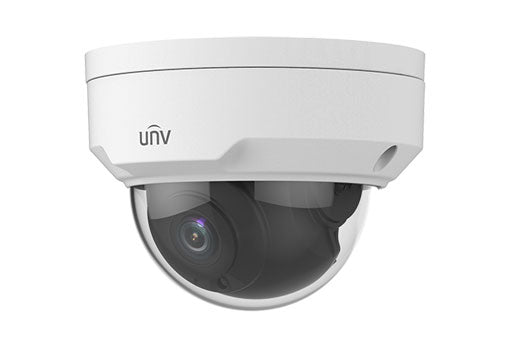

Uniview IPC322LB-SF28-A 2MP Vandal-resistant Network IR Fixed Dome Camera

Buy Uniview IPC322LB-SF28-A 2MP Vandal-resistant Network IR Fixed Dome Camera online at Rs. 8990 . Buy complete range of CCTV Camera on Vmart.pk We Offer home delivery all over Pakistan.

• High quality image with 2MP, 1/2.8"CMOS sensor

• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps

• Ultra 265, H.265, H.264

• Smart IR, up to 30m (98ft) IR distance

• Day/night functionality

• 2D/3D DNR (Digital Noise Reduction)

• IP67 protection

• IK10 vandal resistant

• Support PoE power supply

• 2-Axis

Sensor 1/2.8", progressive scan, 2.0 megapixel, CMOS

Lens 2.8mm@F2.0

DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)

2.8 43.4 17.4 8.7 4.3

Angle of View (H) 106.7°

Angle of View (V) 57.1°

Adjustment angle Pan: 3° ~ 360° Tilt: 0° ~ 75°

Shutter Auto/Manual, 1 ~ 1/100000s

Minimum Illumination Colour: 0.01Lux ( F2.0, AGC ON)

0Lux with IR

Day/Night IR-cut filter with auto switch (ICR)

Digital noise reduction 2D/3D DNR

S/N >52dB

IR Range Up to 30m (98ft) IR range

Wavelength 850nm

IR On/Off Control Auto/Manual

Defog Digital Defog

WDR DWDR

Video

Video Compression Ultra 265, H.265, H.264

H.264 code profile Baseline profile, Main profile, High profile

Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps

Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;

CIF(352*288), Max 30fps;

Video Bit Rate 128 Kbps~16 Mbps

OSD Up to 4 OSDs

Privacy Mask Up to 4 areas

ROI Up to 8 areas

Motion Detection Up to 4 areas


White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction 2D/3D DNR

Smart IR Supported

Flip Normal/Vertical/Horizontal/180°

Dewarping N/A

HLC Supported

BLC Supported

Network

Protocols IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP,

UPnP, HTTP

Compatible Integration API

Client EZStation

EZView

EZLive

Web Browser Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

Network 10/100M Base-TX Ethernet

Certifications

Certifications CE: EN 60950-1

UL: UL60950-1

FCC: FCC Part 15

General

Power DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 5.0W

Dimensions (Ø x H) Φ109 x 81mm (Ø4.3” x 3.2”)

Net Weight 0.35kg (0.77lb)

Material Metal + Plastic

Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection 4KV

Ingress Protection IP67

Vandal Resistant IK10

Reset Button N/A
