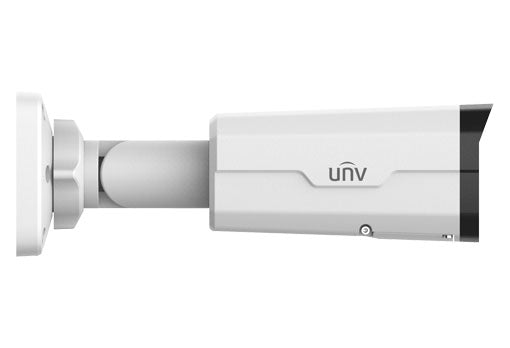

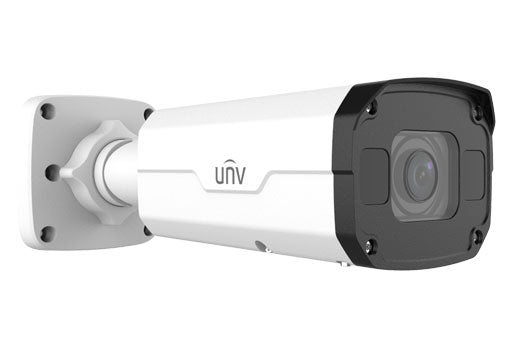

Uniview IPC2328SB-DZK-I0 8MP HD Intelligent LighterHunter IR VF Bullet Network Camera

Buy Uniview IPC2328SB-DZK-I0 8MP HD Intelligent LighterHunter IR VF Bullet Network Camera online at Rs. 47990  . Buy complete range of CCTV Camera on Vmart.pk We Offer home delivery all over Pakistan.

• High quality image with 8MP, 1/2.8"CMOS sensor

• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps

• Ultra 265, H.265, H.264, MJPEG

• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection

• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle

• Intelligent People Flow Counting and Crowd Density Monitoring

• LightHunter technology ensures ultra-high image quality in low illumination environment

• 120dB true WDR technology enables clear image in strong light scene

• Support 9:16 Corridor Mode

• Alarm:1 in/1 out, Audio: 1 in/1 out

• Smart IR, up to 50m (164ft) IR distance

• Supports 256 G Micro SD card

• IK10 vandal resistant

• IP67 protection

• Support PoE power supply

Sensor 1/2.8", 8.0 megapixel, progressive scan, CMOS

Minimum Illumination Colour: 0.0025 lux (F1.6, AGC ON)

0 lux with IR on

Day/Night IR-cut filter with auto switch (ICR)

Shutter Auto/Manual, 1 ~ 1/100000s

Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°

WDR 120dB

S/N >56 dB

Lens

Lens 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens

Iris Fixed

Field of View (H) 107.4°~ 29.2°

Field of View (V) 54.2°~ 16.3°

Field of View (D) 111.0°~33.1°

DORI

DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)

2.8 86.9 34.8 17.4 8.7

12 372.4 149.0 74.5 37.2

Illuminator

IR Range Up to 50m (164ft) IR range

Wavelength 850nm

IR On/Off Control Auto/Manual

Video

Video Compression Ultra 265, H.265, H.264, MJPEG

H.264 code profile Baseline profile, Main profile, High profile

Frame Rate Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP

(2560*1440), Max30fps; 1080P (1920*1080), Max 30fps;

Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576),

Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;

CIF(352*288), Max 30fps;

Video Bit Rate 128 Kbps~16 Mbps

U-code Support

OSD Up to 8 OSDs

Privacy Mask Up to 4 areas

ROI Up to 8 areas

Video Stream Triple streams


White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Smart IR Support

Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping Support

HLC Support

BLC Support

Defog Digital Defog

Intelligent

Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion

detection, Enter Area detection, Leave Area detection

Statistical Analysis People counting, support people flow counting and crowd density

monitoring

Events

Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection

General Function Watermark, IP address filtering, tampering alarm, alarm input, alarm

output, access policy, ARP protection, RTSP authentication, user authentication

Audio

Audio Compression G.711

Audio Bitrate 64 Kbps

Two-way audio Support

Suppression Support

Sampling Rate 8KHZ

Storage

Edge Storage Micro SD, up to 256GB

Network Storage ANR, NAS(NFS)

Network

Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP,

DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH

Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK

User/Host Up to 32 users. 2 user levels: administrator and common user

Security Password protection, strong password, HTTPS encryption, Export operation logs,

basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE

and digest authentication for ONVIF

Client EZStation

EZView

EZLive

Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52

and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]

Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O 1/1

RS485 N/A

Built-in Mic N/A

Built-in Speaker N/A

WIFI N/A

Network 1 * RJ45 10M/100M Base-TX Ethernet

Video Output N/A

Certifications

EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-

2: 2019+A1: 2021,EN 55035: 2017+A11:2020)

FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety CE LVD (EN 62368-1:2014+A11:2017)

CB (IEC 62368-1:2014)

UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach

(Regulation (EC) No 1907/2006)

Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

IK10 (IEC 62262:2002)

General

Power DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 10.5W

Power Interface Ø 5.5mm coaxial power plug

Dimensions (L × W × H) 245 × 86 × 72mm (9.6” × 3.4” × 2.8”)

Weight 0.92kg (2.03lb)

Material Metal

Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection 6KV

Reset Button N/A
