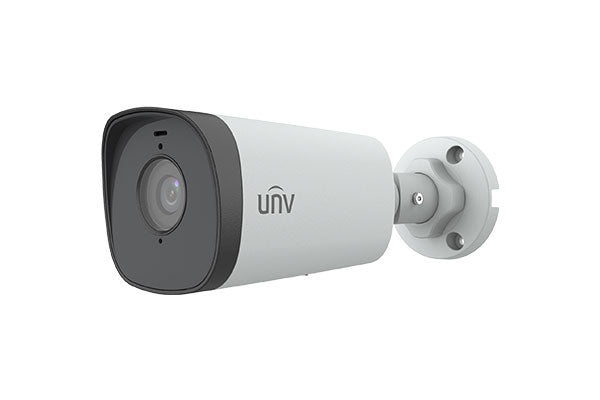

Uniview IPC2314SB-ADF40KM-I0 4MP HD Intelligent 80m IR Fixed Bullet Network Camera

Buy Uniview IPC2314SB-ADF40KM-I0 4MP HD Intelligent 80m IR Fixed Bullet Network Camera online at Rs. 28990  . Buy complete range of CCTV Camera on Vmart.pk We Offer home delivery all over Pakistan.

• High quality image with 4MP, 1/2.7"CMOS sensor

• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;

• Ultra 265, H.265, H.264, MJPEG

• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection

• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle

• Intelligent People Flow Counting and Crowd Density Monitoring

• 120dB true WDR technology enables clear image in strong light scene

• Support 9:16 Corridor Mode

• Built-in 2 Mic

• Smart IR, up to 80m (262 ft) IR distance

• Supports 256 G Micro SD card

• IP67 protection

Sensor 1/2.7", 4.0 megapixel, progressive scan, CMOS

Minimum Illumination Colour: 0.002 lux (F1.6, AGC ON)

0 lux with IR on

Day/Night IR-cut filter with auto switch (ICR)

Shutter Auto/Manual, 1 ~ 1/100000s

Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°

WDR 120dB

S/N >56dB

Lens

Lens 4.0mm@F1.6

Iris Fixed

Field of View (H) 83.7° 52.1°

Field of View (V) 44.9° 28.0°

Field of View (D) 89.2° 59.2°

DORI

DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)

4.0 90.0 36.0 18.0 9.0

Illuminator

IR Range Up to 80m (262 ft) IR range

Wavelength 850nm

IR On/Off Control Auto/Manual

Video

Video Compression Ultra 265, H.265, H.264, MJPEG

H.264 code profile Baseline profile, Main profile, High profile

Frame Rate Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP

(2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;

Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;

CIF(352*288), Max 30fps;

Video Bit Rate 128 Kbps~16 Mbps

U-code Support

OSD Up to 8 OSDs

Privacy Mask Up to 4 areas

ROI Up to 8 areas

Video Stream Triple streams


White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable

by web browser

Digital Noise Reduction 2D/3D DNR

Smart IR Support

Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping N/A

HLC Support

BLC Support

Defog Digital Defog

Intelligent

Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion

detection, Enter Area detection, Leave Area detection

Statistical Analysis People counting, support people flow counting and crowd density

monitoring

Events

Basic Detection Motion detection, Ultra motion detection ,tampering alarm, audio detection

General Function Watermark, IP address filtering, access policy, ARP protection, RTSP

authentication, user authentication

Audio

Audio Compression G.711

Audio Bitrate 64 Kbps

Suppression Support

Sampling Rate 8KHZ

Storage

Edge Storage Micro SD, up to 256GB

Network Storage ANR, NAS(NFS)

Network

Protocols IPv4, IPv6 ,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP,

DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS,

SSH

Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK

User/Host Up to 32 users. 2 user levels: administrator and common user

Security Password protection, strong password, HTTPS encryption, Export operation logs,

basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE

and digest authentication for ONVIF

Client EZStation

EZView

EZLive

Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52

and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O N/A

Alarm I/O 1/1

RS485 N/A

Built-in Mic Support

Built-in Speaker N/A

WIFI N/A

Network 1 * RJ45 10M/100M Base-TX Ethernet

Video Output N/A

Certifications

EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-

2: 2019+A1: 2021,EN 55035: 2017+A11:2020)

FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety CE LVD (EN 62368-1:2014+A11:2017)

CB (IEC 62368-1:2014)

UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach

(Regulation (EC) No 1907/2006)

Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Power DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 7.0 W

Power Interface Ø 5.5mm coaxial power plug

Dimensions (L × W × H) 206 × 74 × 74mm (8.1” × 2.9” × 2.9”)

Weight 0.51kg (1.12lb)

Material Metal

Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection 4KV

Reset Button Support
