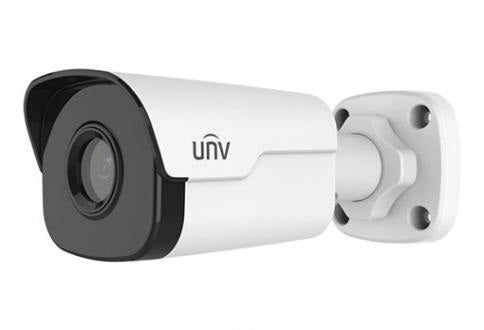

Uniview IPC2124LB-SF40KM-G 4MP Mini Fixed Bullet Network Camera

Buy Uniview IPC2124LB-SF28(40)KM-G 4MP Mini Fixed Bullet Network Camera online at Rs.  . Buy complete range of CCTV Camera on Vmart.pk We Offer home delivery all over Pakistan.

High quality image with 4MP, 1/3"CMOS sensor

4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps

Ultra 265, H.265, H.264, MJPEG

Smart IR, up to 30m (98ft) IR distance

Supports 128 G Micro SD card

Support PoE power supply

3-Axis

Sensor 1/3", 4.0 megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.01Lux (F2.0, AGC ON)

0Lux with IR on

Day/Night IR-cut filter with auto switch (ICR)

Shutter Auto/Manual, 1 ~ 1/100000s

Adjustment angle Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

S/N >56dB

WDR DWDR

Lens

4.0mm @2.0, Fixed-focal

Lens Mount M12

Angle of View (H) 97.0° 79.0°

Angle of View (V) 52.2° 42.3°

Angle of View (O) 107.5° 85.1°

DORI

DORI Distance

Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)

4.0 90.0 36.0 18.0 9.0

Illuminator

IR Range Up to 30m (98ft) IR range

Wavelength 850nm

IR On/Off Control Auto/Manual

Video

Video Compression Ultra 265, H.265, H.264, MJPEG

H.264 code profile Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P

(1920*1080), Max 30fps; 720P

(1280*720), Max 30fps

Sub Stream: 4CIF (704*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;

CIF(352*288), Max 30fps;

Video Bit Rate 128 Kbps~6144 kbps

U-code Supported

OSD Up to 4 OSDs

Privacy Mask Up to 4 areas

ROI Up to 8 areas

Motion Detection Up to 4 areas


White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable

by web browser

Digital noise reduction 2D/3D DNR

Smart IR Supported

Flip Normal/Vertical/Horizontal/180°

3

DATASHEET

Dewarping NA

HLC Supported

BLC Supported

Defog Digital Defog

Storage

Edge Storage Micro SD, up to 128GB

Network Storage ANR, NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP,

FTP, UPnP, HTTP, HTTPS, SMTP, QoS,

SSL/TLS, SNMP

Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK

User/Host Up to 32 users. 2 user levels: administrator and common user

Security Password protection, Strong password, HTTPS encryption, Export operation logs,

Basic and digest authentication for RTSP,

Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation

EZView

EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

Network 1 * RJ45 10M/100M Base-TX Ethernet

Certification

EMC FCC: FCC Part 15

Safety

CE: EN 60950-1

UL: UL60950-1

IEC 60950-1

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 5.5W

Power Interface Ø 5.5mm coaxial power plug

Dimensions (L × W × H) 165 × 63 × 62mm (6.5” × 2.5” × 2.5”)

Weight 0.39kg (0.86lb)

Material Metal

Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection 4KV

Reset Button N/A

Ingress Protection Ingression protection: IP67
