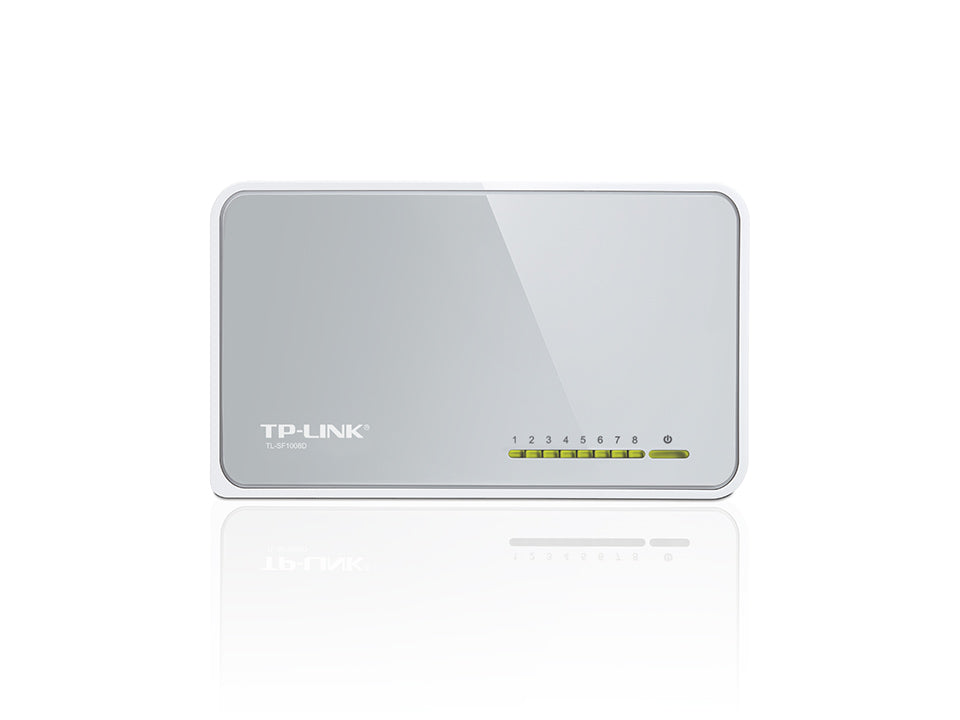

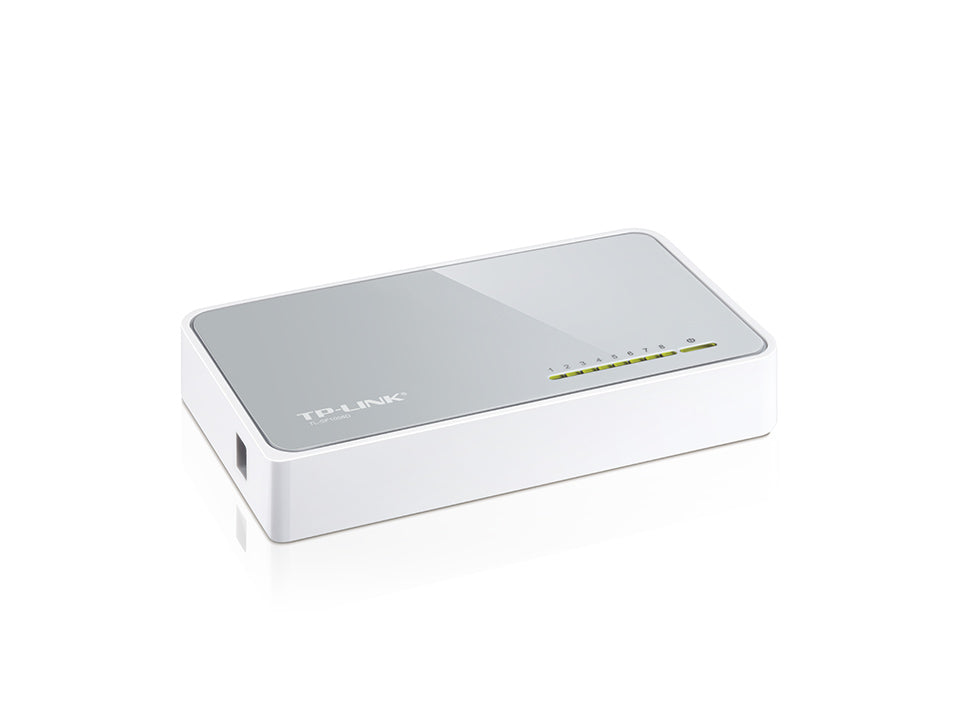

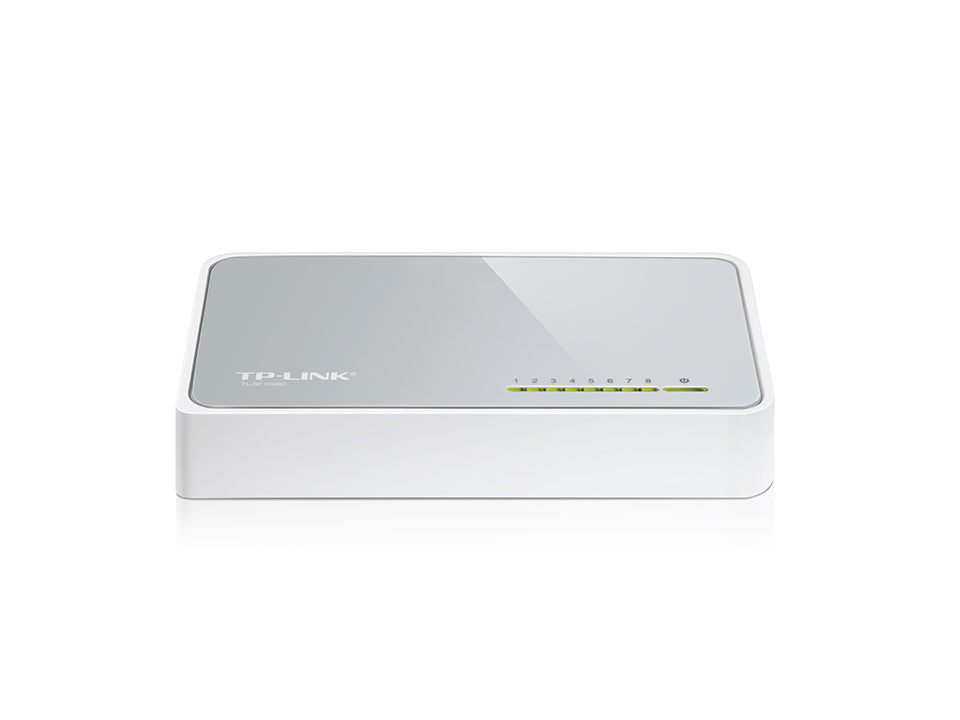

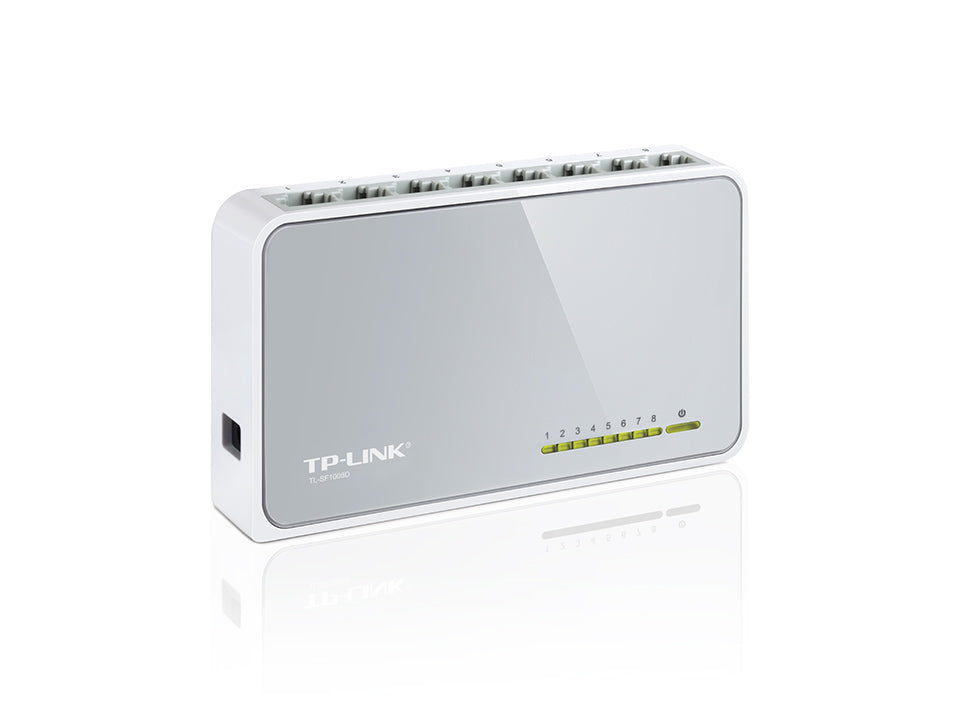

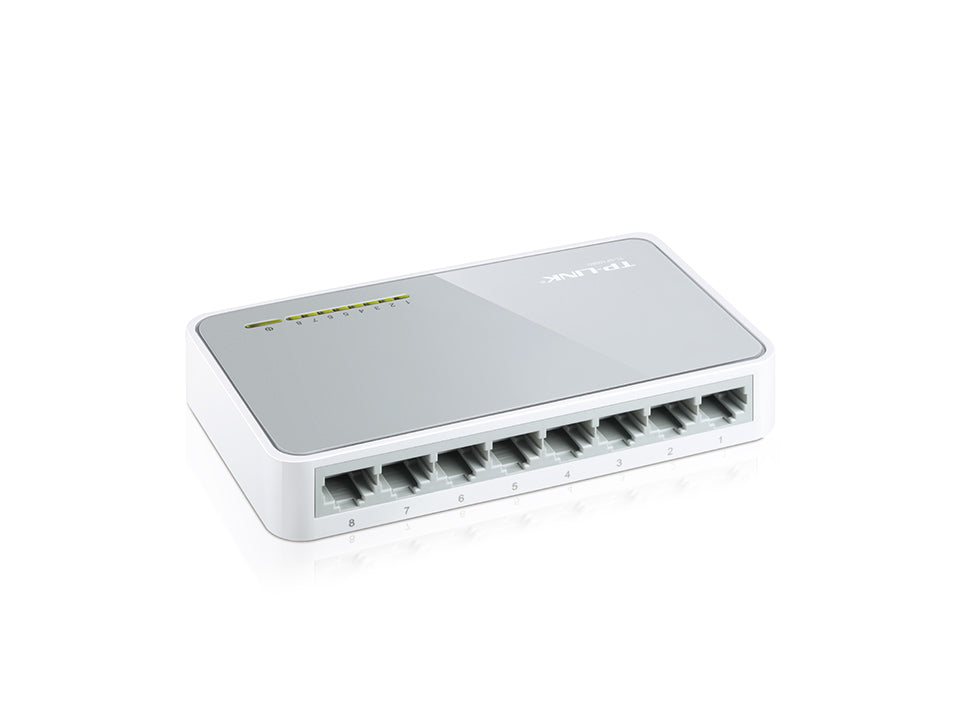

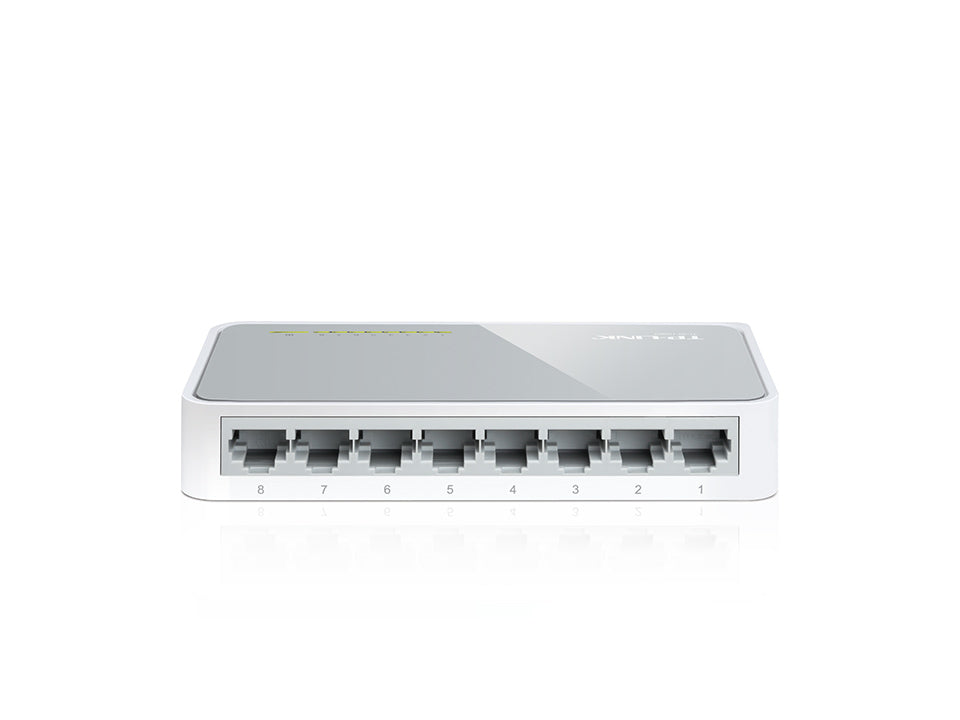

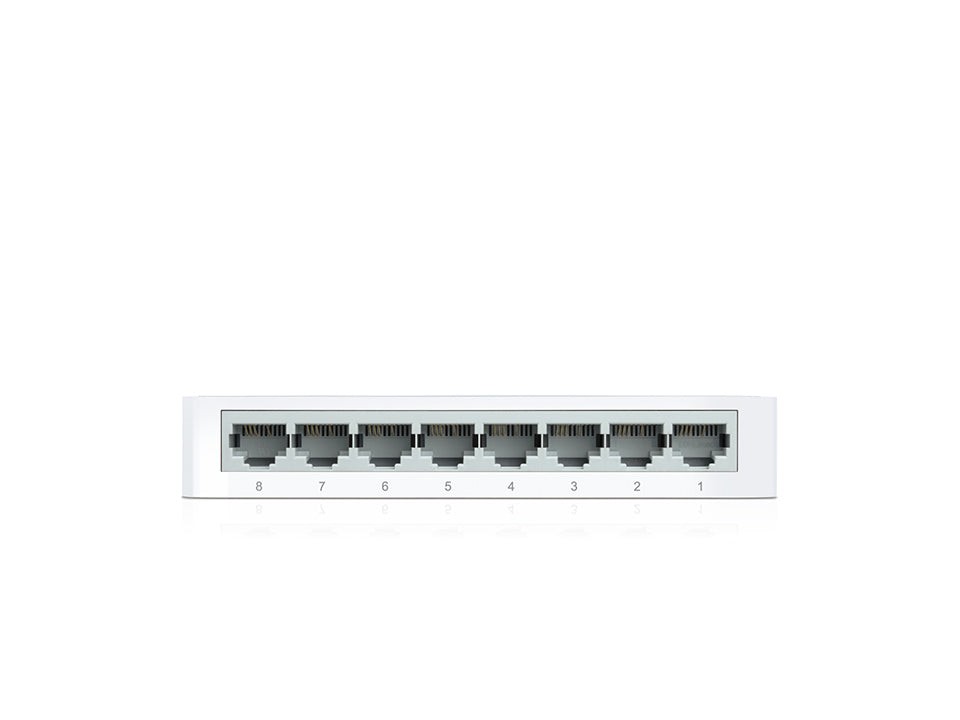

TP-Llink TL-SF1008D 8-Port 10/100Mbps Desktop Switch

• 8 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
• Green Ethernet technology saves the power up to 68%
• IEEE 802.3x flow control provides reliable data transfer
• Plastic case, desktop design
• Plug and play, no configuration required

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save up to 60%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

The auto features of this ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

5 10/100Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Fanless

1.48W (220V/50Hz)

5.0VDC / 0.6A)

4.1 x 2.8 x 0.9 in. (103.5 x 70 x 22 mm)

Store and Forward

Green Technology, saving power up to 68%

802.3X Flow Control, Back Pressure

FCC, CE, RoHs

0℃~40℃ (32℉~104℉);

-40℃~70℃ (-40℉~158℉);

10%~90% non-condensing;

5%~90% non-condensing
