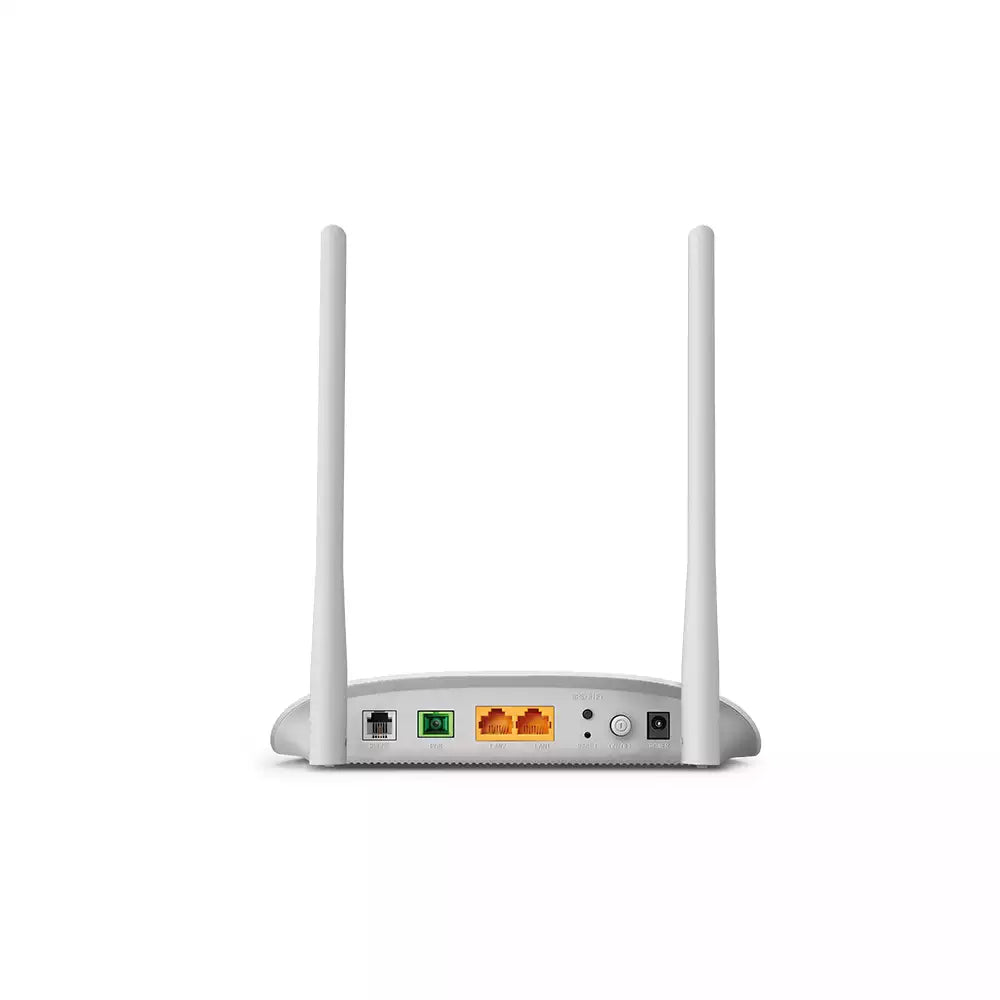

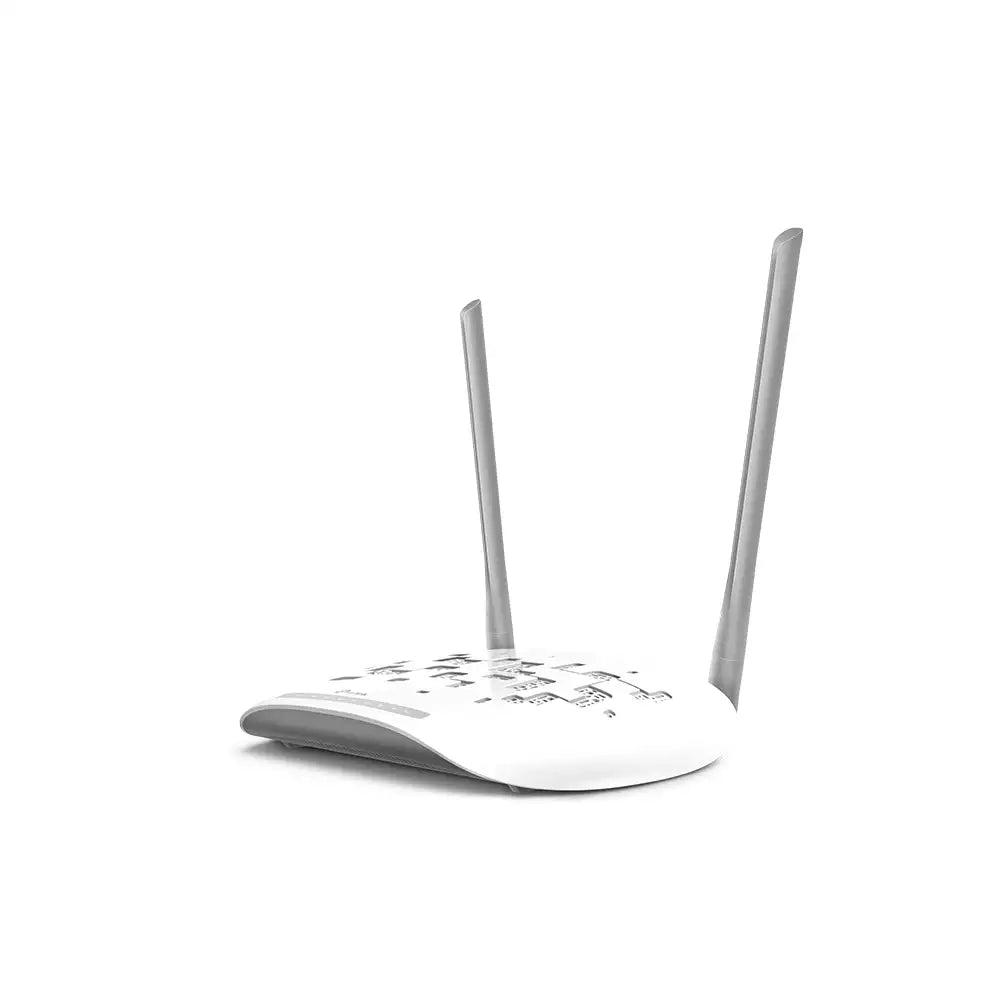

TP-Link XN020-G3v 300Mbps Wireless N Gigabit VoIP GPON Router

Buy TP-Link XN020-G3v 300Mbps Wireless N Gigabit VoIP GPON Router online at Rs. 8190. Buy complete range of Wireless Routers on Vmart.pk, We Offer home delivery all over Pakistan.

A GPON modem with wireless AP and 2-port Switch

Compliant with the ITU-T G.984/G.988 GPON standards, XN020-G3 supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream.

TR-069 protocol enables an operator to remotely configure and manage end-user devices.

TP-Link’s N300 Wireless GPON router is a Gigabit Passive Optical Network (GPON) terminal, the ideal Fiber-to-the-Home (FTTH) solution. Enjoy a high-speed internet connection via the GPON port or wireless speeds of 300Mbps. XN020-G3V is the perfect terminal and future-oriented service, with full capabilities for FTTH deployment.

Compliant with the ITU-T G.984 GPON standards, XN020-G3v supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream. Along with a 10/100/1,000Mbps LAN port and a 10/100Mbps LAN port, users can enjoy high-speed GPON services and bandwidth-intensive multimedia applications—such as interactive gaming, streaming, and real-time audio—much faster and easier than ever before.

With a GPON modem, 300Mbps wireless AP and 2-port Switch, 1-port FXS, the XN020-G3v is everything your home or office needs to be fully connected.

Equipped with a GPON modem, 300Mbps wireless AP and 2-port Switch, and 1-port FXS to cully connect your home or office.

TR-069 protocol enables an operator to remotely configure and manage end-user devices.

1* SC/APC port

1* 10/100/1000Mbps LAN Port

1* 10/100Mbps LAN Port

1 FXS Port

Power On/Off Button, Reset Button, WPS/Wi-Fi Buttion

12V/0.6A

IEEE 802.11g, 802.11b,802.11n

IEEE 802.3, IEEE 802.3u, 802.3ab

( W x D x H ) 7.1 ×4.9× 1.4 in. (181.5 ×125.7 ×36.2mm)

2X2，2.4G 5dBi

ITU G.984.1

ITU G.984.2

ITU G.984.3

ITU G.984.4

Class C+

Transmit at 1310nm Receive at 1490nm

0 ~ 20Km Max

Downstream up to 2.488Gbps Upstream up to 1.244Gbps Max

APD-TIA

DFB Laser

2.4GHz

300Mbps at 2.4GHz

<20dBm (2.4GHz)

Enable/Disable Wireless Radio, WMM, Wireless Statistics

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

Support 2.4GHz Schedule

Hardware QoS

NAT Firewall, SPI Firewall, Access Control, MAC/URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding

OMCI, Web Based Configuration, Command Line Interface, SSL for TR-069, OMCI Based Firmware Upgrade

PPPoE, Dynamic IP, Static IP, Bridge

Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Virtual Server, Port Triggering, DMZ, ALG, UPnP

DynDns, NO-IP

Support IPv4 and IPv6

SN, Password, SN + Password Authentication Mode

Upstream and Downstream FEC, AES encryption

Dynamic Bandwidth Allocation(DBA) support NSR/SR

802.1Q VLAN, Static Routing;

IGMP v1/v2 /v3

16 T-CONTs, 256 GEM Ports

IGMP v1/v2/v3

Support up to 10 IPSec VPN tunnels

300Mbps Wireless N Gigabit VoIP GPON Router XN020-G3v

RJ11 Phone Cable

RJ45 Ethernet Cable

Quick Installation Guide

Power Adapter

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 , or other Java-enabled browser

Cable or DSL Modem

CE, Anatel

Operating Temperature: 0℃~40℃(32℉~104℉)

Storage Temperature: -40℃~70℃(-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
