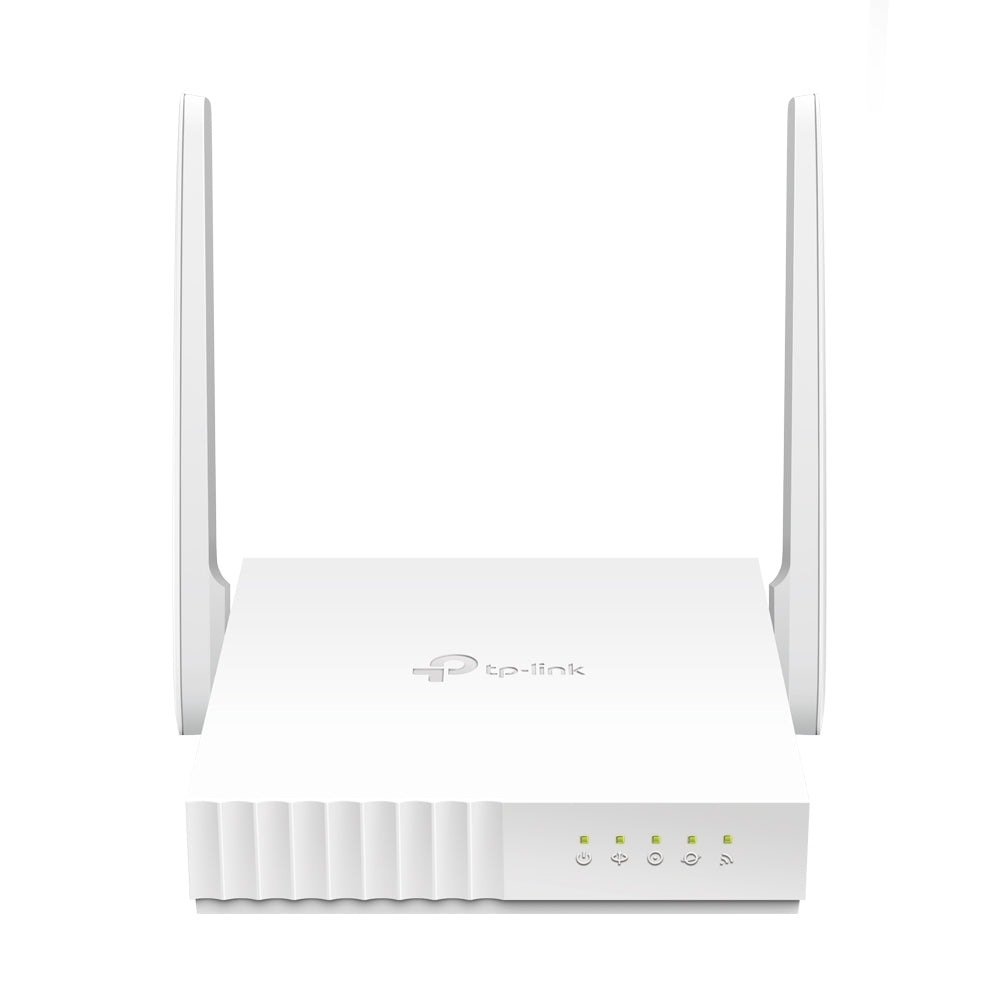

TP-Link XN020-G3 300Mbps Wireless N Gigabit GPON Router

Buy TP-Link XN020-G3 300Mbps Wireless N Gigabit GPON Router online at Rs. 6790. Buy complete range of Wireless Routers on Vmart.pk. We Offer home delivery all over Pakistan.

A GPON modem with wireless AP and 1-port Switch

Compliant with the ITU-T G.984/G.988 GPON standards, XN020-G3 supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream.

TR-069 protocol enables an operator to remotely configure and manage end-user devices.

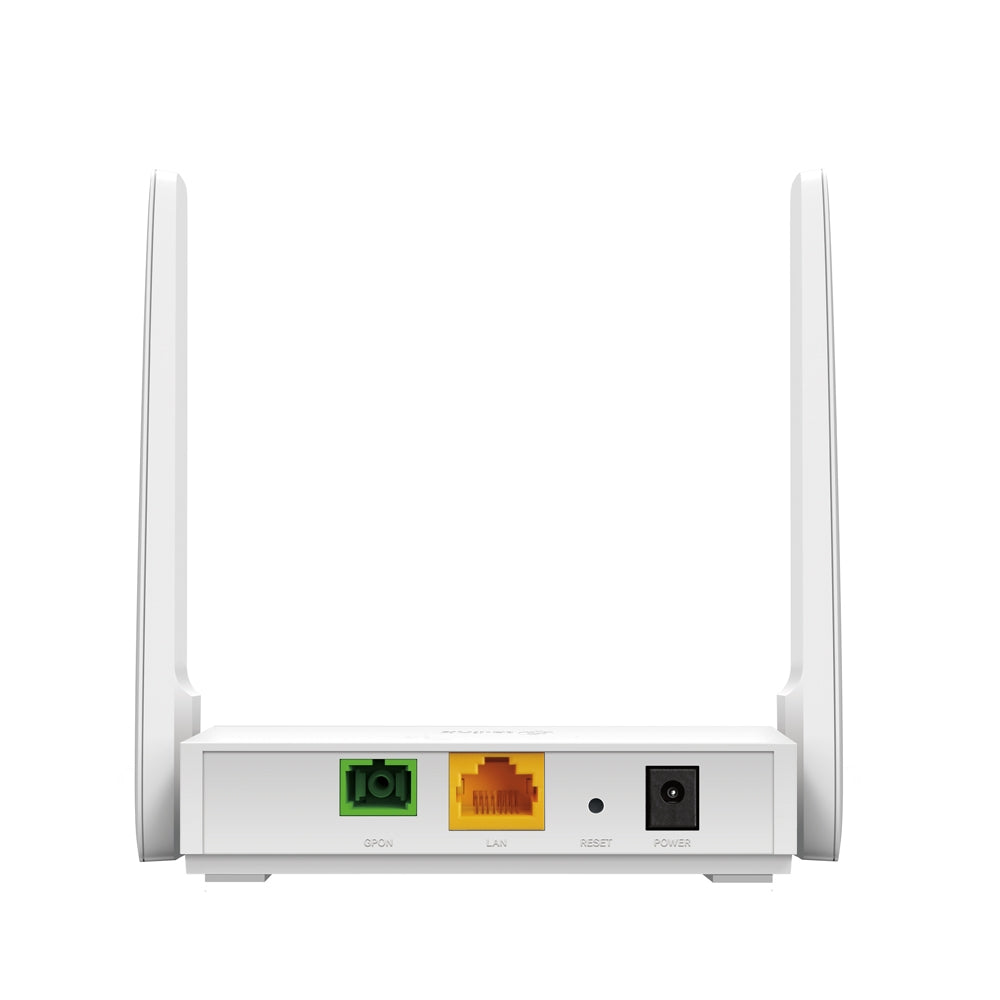

Interface 1SC/APC Port, 1 10/100/1000Mbps LAN Port

Button Reset Button

External Power Supply 12V/0.6A

Wireless Standards IEEE 802.11g, 802.11b,802.11n

IEEE Standards IEEE 802.3, IEEE 802.3u, 802.3ab

Dimensions ( W x D x H ) 4.5×4.2×1.0 in. (115×106.7×24.3mm)

Antenna Type External , 2 x 2 5dBi for 2.4GHz

GPON Standards ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4, ITU G.988

Wireless Standards IEEE 802.11g, 802.11b,802.11n

Frequency 2.4GHz

Signal Rate 300Mbps at 2.4GHz

Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics

Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Transmission Power <20dBm (2.4GHz)

Wireless Schedule Support 2.4GHz Schedule

Quality of Service ATM QoS, QoS

Security NAT Firewall, SPI Firewall, Access Control, MAC/URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding

Management OMCI, Web Based Configuration, Command Line Interface, SSL for TR-069, OMCI Based Firmware Upgrade

DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Port Forwarding Virtual Server, DMZ, ALG, UPnP

Dynamic DNS DynDns, NO-IP

Protocols Supports IPv4 and IPv6

Advanced Functions SN, Password, SN + Password Authentication Mode, Upstream and Downstream FEC, AES encryption, Dynamic Bandwidth, Allocation(DBA) support NSR/SR, 802.1Q VLAN, Static Routing, IGMP v1/v2/v3, 16 T-CONTs, 256 GEM Ports

Certification CE

300Mbps Wireless N Gigabit GPON Router XN020-G3

RJ45 Ethernet Cable

Quick Installation Guide

Power Adapter

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 , or other Java-enabled browser

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
