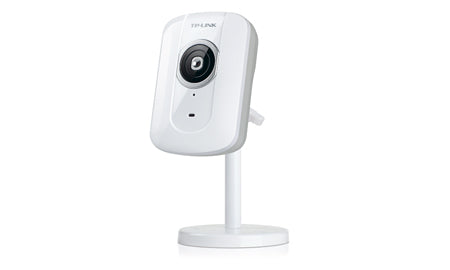

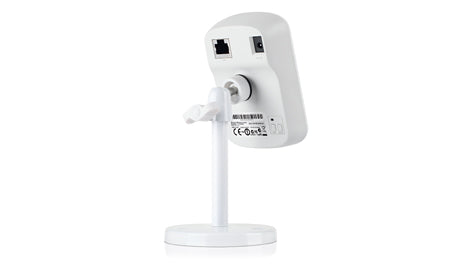

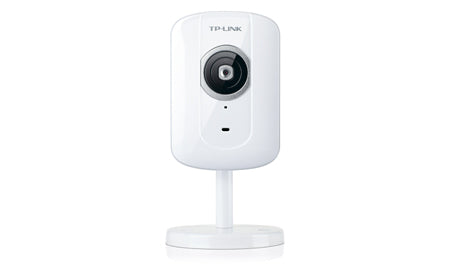

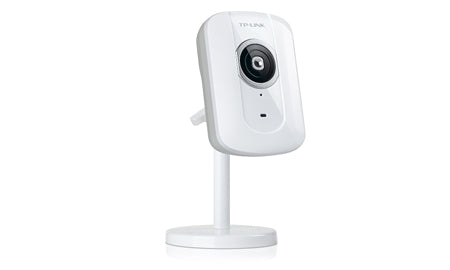

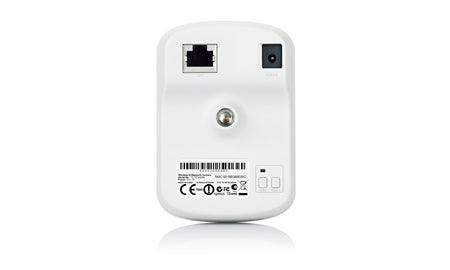

The TL-SC2020N surveillance camera is a versatile solution for your home and office monitoring, whose 150Mbps wireless connectivity enables you to deploy the camera where inaccessible previously by Ethernet connection such as ceiling and walls. This camera can be placed in your living room, office, or anywhere else you would like to keep an eye on things. After a hassle-free installation, you can view and control the camera from a Web browser, bundled software, or compatible cell phone.
16-channel Management Software
The surveillance software coming with the IP camera assists you manage multiple cameras at the same time. With it, video from 16 cameras can be displayed on one screen. You can archive streaming video and audio straight to your hard drive, playback video, and monitor up to 16 cameras on a single screen.
150Mbps Wireless Connectivity
IP camera is usually installed on the ceilings or on the wall, but it is hard to deploy the Ethernet cable there. It's great if you can setup the IP camera wirelessly. TL-SC2020N comes with wireless connectivity at a speed up to 150Mbps, which ensures the smooth video transmission.
Crystal Clear Image
The low-light-sensitive CMOS sensor on this camera adapts Progressive Scan technology, boosting the performance greatly compared to traditional Interlaced Scan technology, provides good image quality even in the dawn.
Features
Specifications
CAMERA | |
---|---|
Image Sensor | 1/4" Progressive scan CMOS sensor |
Digital Zoom | 10x Digital |
Minimum Illumination | 0.5 Lux |
VIDEO/IMAGE | |
---|---|
Video Compression | Motion JPEG |
Frame Rate & Resolutions | Up to 30(NTSC) / 25(PAL) fps at 640x480, 320x240, 160x120 |
Video Streaming | Motion JPEG |
Image Settings | Rotation: Mirror, Flip, Mirror Flip; Brightness, Contrast, Saturation, Hue; Overlay capabilities: Time, Date, Text and Privacy image |
AUDIO | |
---|---|
Audio Communication | One-way |
Audio Input | Built-in microphone |
Audio Compression | G.711 PCM, 8 kHz, 64 kbit/s |
ALARM AND EVENT MANAGEMENT | |
---|---|
Events Trigger | Built-in motion detection, schedule |
Notification Method | E-mail, FTP, HTTP |
NETWORK | |
---|---|
Standards and Protocols | TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, TCP,UDP,3GPP/ISMA RTSP |
WIRELESS | |
---|---|
Wireless Data Rates | IEEE 802.11 b/g/n , Up to 150Mbps |
Frequency | 2.4-2.4835GHz |
Wireless Encryption | 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
INTERFACES | |
---|---|
Network Interface | 1 RJ- 45 for Ethernet 10/100 Base-T |
Power Connector | DC power jack |
Audio Input | Built-in microphone |
Button | Reset push button |
SURVEILLANCE MANAGEMENT | |
---|---|
Bundled Management Software | Viewing and recording up to 16 cameras |
GENERAL | |
---|---|
External Power Supply | 5VDC, Max 3W |
Certification | CE, FCC, RoHS |
Package Contents | Wireless N Network Camera TL-SC2020N Power Adapter RJ-45 Ethernet Cable Quick Installation Guide Resource CD Camera Mount Kit |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Dimensions( H X W X D ) | 96 x 66 x 28 mm (3.8 x 2.9 x 1.1 in.) |
