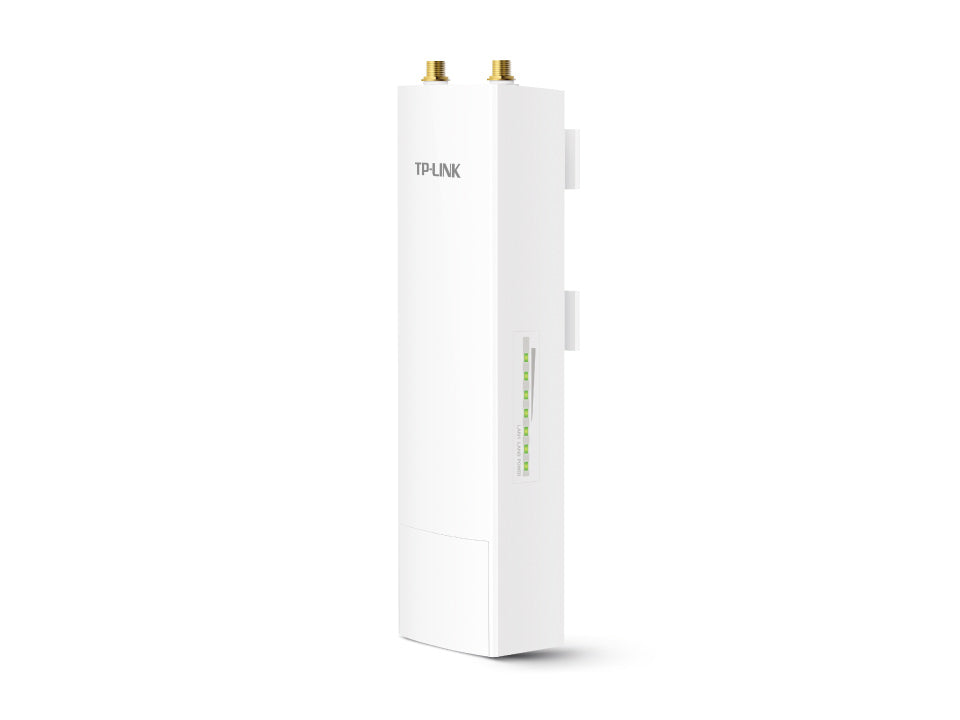

TP-Link WBS510 5GHz 300Mbps Outdoor Wireless Base Station

• Broad operating frequency channels ensure less wireless interference
• Wireless N speed up to 300Mbps
• Selectable bandwidth of 5/10/20/40MHz
• Adjustable transmission power from 1 to 27dBm/500mW
• 2 RP-SMA connectors for external MIMO antenna
• Work with TP-LINK dish antenna for long-distance wireless data transfer up to 50+Km
• 1 10/100/1000Mbps Ethernet port for passive PoE and 1 10/100Mbps Ethernet port for extended applications
• TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PtMP applications
• Centralized Management System – Pharos Control
• Supports AP Router, AP Client Router, AP, AP Client, Multi-Bridge and Repeater Operation modes
• Weatherproof enclosure, 15kV ESD and 6KV lightning protection

TP-LINK’s 5GHz 300Mbps Outdoor Wireless Base Station is specifically designed to provide an effective solution for outdoor wireless networking applications. With its centralized management platform and high degree of flexibility, it is the ideal choice for providing point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage. The TP-LINK Outdoor Wireless Base Station pairs professional performance with user-friendly design, making it the perfect solution for both business and home users.

Two external RP-SMA antenna interfaces allow the Outdoor Wireless Base Station to integrate seamlessly with TP-LINK's line of sector and dish antennas. Where long- distance wireless data transmission is necessary, the WBS510 can be paired with a TP-LINK dish antenna, allowing it to transfer data over distances of up to 50 km.

Pharos Base Stations works seamlessly with TP-LINK dish and sector antennas to provide efficient PtP and PtMP data transmission. Pharos Base Stations also feature a built-in mount, meaning that no tools are required for installation.

To maximize performance and stabilize long distance wireless transmission, the Pharos Series is built with Qualcomm Atheros enterprise level chipsets, high gain-antennas, and high-power amplifiers. In addition to excellent internal components, Pharos Series Base Stations also feature specially designed, weatherproof enclosures and PoE capability. This industry-leading hardware ensures that Pharos Series Base Stations can be deployed in a wide variety of environments, withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F).

• Qualcomm Atheros Enterprise Level Chipset
• High Gain Antennas
• Weatherproof Enclosure
• Passive PoE Adapter
• 6000V Lightning Protection
• 15KV ESD Protection

As networks grow in scale, base stations and other devices often compete for access to a single data connection, resulting in diminished throughput and a poorer experience for the end-user. Pharos Base Stations utilize MAXtream TDMA Technology to counteract this competition and ensure that data transfer rates remain high, even as demand increases.

Pharos Base Stations are equipped with Pharos Control, a centralized management software that helps users easily manage all network devices from a single PC. Pharos Control provides ultimate convenience for users who wish to control device discovery, monitor network status, upgrade device firmware, or perform other network maintenance tasks.

PharOS is a user-friendly, web-based management system that allows advanced users and network professionals to perform fine-tune calibration and access more advanced configuration options.

TP-LINK Pharos series products are dedicated to provide high performance solutions for outdoor wireless networking applications. Nowadays Pharos includes a variety of CPE and Base station devices, carrier class antennas, and a centralized management application.
