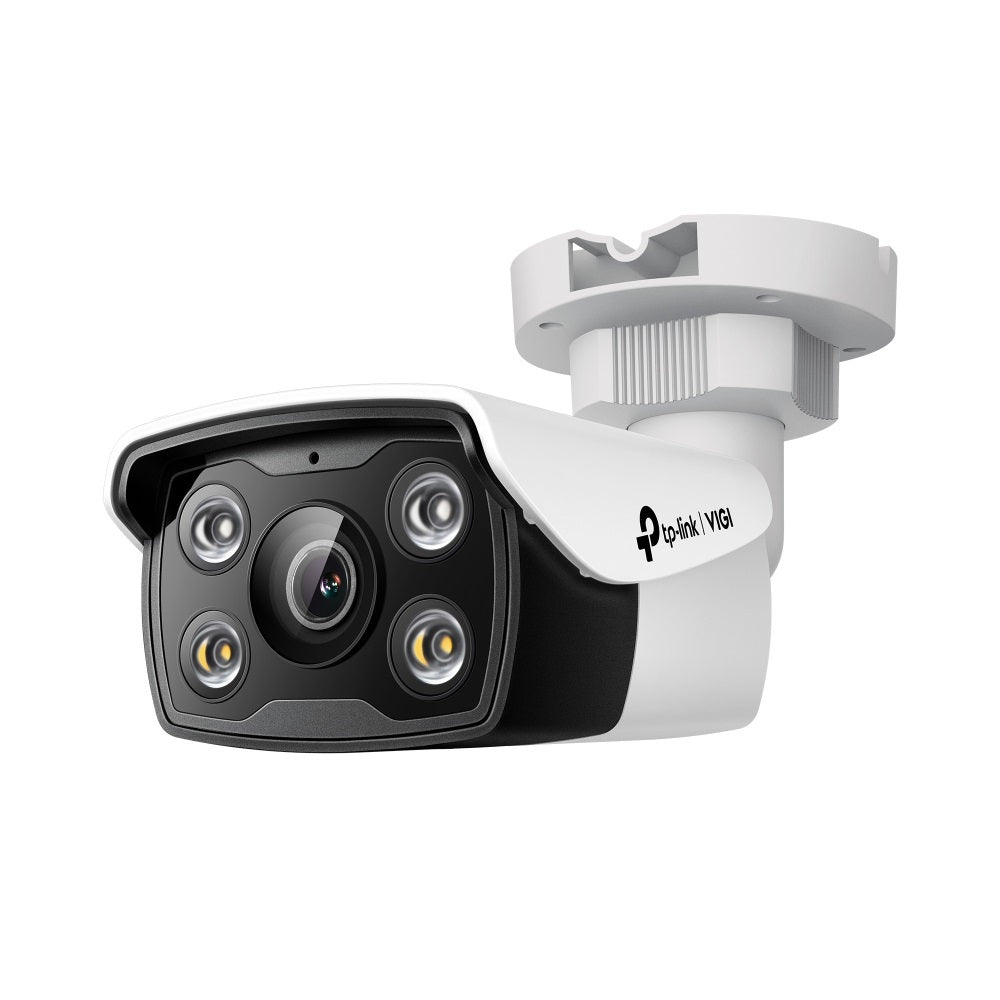

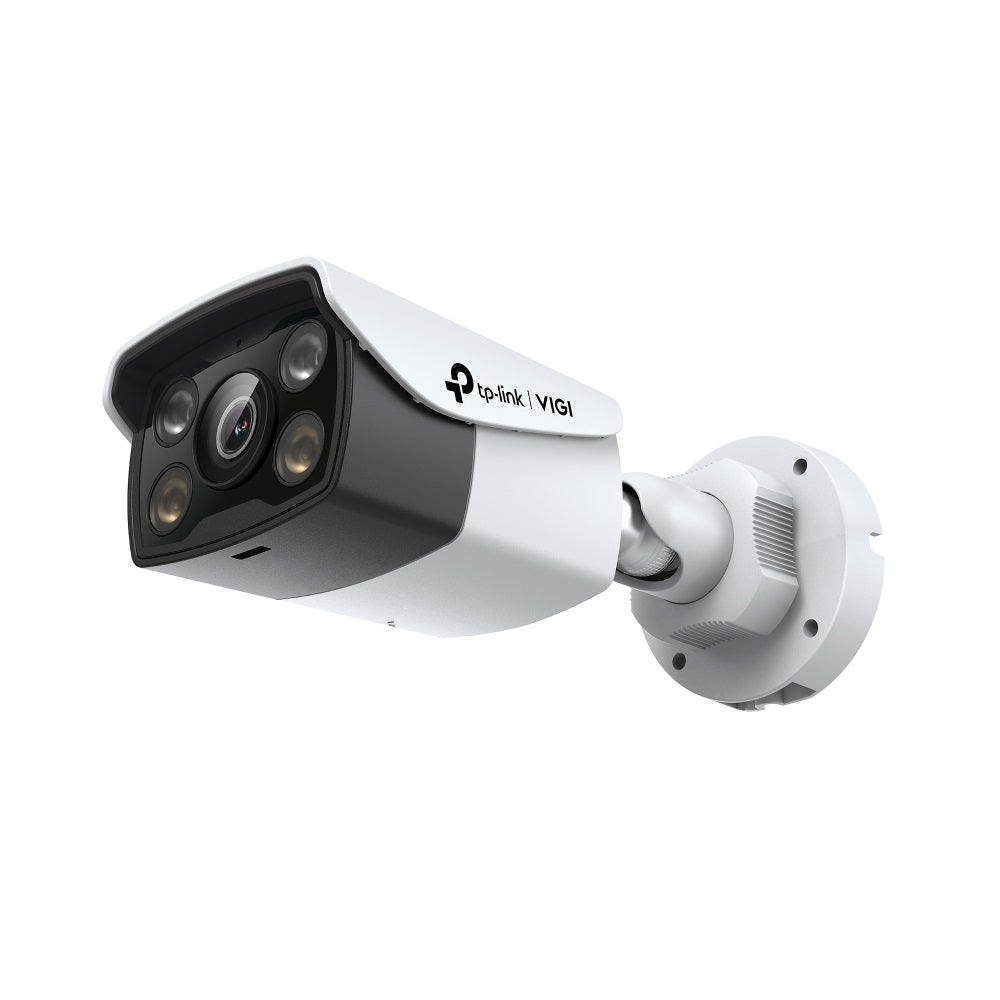

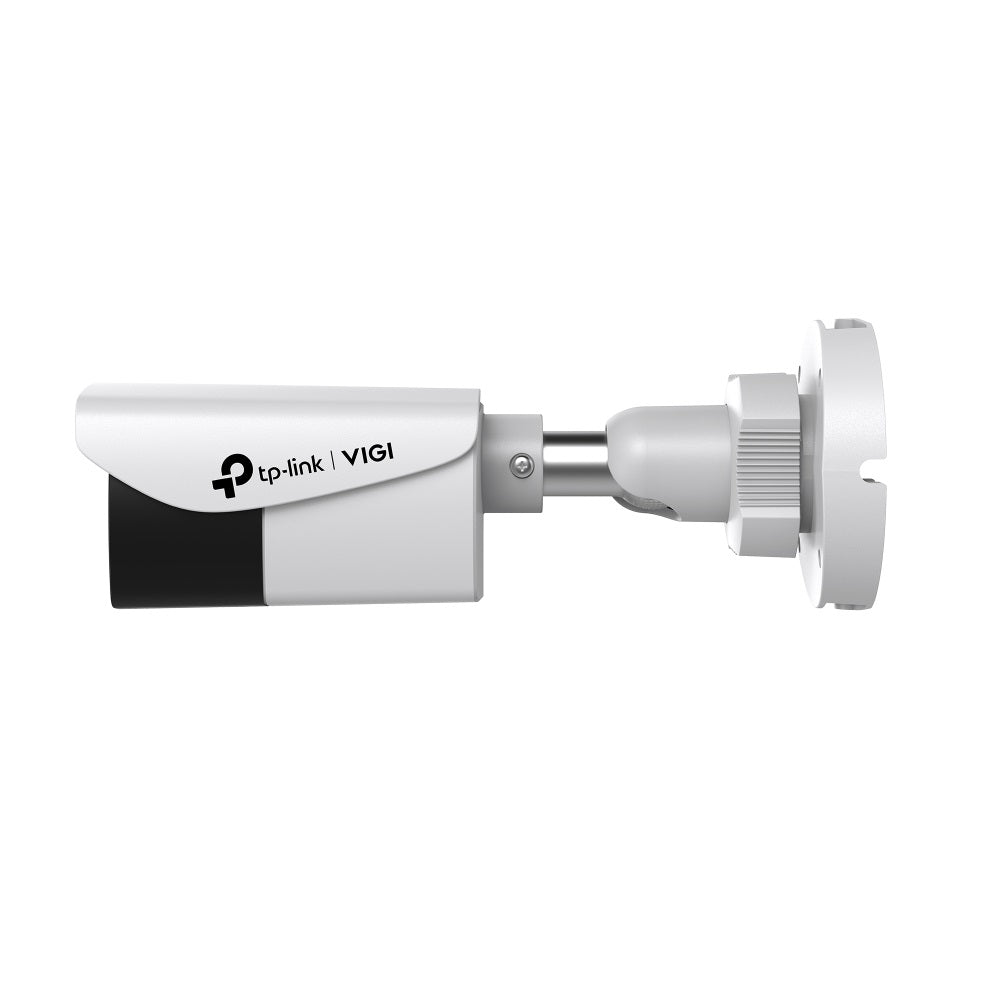

TP-Link VIGI C330 (2.8mm) 3MP Outdoor Full-Color Bullet Network Camera

Buy TP-Link VIGI C330 (2.8mm) 3MP Outdoor Full-Color Bullet Network Camera online at Rs. 9990. Buy complete range of CCTV Camera on Vmart.pk. We Offer home delivery all over Pakistan.

Features:

3MP Super-High Definition and 24h Full-Color

Human & Vehicle Classification

Smart Detection

Smart Video Enhancement Technology

Built-In Microphone

IP67 Waterproof

H.265+ Compression Technology

Specifications:

CAMERA
Image Sensor 1/2.8” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 2.8/4/6 mm
Aperture F1.6
FOV • 2.8 mm:
Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°

• 4 mm:
Horizontal FOV: 84.4°, Vertical FOV: 44.3°, Diagonal FOV: 100.6°

• 6 mm:
Horizontal FOV: 55.1°, Vertical FOV:30.2°, Diagonal FOV: 64°
Lens Mount M12
DORI Distance • 2.8 mm:
Detect: 52 m (170 ft)
Observe: 22 m (71 ft)
Recognize: 10 m (34 ft)
Identify: 5 m (17 ft)

• 4 mm:
Detect: 70 m (230 ft)
Observe: 29 m (96 ft)
Recognize: 14 m (46 ft)
Identify: 7 m (23 ft)

• 6 mm:
Detect: 100 m (327 ft)
Observe: 41 m (136 ft)
Recognize: 20 m (65 ft)
Identify: 10 m (33 ft)

ANGLE ADJUSTMENT (MANUAL)
Range • Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°

ILLUMINATOR
IR LED • Quantity: 2
• Range: 30m
• Wavelength: 850nm
White LED • Quantity: 2
• Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2304 × 1296
Main Stream • Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution:2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream • Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution:704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes

AUDIO
Audio Communication N/A
Audio Input Yes
Audio Output N/A
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)

NETWORK
Protocol • TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event • Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection
Basic Event • Motion Detection
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm Linkage • White Light Flashing
• Message Push
Linkage Method N/A
Output Notification Message Push

INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button N/A
Power DC Power Port
On-board Storage N/A
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker N/A
Audio N/A

GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Content • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Material Plastic
Net Weight 0.32 Kg
Gross Weight 0.48 Kg
Power Supply • 12V DC ± 5%, Max. 5.5 W, 5.5mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 6 W
Protection IP67 Waterproof
Product Dimensions (L x W x H) 78.5 × 188.0 × 71.5 mm (3.09 × 7.40 × 2.81 in)
Certifications CE, NTRA, VCCI, BSMI
