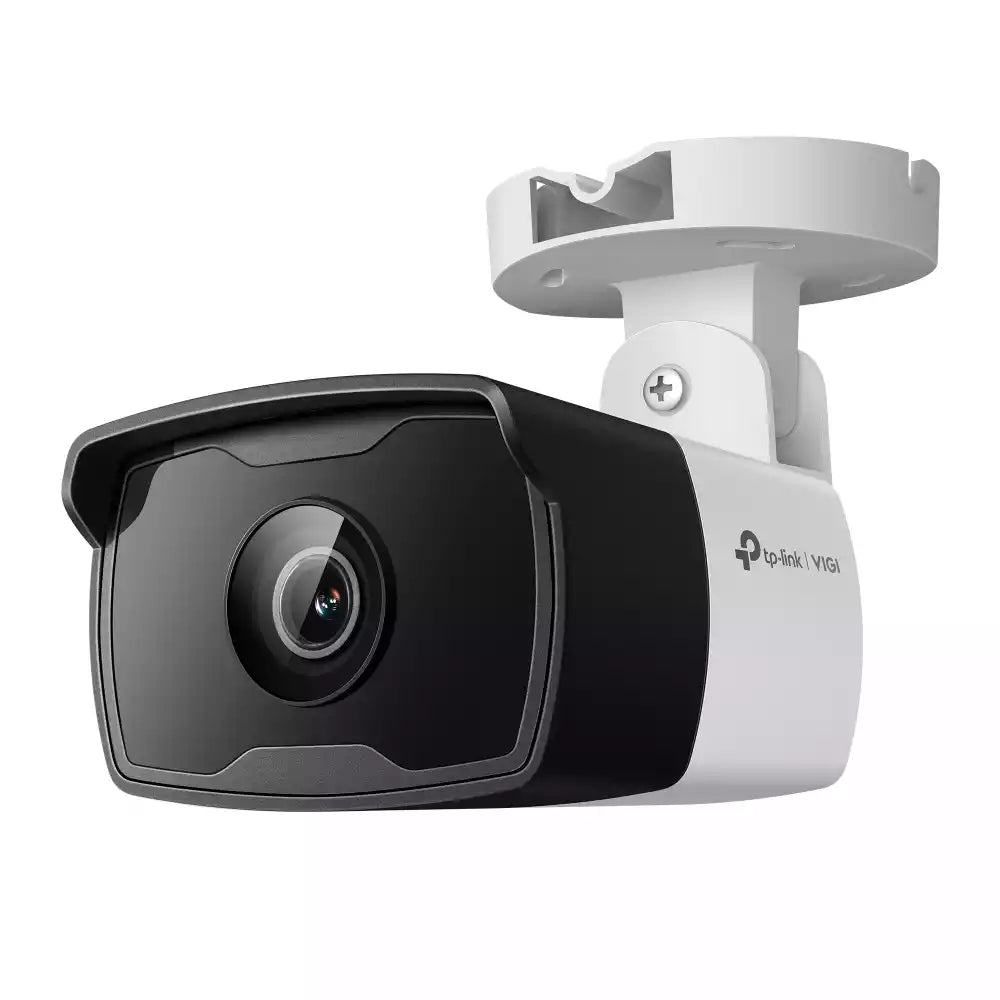

TP-Link VIGI C320I (2.8mm) 2MP Outdoor IR Bullet Network Camera

Buy TP-Link VIGI C320I (2.8mm) 2MP Outdoor IR Bullet Network Camera online at Rs. 7490. Buy complete range of CCTV Camera on Vmart.pk. We Offer home delivery all over Pakistan.

Features:

2MP Full-High Definition: The VIGI C320I camera comes with 2MP — more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

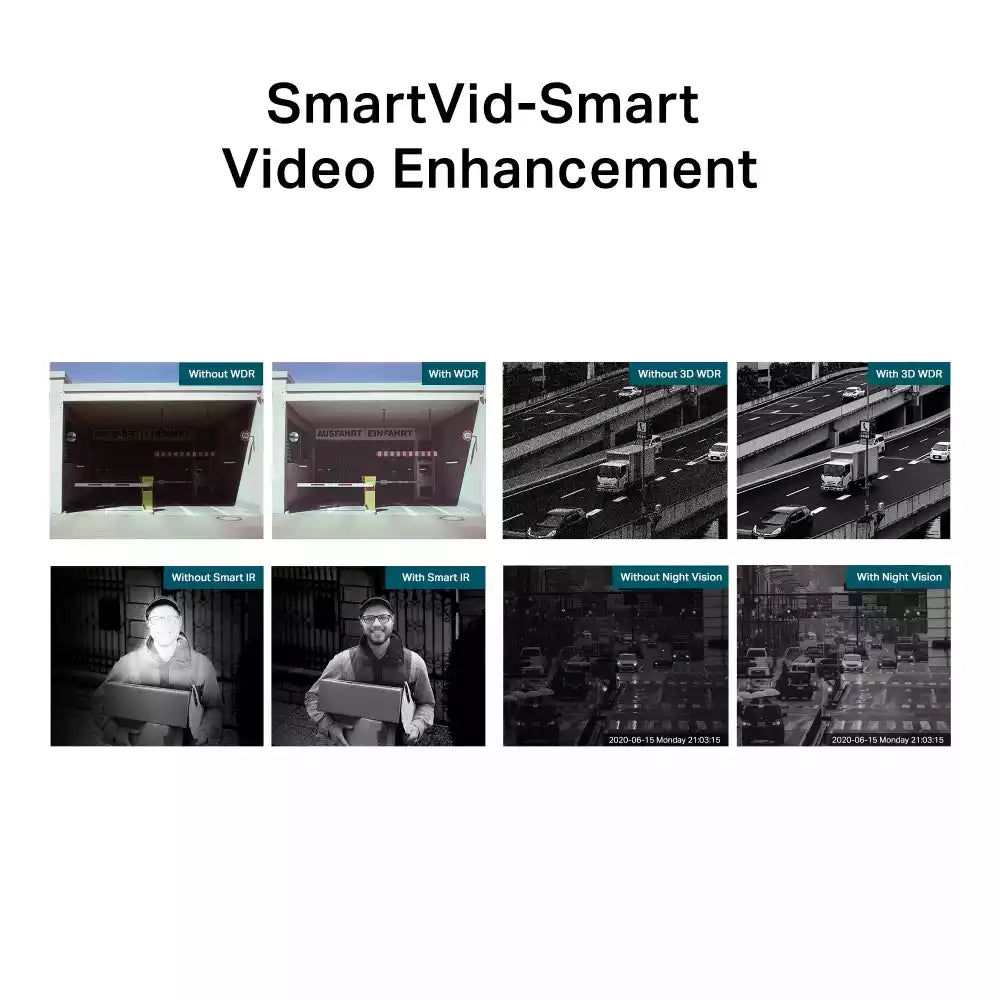

Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

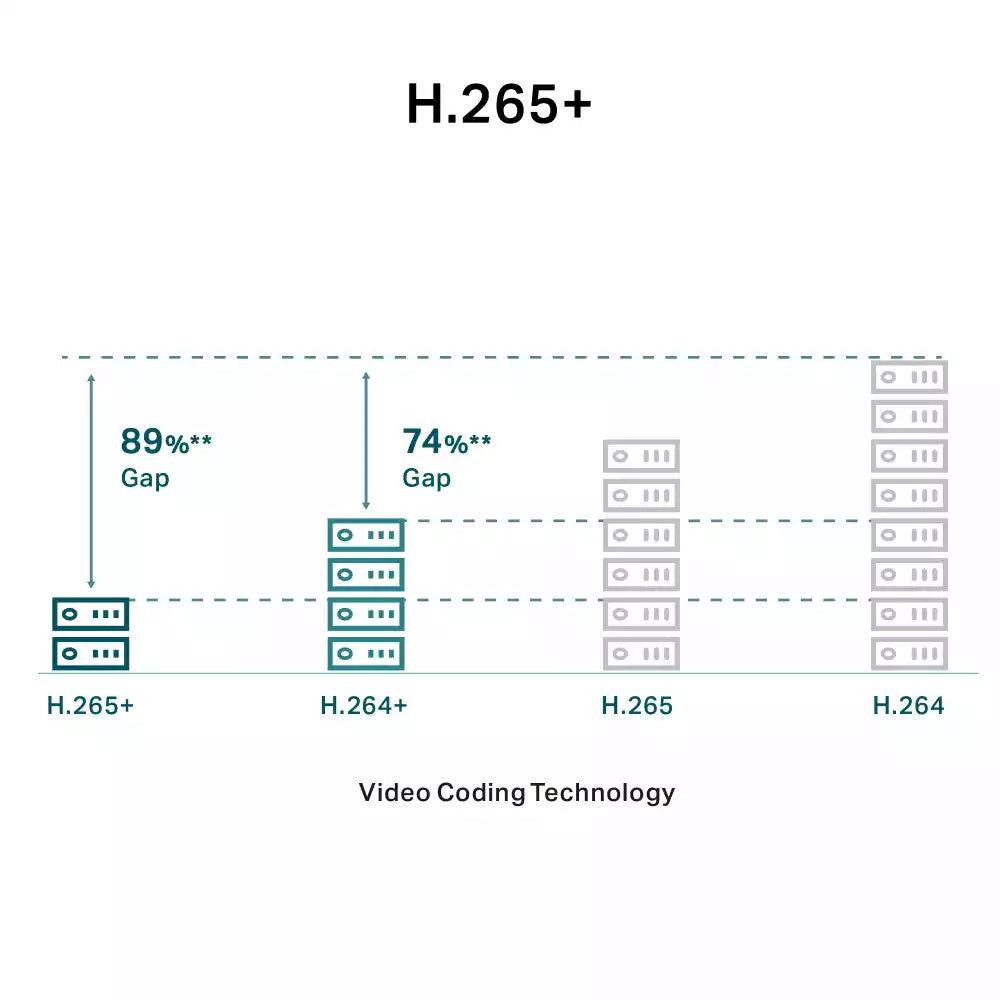

H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Waterproof: Reliable IP67 for stable outdoor performance.
Simplified Deployment with PoE: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.

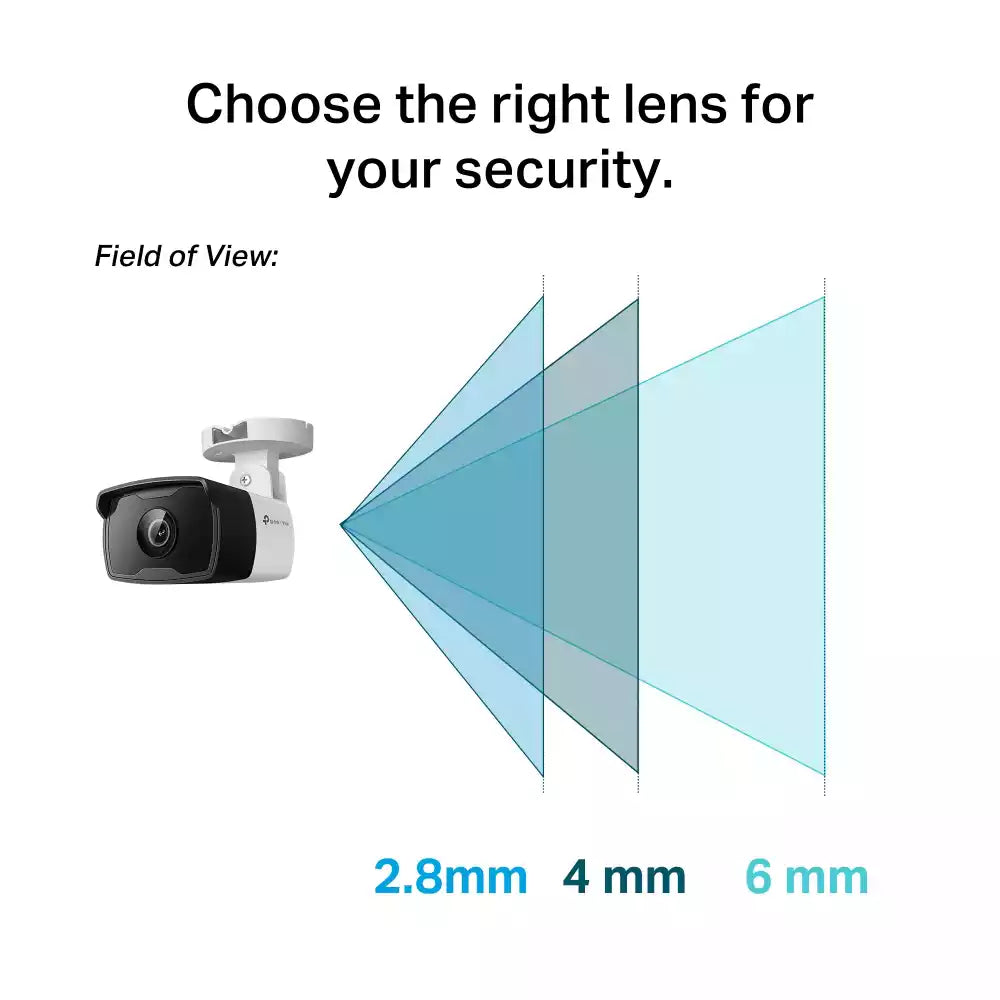

2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C320I comes with three different lens types to better suit your security needs.

Flexible Management: Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.

Specifications:

CAMERA

Image Sensor 1/3” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Aperture 2.8 mm: F2.2
4 mm: F2.0
6 mm: F2.0
Lens 2.8 mm/ 4 mm/ 6 mm
Lens Mount M12
Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism IR Cut Filter
Day/Night Switch Day/Night/Auto/Schedule-Switch
Digital Noise Reduction 3D DNR
WDR DWDR
Weatherproof Rating IP67
IR Working Distance 30m
Viewing Angle 2.8mm: 88.2°/48.7°/106.5°(H/V/D)
4mm: 74.6°/41.3°/88.1°(H/V/D)
6mm: 47.7°/26.5°/56°(H/V/D)

LENS

Type Fixed Focal Lens
Focal Length 2.8 mm/4 mm/6 mm
Aperture 2.8 mm: F2. 2
4 mm: F2.0
6 mm: F2.0
FOV 2.8 mm:
Horizontal FOV: 88.2°, Vertical FOV: 48.6°, Diagonal FOV: 106.5°

4 mm:
Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1°

6 mm:
Horizontal FOV: 47.7°, Vertical FOV: 26.5°, Diagonal FOV: 56°
Lens Mount M12
DORI Distance 2.8 mm:
Detect: 45 m (149 ft)
Observe:19 m (62 ft)
Recognize: 9 m (30 ft)
Identify: 5 m (15 ft)

4 mm:
Detect: 60 m (198 ft)
Observe: 25 m (83 ft)
Recognize: 12 m (40 ft)
Identify: 6 m (20 ft)

6 mm:
Detect: 91 m (297 ft)
Observe: 38 m (124 ft)
Recognize: 18 m (59 ft)
Identify: 9 m (30 ft)

ANGLE ADJUSTMENT (MANUAL)

Range Pan: -90° to 90°
Tilt: -90° to 90°

ILLUMINATOR

IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED N/A
Illuminator On/Off Control Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution 1920 × 1080
Main Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
1920x1080, 1280x960, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps


Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes

AUDIO

Audio Communication N/A
Audio Input Yes
Audio Output N/A
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)

NETWORK

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Message Push
Linkage Method N/A
Output Notification Message Push

INTERFACES

Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm N/A
Reset Button N/A
Power DC Power Port
Button -
Video Output -
On-board Storage N/A
Built-in Microphone N/A
Built-in Speaker N/A
Audio N/A

GENERAL

Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Content VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Dimensions( H X W X D ) 174 × 74 × 71 mm
Material Plastic
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight 0.2 Kg
Gross Weight 0.35 Kg
Max. Power Consumption PoE: Class 0
Power Supply PoE (802.3af/at, class 0)
Protection IP67
Product Dimensions (L x W x H) 73× 174 × 71 mm
Certifications CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE

Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 1920x1080, 1280x960, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution 2MP (1920 × 1080)
Video Streaming Main Stream
Sub-Stream
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Video Bit Rate 64 Kbps to 4 Mbps
Day/Night Switch Day/Night/Auto/Schedule

SMART FEATURE-SET

Smart Event Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
