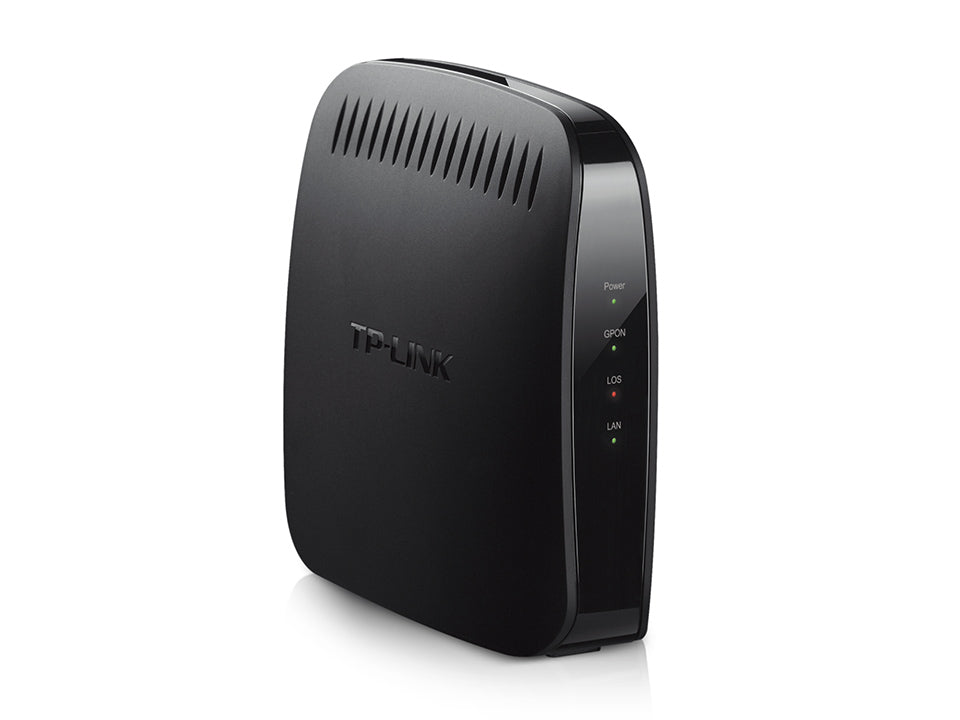

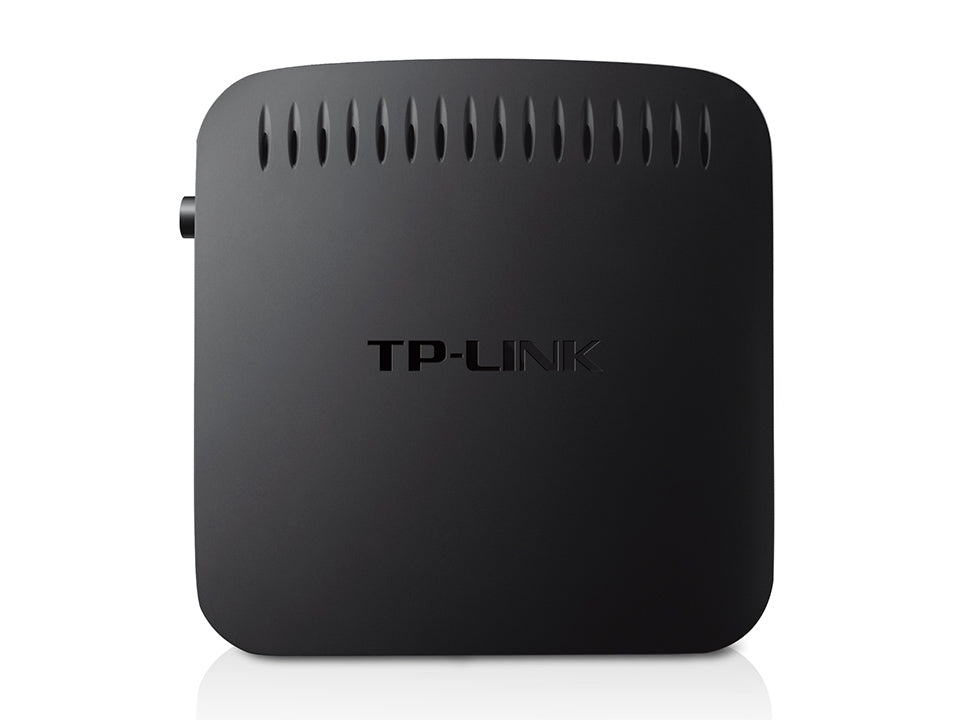

TP-Link TX-6610 1-Port Gigabit GPON Terminal

HARDWARE FEATURES Interfaces 1 10/100/1000Mbps RJ45 Ports 1 SC/APC Port Button 1 Power On/Off Button 1 RESET Button Dimensions (W X D X H) 4.0*1.5*4.2 in.（102.7 x 37.9 x 106.9mm） External Power Supply 9VDC/0.6A IEEE Standards IEEE 802.3, 802.3u, 802.1Q, 802.1p Data Rates Upstream:1.244Gbps Downstream:2.488Gbps Distance 0~ 20Km Max GPON Standards ITU-T G.984.1, G.984.2, G.984.3, G.984.4 Optical Module Class C+ Receiver APD-TIA Transmitter DFB Laser Wavelength Upstream:1310nm Downstream:1490nm SOFTWARE FEATURES Quality of Service Service Flow Classification based on VLAN Schedule rules Support SP/WRR Upstream Priority Label Support 802.1D User Priority Rate Limit and Traffic shaping Congestion Control Support Tail-Drop VLAN 802.1Q tag VLAN VLAN transparent mode/VLAN translation mode/VLAN trunk mode Authentication based on SN and Password VLAN Auto Detect Security AES Encryption Packet Filter based on VLAN Management Managed by Web, OMCI and Telnet, Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic Advanced Functions Upstream and Downstream FEC Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 16 T-CONTs and 256 GEM Ports Optical power detection, Dying Gasp Terminal Silent mechanism 802.3az EEE Energy Conservation IGMP IGMP v2/v3 IGMP Snooping/Proxy OTHERS System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
