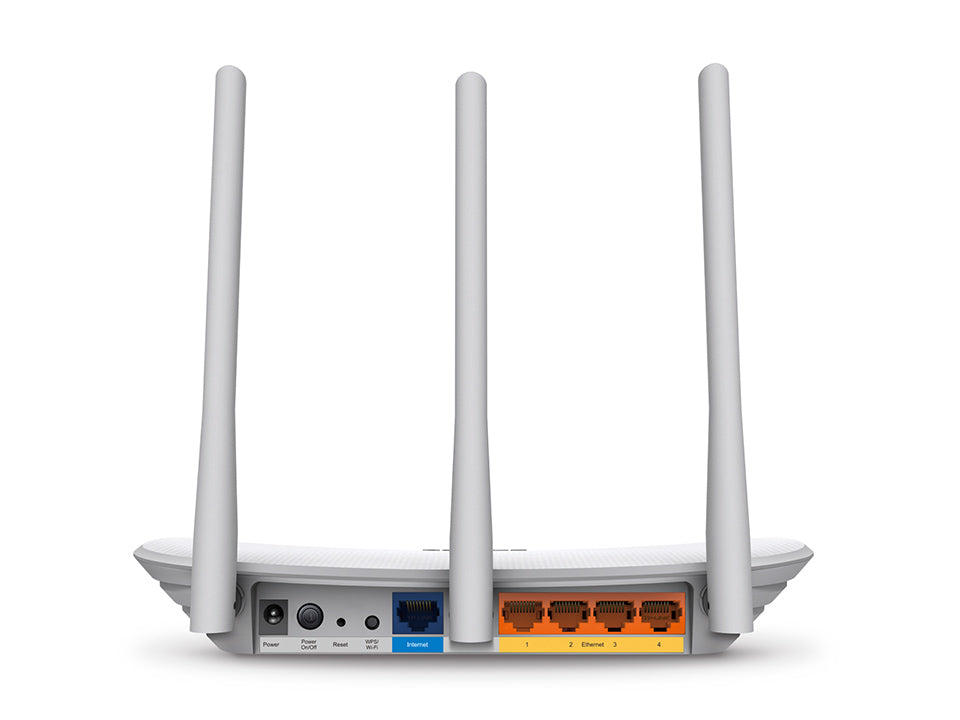

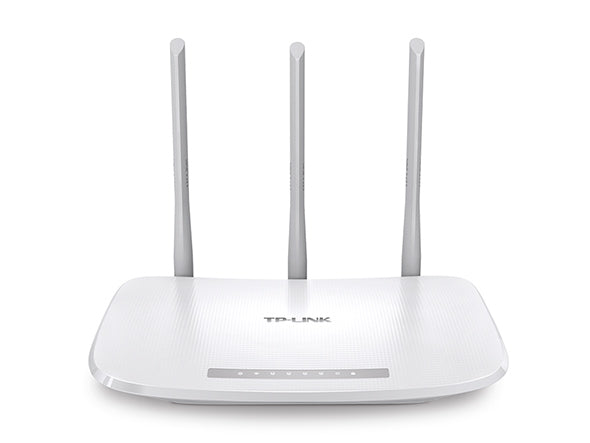

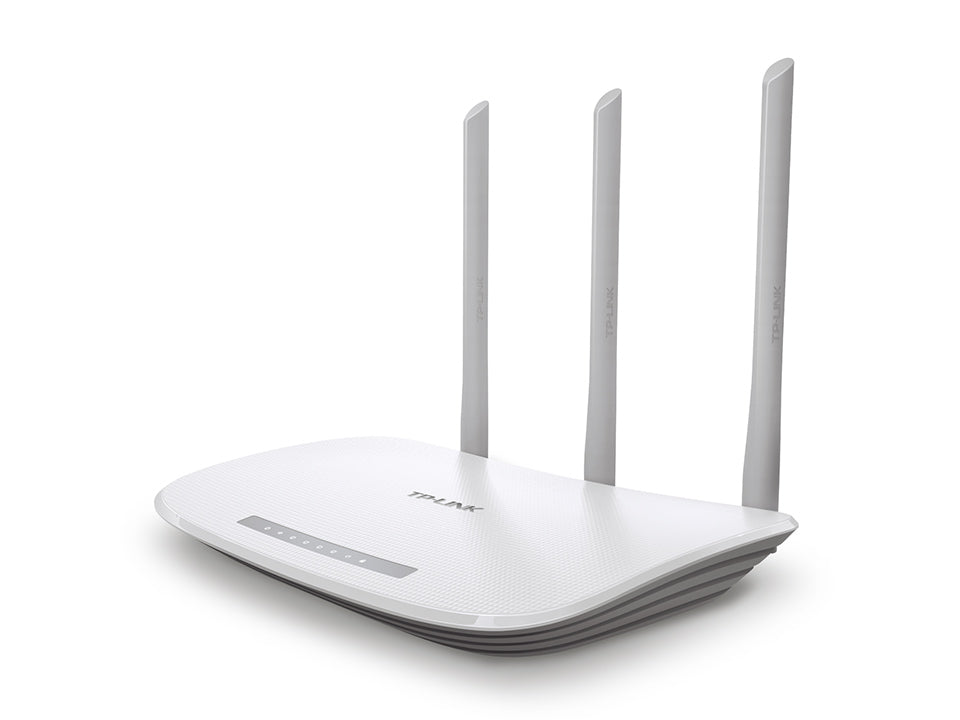

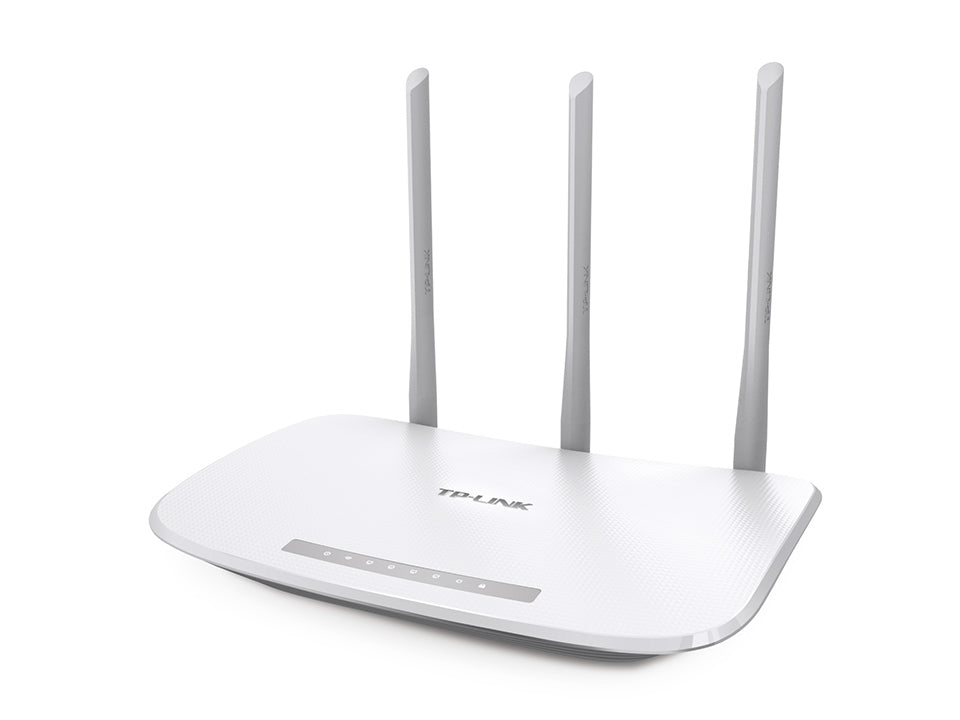

TP-Link TL-WR845N 300Mbps Wireless N Router

Features

• Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 1.2Gbps
• Operates over both the 2.4GHz band(300Mbps) and 5GHz band(867Mbps) for more stable wireless experience Intelligent signal light helps to fi­nd the best location for optimal Wi-Fi coverage by showing the signal strength
• Works with any Wi-Fi router or wireless access point

More Antennas for Greater Coverage

300Mbps Wireless N Router

TL-WR845N

Speedy Wireless N300

The TL-WR845N provides speedy and stable Wi-Fi for your network needed devices. Up to 300Mbps wireless speed makes it a practical solution for home network applications like files download, video chat or online streaming.

Greater Coverage and Enhanced Reliability

Three 5dBi high gain antennas perfect for small to medium house, a better coverage lets you never lost connections and enjoy more stable connection.

Guest Network Access

Guest Network function provides secure access for guests to sharing your Wi-Fi network. Easy sharing, no worry about your private network.

Easy Parental Control

Parent Control allow parents or administrators to deploy restricted access for children or staff. With URL blocking, you can easily set up a black or white list to limit the level of web access

Easy Setup and Manage

Set up the TL-WR845N in minutes thanks to its intuitive web interface and the powerful Tether app. TP-LINK Tether app provides the easiest way to access and manage your router on your smartphone, allows you to start enjoying your new device faster than ever!

Specifications

HARDWARE

Interface

4 10/100Mbps LAN PORTS

1 10/100Mbps WAN PORT

Button

Reset Button

Wi-Fi/WPS Button

Power On/Off Button

Antenna

3*5dBi Fixed Omni Directional Antenna

External Power Supply

9VDC / 0.6A

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H )

9.1 x 5.7 x 1.4 in.(230 x 144 x 35 mm)

WIRELESS FEATURES Frequency

2.4-2.4835GHz

Signal Rate 11n:

Up to 300Mbps(dynamic)

11g:

Up to 54Mbps(dynamic)

11b:

Up to 11Mbps(dynamic)

Reception Sensitivity 270M:

-70dBm@10% PER

130M:

-74dBm@10% PER

108M:

-74dBm@10% PER

54M:

-77dBm@10% PER

11M:

-87dBm@8% PER

6M:

-90dBm@10% PER

1M:

-98dBm@8% PER

Transmit Power CE:

<20dBm

FCC:

<30dBm

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security

64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES Quality of Service

WMM, Bandwidth Control

WAN Type

Dynamic IP/Static IP/PPPoE/

PPTP/L2TP/BigPond

Management

Access Control

Local Management

Remote Management

DHCP

Server, Client, DHCP Client List,

Address Reservation

Port Forwarding

Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS

DynDns, Comexe, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSec (ESP Head)

Access Control

Parental Control, Local Management Control, Host List,

Access Schedule, Rule Management

Firewall Security

DoS, SPI Firewall

IP Address Filter/MAC Address Filter/Domain Filter

IP and MAC Address Binding

Protocols

Support IPv4 and IPv6

Guest Network

2.4GHz Guest Network x1

OTHERS Certification

CE, FCC, RoHS

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7,

Windows8/ 8.1/10

MAC® OS, NetWare®, UNIX® or Linux

Environment Operating Temperature:

0℃~40℃ (32℉~104℉)

Storage Temperature:

-40℃~70℃ (-40℉~158℉)

Operating Humidity:

10%~90% non-condensing

Storage Humidity:

5%~90% non-condensing
