Features
What This Product Does

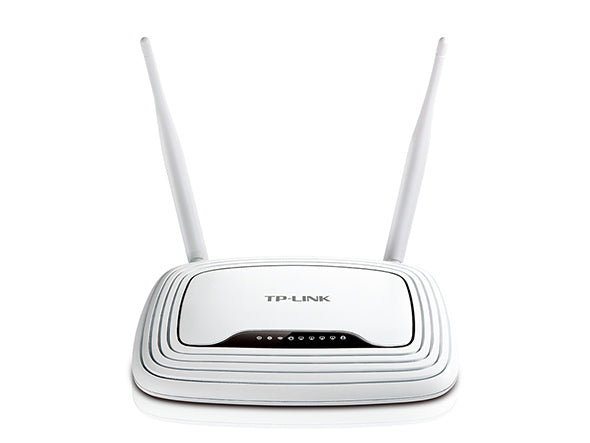

TP-LINK’s TL-WR843ND Wireless AP/Client Router is specially designed for Wireless ISP users, enabling wireless access to the Internet in areas with no wired ISP infrastructure (such as cable or xDSL). With up to 300Mbps wireless speed, it is ideal for interruption sensitive applications like HD video streaming. TL-WR843ND can also serve as a normal wireless router, just like TL-WR841ND does. What’s more, it supports Passive Power over Ethernet, convenient for deployment in areas without power outlets, such as a backyard or an attic.
Client Router Mode – WISP Client
TP-LINK's TL-WR843ND is designed to be set in Client Router mode as its default wireless mode to support a WISP connection. When it works as a WISP client device to access the Internet, local computers can connect to TL-WR843ND via wireless or cables.
300Mbps Wireless N - Speed & Range
With transmission rates up to 300Mbps, users can run bandwidth intensive devices including VoIP, HD streaming, or online gaming, without the lag. Using its powerful N technologies, the router is also able to mitigate data loss over long distances and through obstacles.
Passive PoE Support – Flexible Deployment
The TL-WR843ND is equipped with a RJ-45 WAN port, which is designed to support Passive PoE. For users that require a better WISP signal and need to place the device at location without power outlets, such as an attic or garage, the TL-WR843ND will fit the bill flawlessly with up to 30 meters Power over Ethernet capability. Users can easily have the most flexible deployment and don't have to be tethered to any outlets!
WPS
Instantly setup WiFi connections simply by pressing the "WPS" button.
Specifications
HARDWARE FEATURES | |
---|---|

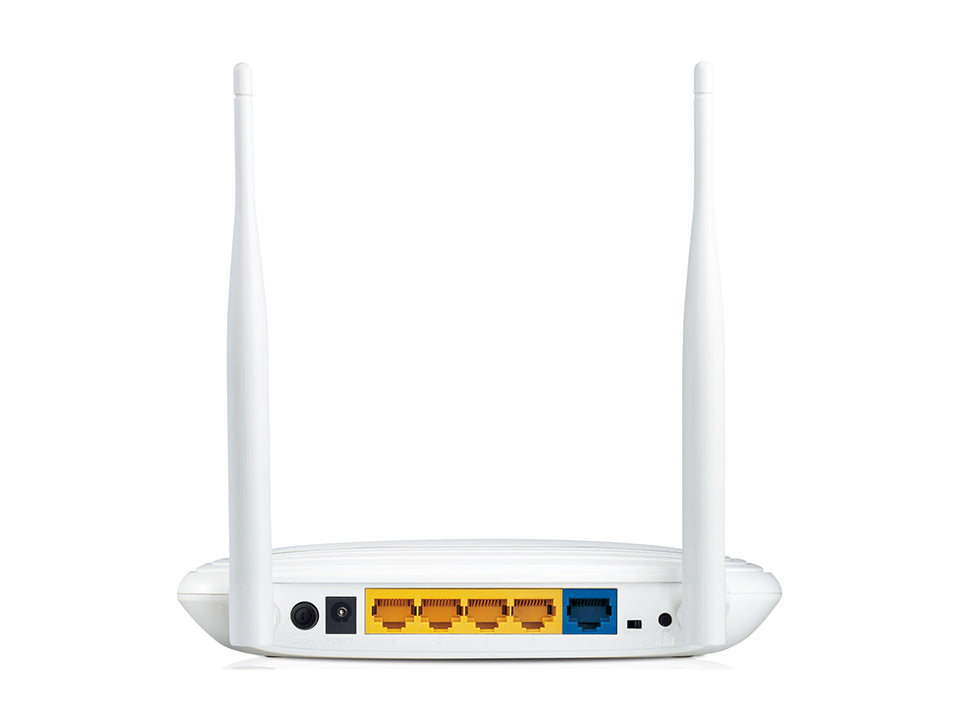

Interface | 4 10/100Mbps LAN Ports 1 10/100Mbps WAN Port |
Button | WPS/Reset Button Operation Mode Switch Power On/Off Button |
External Power Supply | 9VDC / 0.85A |
Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Antenna | 2*5dBi Detachable Omni Directional Antenna (RP-SMA) |
Dimensions ( W x D x H ) | 7.6 x 5.1 x 1.3 in.(192 x 130 x 33 mm) |
WIRELESS FEATURES | |
---|---|
Frequency | 2.4-2.4835GHz |
Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
Reception Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
Transmit Power | <20dBm(EIRP) |
Wireless Modes | Client Router / Router |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security | 64/128/152-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
SOFTWARE FEATURES | |
---|---|
WAN Type | Dynamic IP/Static IP/PPPoE/ PPTP(Dual Access)/L2TP(Dual Access)/BigPond |
DHCP | Server, Client, DHCP Client List, Address Reservation |
Quality of Service | WMM, Bandwidth Control |
Port Forwarding | Virtual Server,Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, Comexe, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security | DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
Management | Access Control Local Management Remote Management |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | 300Mbps Wireless N AP/Client Router TL-WR843ND Power Adapter RJ45 Ethernet Cable Passive PoE Power Injector Resource CD Quick Installation Guide |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Warranty
18 months local warranty
