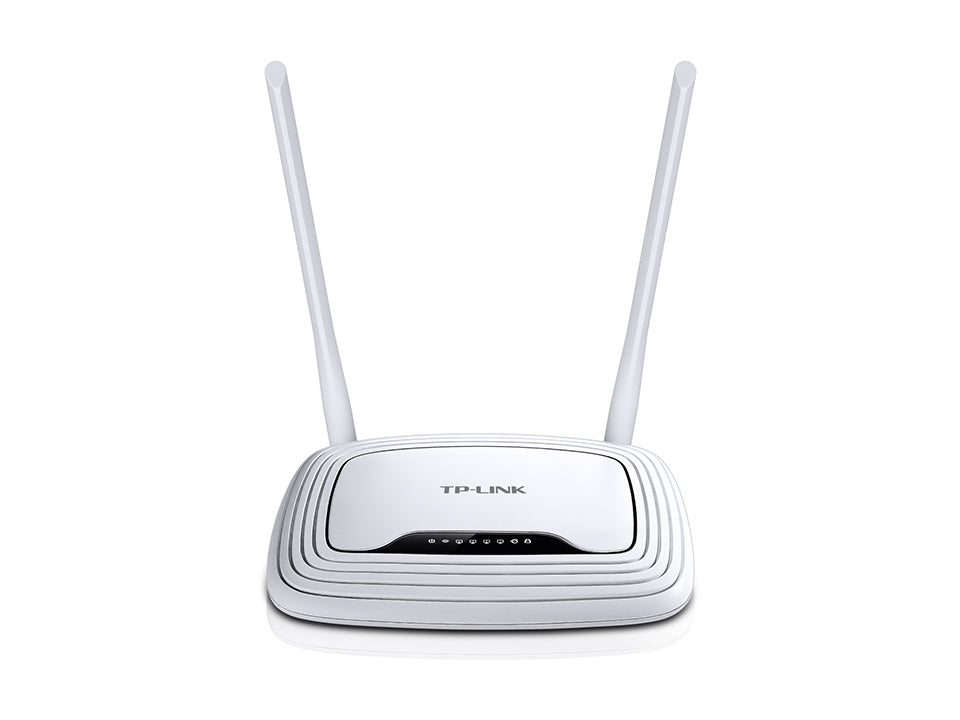

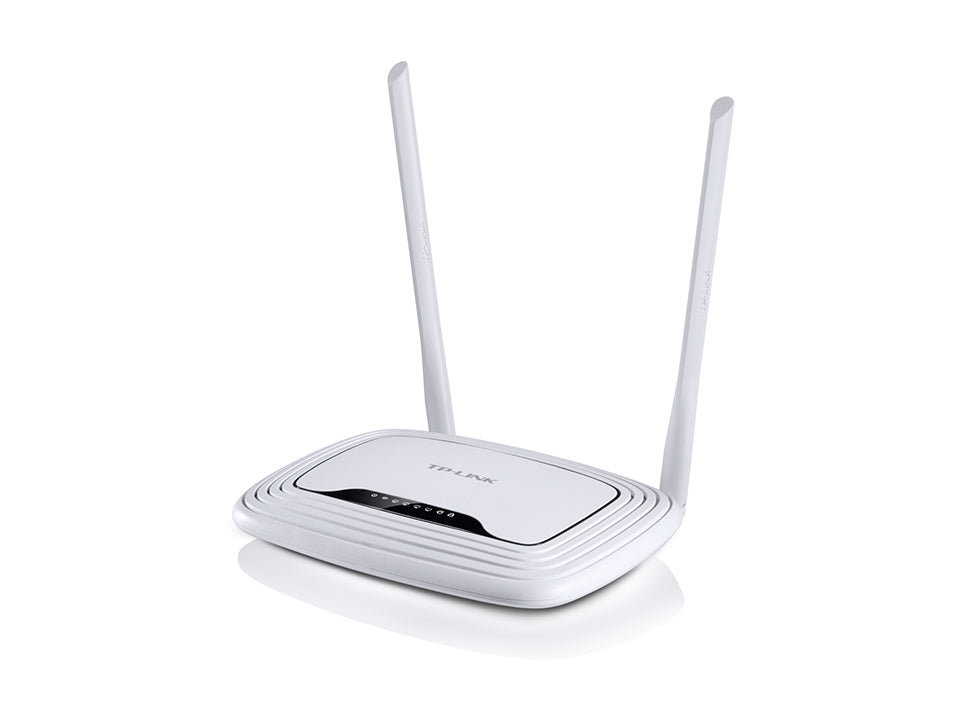

TP-Link TL-WR843N 300Mbps Wireless AP/Client Router

Features

300Mbps Wireless AP/Client Router TL-WR843N

TL-WR843N

• Wireless ISP function provides the wireless Internet access in areas without wired ISP infrastructure
• 300Mbps wireless speed ideal for latency sensitive applications like HD video streaming
• Easily setup a WPA2 encrypted secure connection at a push of the WPS button
• WAN Port supports up to 30 meters (100 feet) Passive Power over Etherne
• WDS wireless bridge provides seamless bridging to expand your wireless network

What This Product Does

TP-LINK’s TL-WR843N Wireless AP/Client Router is specially designed for Wireless ISP users, enabling wireless access to the Internet in areas with no wired ISP infrastructure (such as cable or xDSL). With up to 300Mbps wireless speed, it is ideal for interruption sensitive applications like HD video streaming. TL-WR843N can also serve as a normal wireless router, just like TL-WR841N does. What’s more, it supports Passive Power over Ethernet, convenient for deployment in areas without power outlets, such as a backyard or an attic.

Client Router Mode – WISP Client

TP-LINK's TL-WR843N is designed to be set in Client Router mode as its default wireless mode to support a WISP connection. When it works as a WISP client device to access the Internet, local computers can connect to TL-WR843N via wireless or cables.

300Mbps Wireless N - Speed & Range

With transmission rates up to 300Mbps, users can run bandwidth intensive devices including VoIP, HD streaming, or online gaming, without the lag. Using its powerful N technologies, the router is also able to mitigate data loss over long distances and through obstacles.

Passive PoE Support – Flexible Deployment

The TL-WR843N is equipped with a RJ-45 WAN port, which is designed to support Passive PoE. For users that require a better WISP signal and need to place the device at location without power outlets, such as an attic or garage, the TL-WR843N will fit the bill flawlessly with up to 30 meters Power over Ethernet capability. Users can easily have the most flexible deployment and don't have to be tethered to any outlets!

WPS

Instantly setup WiFi connections simply by pressing the "WPS" button.

Specifications

HARDWARE FEATURES

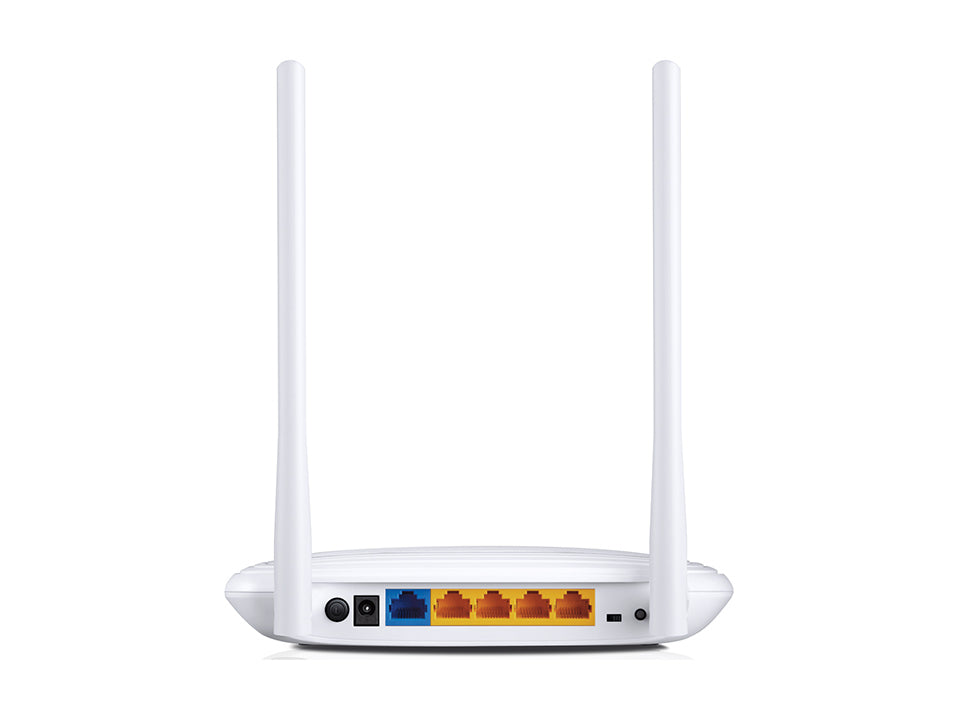

Interface 4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port

Button WPS/Reset Button
Operation Mode Switch
Power On/Off Button

Antenna 2*5dBi Omni Directional Antenna (RP-SMA)

External Power Supply 9VDC / 0.85A

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ) 7.6 x 5.3 x 1.3 in.(192 x 134 x 33 mm)

Antenna Type Fixed Omni Directional Antenna

Antenna Gain 2*5dBi

WIRELESS FEATURES

Frequency 2.4-2.4835GHz

Signal Rate

11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception Sensitivity

270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Transmit Power

EU version<20dBm

Wireless Modes Client Router / Router

Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security 64/128/152-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

SOFTWARE FEATURES

Quality of Service WMM, Bandwidth Control

WAN Type

Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond

Management

Access Control
Local Management
Remote Management

DHCP

Server, Client, DHCP Client List,
Address Reservation

Port Forwarding Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS DynDns, Comexe, NO-IP

VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)

Access Control

Parental Control, Local Management Control, Host List, Access Schedule, Rule Management

Firewall Security

DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding

Protocols Support IPv4 and IPv6

Guest Network 2.4GHz Guest Network x1

OTHERS

Certification CE, RoHS

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows8/ 8.1/10
MAC® OS, NetWare®, UNIX® or Linux

Environment

Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
