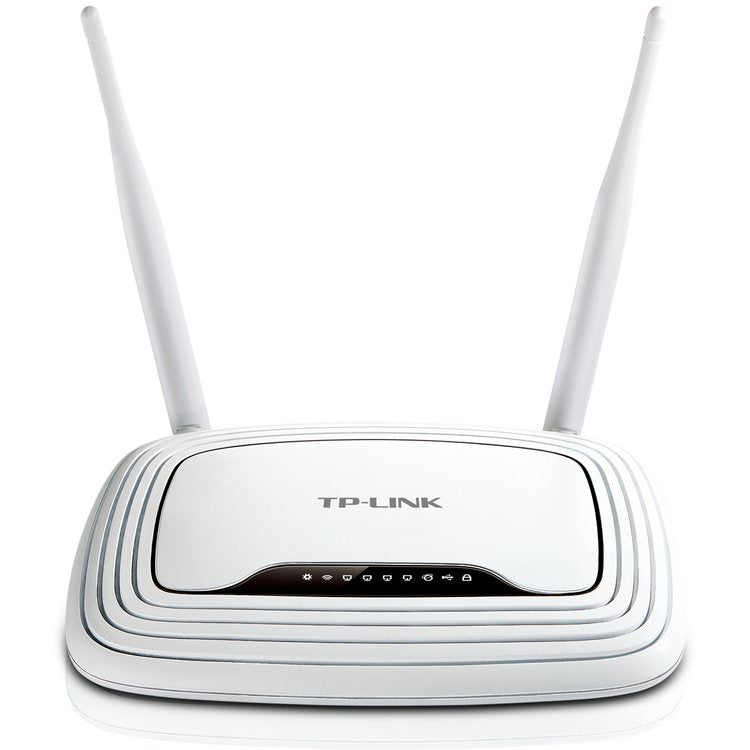

As a 300Mbps multi-function wireless N router, the TL-WR842ND provides 300Mbps high transmission rates that guarantee interruption-free HD media streaming, online gaming, Skype calls or speedy file transfer from one device to another. Using its FTP server function, the router provides various applications such as downloading personal data from home or backing up files to a home HDD. It also features wireless printer sharing throughout the network, making your home or office printing work more free and flexible. Furthermore, multiple SSIDs offer easy wireless network isolation to ensure the safety of your data and VPN tunnels provide site-to-site security connections.
300Mbps Wireless Speed
With Wireless speed up to 300Mbps, TL-WR842ND ensures speedy, uninterrupted wireless coverage for home and office networking.
Multi-SSID Networking - Easy and Safe for Wireless Sharing
TL-WR842ND supports up to 4 SSIDs. It’s uniquely designed for users to set up additional wireless networks with another SSID and Password for guests or friends. This ensures users are safe and there are no performance conflicts with different networks.
Virtual Private Network (VPN) - Up to 5 IPSec Based VPN Tunnels
Based on the IPSec protocol, TL-WR842ND allows users to setup up to 5 VPN tunnels with IKE (Internet Key Exchange) protocol on various encryption algorithms (DES/3DES/AES) and authentication algorithms (MD5/SHA1). It’s convenient for users to connect to their home or office networks wherever the Internet is available.
Versatile USB Sharing
The TL-WR842ND’s USB 2.0 configuration allows users to share data stored on USB storage or an FTP server. Users can also share music, video and photos via the router’s built-in Media Server. What’s more, the device’s built-in Print Server makes home or office printing much more flexible.
IP QoS -- Control Bandwidth Reasonably
Within the wireless network, indiscriminate Internet surfing and bandwidth-guzzling downloads by internal users often leave homes or small offices with insufficient bandwidth. TL-WR842ND supports an IP QoS function, allowing optimum utilization of bandwidth and offering bandwidth control over congestion, preventing bandwidth abuse. In this way, the users of a small network receive committed and specific bandwidth, preventing non-critical applications from degrading network performance.
One Button for Secure Setup
TL-WR842ND features Wi-Fi Protected Setup™ (WPS) that allows users to almost instantly setup their secure network simply by pressing the "WPS" button on the router automatically establishing a WPA2 secure connection, which is more secure than WEP encryptions. Not only is this faster than normal secure setups but more convenient in that you don't need to remember a password!
Easy To Use
Even novice users can easily setup their networking products. The device comes with a CD featuring an Easy Setup Assistant that leads you through the setup process step-by-step, and even helps with wireless network settings and security configurations.
Features
300Mbps Wireless Speed makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming and online gaming
Up to 4 SSIDs allows users to establish additional wireless networks with another SSID and password for guests or friends
Up to 5 VPN Tunnels allow users to transfer files or documents between their laptop at home or in the hotel and the office
USB connected printer sharing allows a Printer to be shared with multiple clients
Local file & media sharing with Samba, Media Server (PC, X-BOX 360 and PS3 Support) or through the Internet with FTP server function.
Easy Setup Assistant provides quick & hassle-free installation
WPS Button allows users to easily setup a WPA encrypted secure connection
Wi-Fi On/Off Button allows users to simply turn their wireless radio on or off
Bandwidth Control (IP QoS) assures download speeds and quality of multimedia streaming
Live Parental Control allows administrators to establish restricted access for children or staff
Specifications
HARDWARE FEATURES | |
---|---|
Interface |

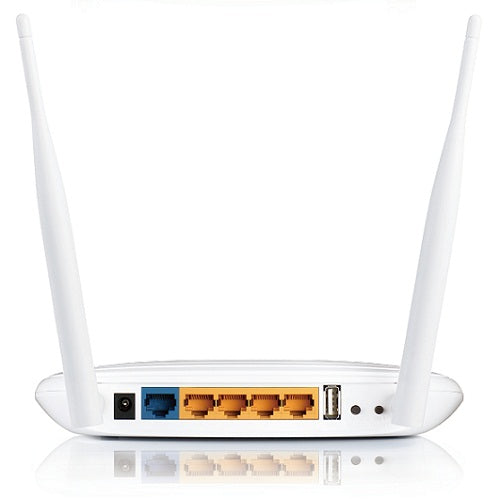

4 10/100Mbps LAN Ports 1 10/100Mbps WAN Port 1 USB 2.0 Port |
Button |
WPS Button WiFi On/Off Button: Reset Button |
External Power Supply | 12VDC / 1.0A |
Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Antenna | 2*5dBi Detachable Omni Directional Antennas (RP-SMA) |
Dimensions ( W x D x H ) | 7.6 x 5.1 x 1.3 in.(192 x 130 x 33 mm) |
WIRELESS FEATURES | |
---|---|
Frequency | 2.4-2.4835GHz |
Signal Rate | Up to 300Mbps |
EIRP | <20dBm |
Reception Sensitivity |
270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security | 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
SOFTWARE FEATURES | |
---|---|
WAN Type |
Dynamic IP/Static IP/PPPoE/ PPTP/L2TP/BigPond |
DHCP |
Server, Client, DHCP Client List, Address Reservation |
Quality of Service | WMM, Bandwidth Control |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, Comexe, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec(ESP Head) |
Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
USB Sharing | Support Samba/FTP/Media Server/Printer Connection |
Management |
Access Control Local Management Remote Management |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents |
TL-WR842ND 2 Detachable Omni Directional Antennas Power Supply Unit Resource CD RJ-45 Ethernet Cable Quick Installation Guide |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux |
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
