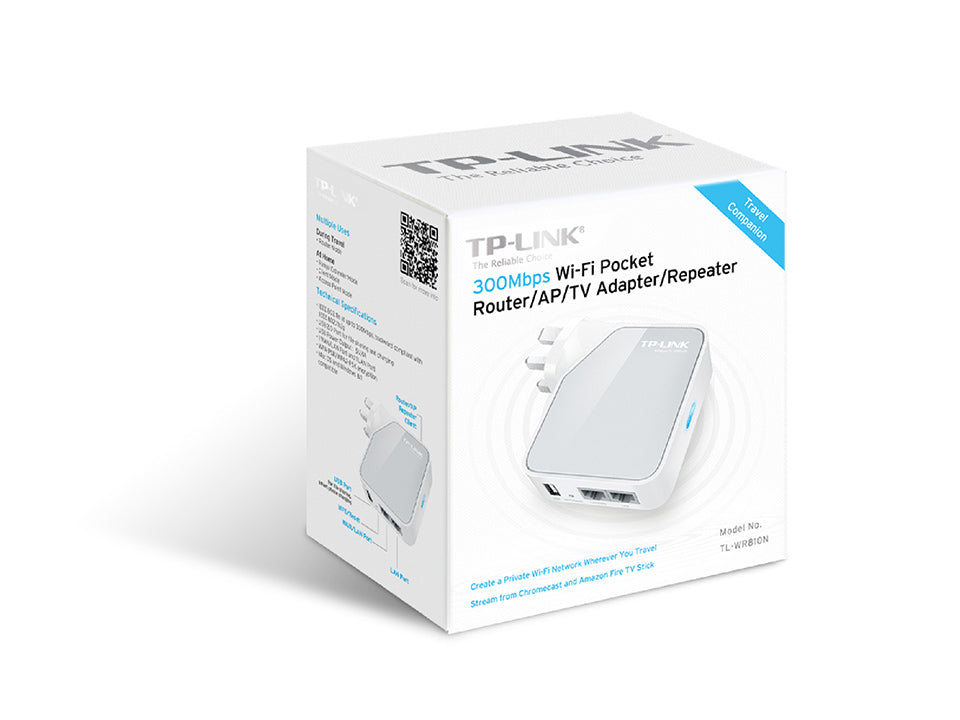

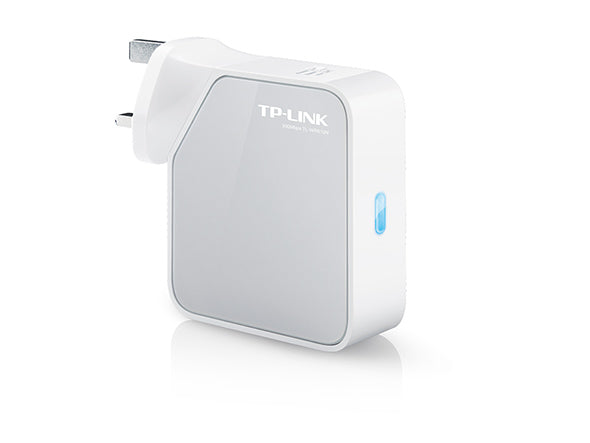

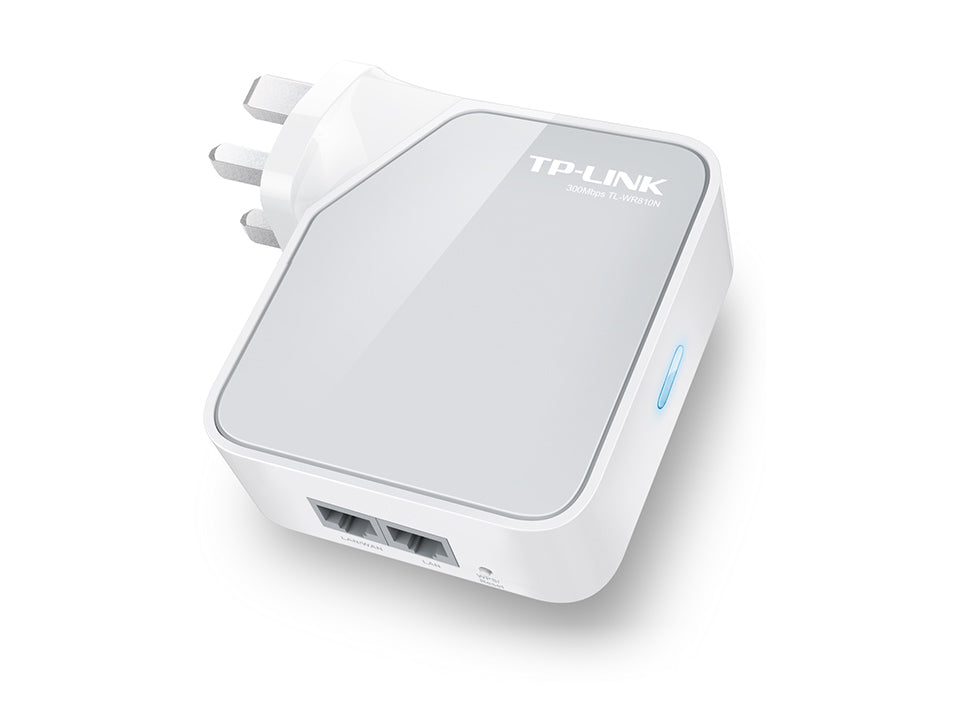

TP-Link TL-WR810N 300Mbps Wi-Fi Pocket Router/AP/TV Adapter/Repeater

Features

300Mbps Wi-Fi Pocket Router/AP/TV Adapter/Repeater
TL-WR810N


• Portable design, ideal for travel and home use
• Built-in power adapter, no bulky adapter needed
• Supports Wireless Router, Range Extender, Client and Access Point modes
• One switch for changing multiple modes
• Versatile USB port for file sharing and charging

Create an Instant Wi-Fi Hotspot!

300Mbps Wi-Fi Pocket Router /AP/ TV Adapter/Repeater

TL-WR810N

Portable and Compact

The compact size of the TL-WR810N means that you can put it in your pocket and take it with you, sharing Internet access wherever you go. The built-in adapter makes it perfect for travelers, students, and anyone else living life on the go.

Multiple Operating Modes
Ideal for Home and Travel Use

To meet the wireless needs of almost any situation you might encounter, the TL-WR810N features Router, Range Extender, Client, and Access Point Modes.

On the Road

Router Mode

Instantly create a private wireless network and share Internet access with multiple Wi-Fi devices. Ideal for use in most hotels.

* Share your Internet connection and enjoy streaming content on a Chromecast or Amazon Fire TV Stick while you travel.

At Home

Range Extender Mode

Extend existing Wi-Fi to improve signal strength and maximize coverage.

Client Mode

Allow devices that require a wired connection to access an existing Wi-Fi network.

Access Point Mode

Create a wireless network for Wi-Fi enabled devices.

One Switch Allows You to Access Multiple Modes

The external switch makes it easy to change modes. You will be able to access three different options,
including Router/AP Mode, Range Extender Mode, and Client Mode.

Multifunctional USB Port for File Sharing and Charging


Specifications

HARDWARE FEATURES

Interface

1 10/100Mbps WAN/LAN Port, 1 10/100Mbps LAN Port
1 USB Port
1 Reset Button
1 Operation Mode Switch

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ) 3.3 x 3.0 x 1.1 in. (85 x 75 x28 mm)

Antenna Type On-Board

WIRELESS FEATURES

Frequency 2.4-2.4835GHz

Signal Rate

11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception Sensitivity

270M: -70dBm@10% PER
130M: -75dBm@10% PER
108M: -88dBm@10% PER
54M: -78dBm@10% PER
11M: -100dBm@8% PER
6M: -92dBm@10% PER
1M: -100dBm@8% PER

Transmit Power

CE:
<20dBm(2.4GHz)
FCC:
<30dBm

Wireless Modes Router, Access Point, Client, Repeater

Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM,Wireless Statistics

Wireless Security 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

SOFTWARE FEATURES

Quality of Service WMM, Bandwidth Control

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Management

Access Control
Local Management
Remote Management

DHCP

Server, Client, DHCP Client List,Address Reservation

Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS DynDns, Comexe, NO-IP

VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)

Access Control

Local Management Control, Host List, Access Schedule, Rule Management

Firewall Security

DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding

Protocols Support IPv4 and IPv6

Guest Network 2.4GHz Guest Network x1

OTHERS

Certification CE, FCC, RoHS

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
