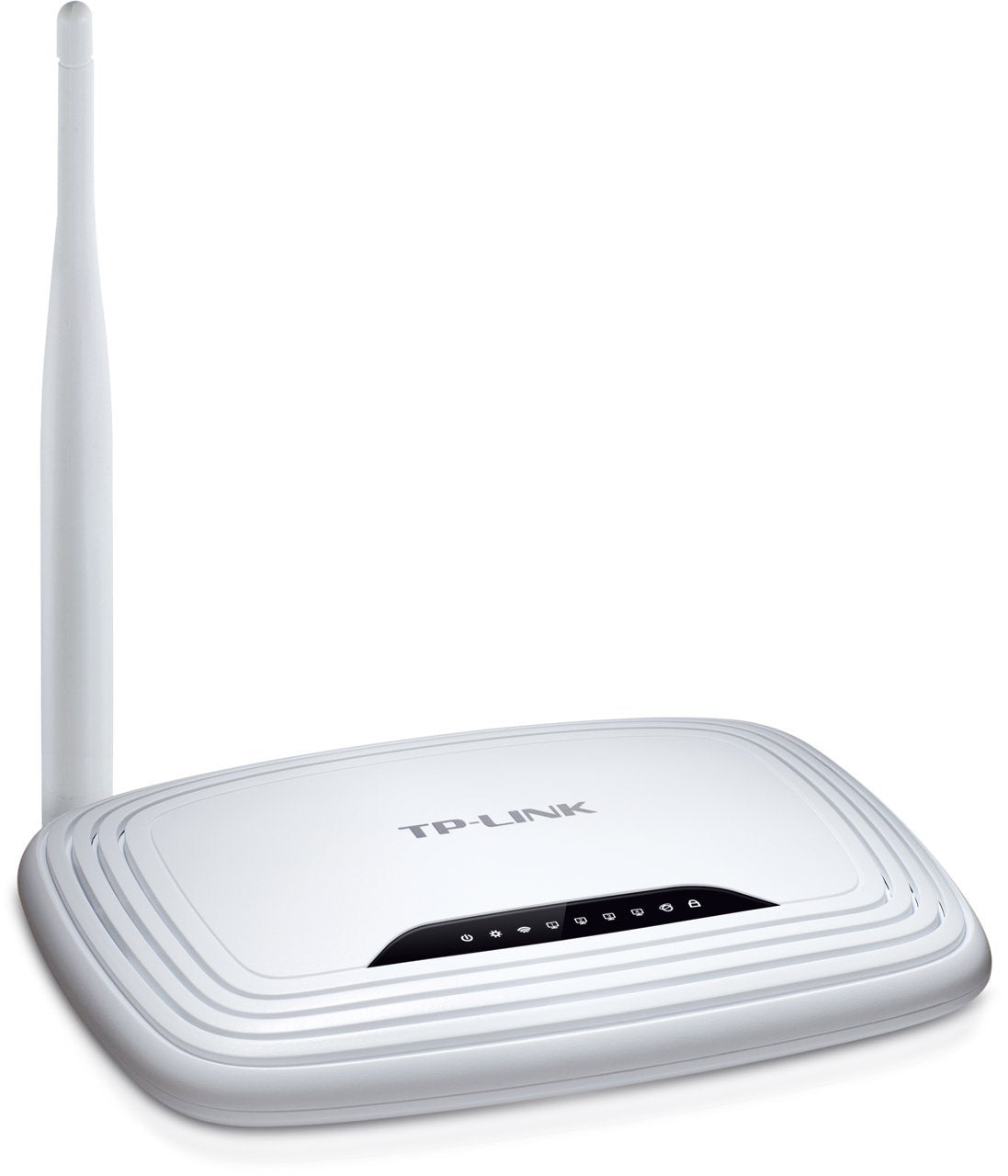

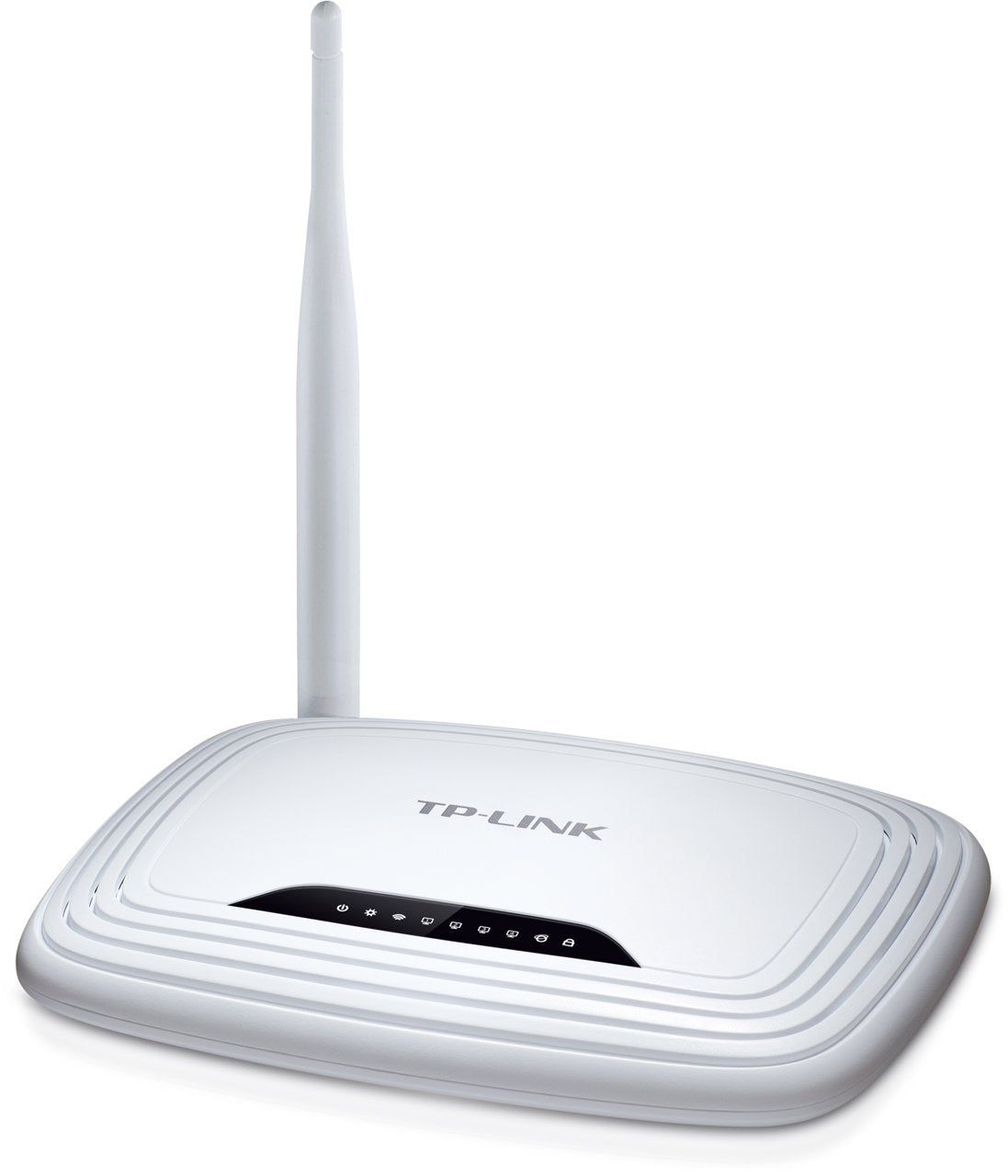

TP-Link TL-WR743ND 150Mbps Wireless AP/Client Router

Brand: TP-Link
SKU: WR743ND
Availability: Many In Stock
Rs.2,730
Rs.2,730
Please hurry! Only 0 left in stock
  • Default Title
TP-Link TL-WR743ND 150Mbps Wireless AP/Client Router

TP-Link TL-WR743ND 150Mbps Wireless AP/Client Router

Rs.2,730

TP-Link TL-WR743ND 150Mbps Wireless AP/Client Router

Rs.2,730

Buy TP-Link TL-WR743ND 150Mbps Wireless AP/Client Router online for Rs.2450 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of TP-Link products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.




Highlights:

  • Wireless ISP function provides the wireless Internet access in areas with on wired ISP infrastructure
  • Easily setup a WPA encrypted secure connection at a push of the WPS button
  • WAN Port supports up to 30 meters (100 feet) Passive Power over Ethernet
  • WDS wireless bridge provides seamless bridging to expand your wireless network



What This Product Does
TP-LINK’s TL-WR743ND Wireless AP/Client Router is specially designed for Wireless ISP users, enabling wireless access to the Internet in areas with no wired ISP infrastructure (such as cable or xDSL). With multiple integrated functions, TL-WR743ND can also serve as a normal wireless router or an access point. What’s more, it supports Passive Power over Ethernet, convenient for deployment in areas without power outlets, such as a backyard or outdoor environments.



Client Router Mode – WISP Client
TP-LINK's TL-WR743ND is designed to be set in Client Router mode as its default wireless mode to support a WISP connection. When it works as a WISP client device to access the Internet, local computers can connect to TL-WR743ND via wireless or cables.



150Mbps Wireless N - Speed & Range
Complying with the IEEE 802.11n standard, the TL-WR743ND can establish a wireless network and get up to 9x the speed and 4x the range of legacy IEEE 802.11g products. With transmission rates up to 150Mbps, users can experience a more fluid Internet surfing experience, including sharing files, streaming media and making Internet calls.



Passive PoE Support – Flexible Deployment
The TL-WR743ND is equipped with a RJ-45 WAN port, which is designed to support Passive PoE. For users that require a better WISP signal and need to place the device at location without power outlets, such as an attic or garage, the TL-WR743ND will fit the bill flawlessly with up to 30 meter Power over Ethernet capability. Users can easily have the most flexible deployment and don't have to be tethered to any outlets!


WPS Button - One Button Setup Security
The TL-WR743ND features Wi-Fi Protected Setup™ (WPS) that allows users to almost instantly setup their security simply by pressing the "WPS" button automatically establishing a WPA2 secure connection, which is more security compared with WEP encryptions. Not only is this faster than normal security setups but more convenient in that you don’t need to remember a password!



Features

  • 150Mbps wireless data transfer ideal for lag-free video streaming, online gaming and Internet calling
  • Client Router Mode supports WISP Internet connection, allowing users to share an Internet connection wirelessly or via cables
  • WAN Port supports up to 30 meters (100 feet) Passive Power over Ethernet
  • Easily setup a WPA encrypted secure connection at a push of the WPS button
  • WDS wireless bridge provides seamless bridging to expand the wireless network
  • IP QoS ensures smooth video streaming or lag-free online gaming experience
  • Built-in NAT and DHCP servers support static IP address distribution
  • Supports PPPOE, Dynamic IP, Static IP, L2TP, PPTP, BigPond Cable Internet access
  • Supports Virtual Server, DMZ, UPnP, DDNS, Static Routing, VPN Pass-through
  • Supports WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) authentication
  • Supports configuration backup/restore and firmware upgrades
  • Fully compatible with all IEEE 802.11 b/g/n products
  • Detachable antenna allows for stronger antenna upgrades (RP-SMA connector)
  • Built-in Quick Setup Wizard for easy network settings and security configurations

Specifications

HARDWARE FEATURES
Interface 4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port
Button WPS Button
Reset Button
Power On/Off Button
External Power Supply 9VDC / 0.6A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna 5dBi Detachable Omni Directional (RP-SMA)
Dimensions ( W x D x H ) 6.9 x 4.6 x 1.3 in. (174 x 118 x 33 mm)
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power CE:
<20dBm(2.4GHz)
FCC:
<30dBm
Wireless Modes Client Router / Router / Repeater / Bridge with AP / Client
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP/BigPond
DHCP Server, Client, DHCP Client List, Address Reservation
Quality of Service WMM, Bandwidth Control
Port Forwarding Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Management Access Control
Local Management
Remote Management
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-WR743ND
1 detachable Omni directional antenna
Passive PoE Power Injector
Power supply unit
Resource CD
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing



Warranty

18 months local warranty



Online prices, specifications, description and images generally match actual, but may vary and are subject to change without notice. Vmart cannot be held liable for errors or omissions.

Please verify the specifications at the time of purchase. No claim whatsoever would be accepted in case of specification error/mismatch, once the product is sold.
