Features
What This Product Does

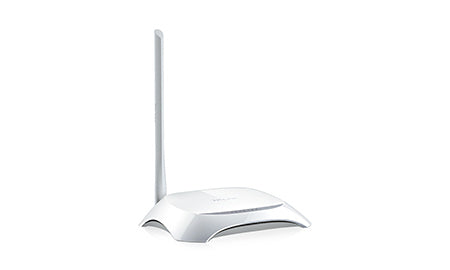

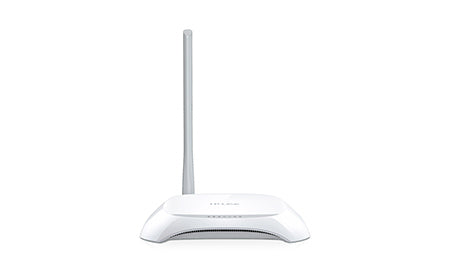

The TL-WR720N is a simple and secure way to share your high-speed Internet connection at Wireless-N speeds for surfing the Internet, email or online chat. The wireless N Router is 802.11b & g compatible and gives users 802.11n performance up to 150Mbps at a remarkably affordable price. Bordering on 11n and surpassing 11g speed enables bandwidth-intensive applications such as video streaming. Users can enjoy a high quality experience when video streaming, using VoIP, or gaming online wirelessly, not previously practical with 11g devices.
Exceptional Wireless Performance at an Affordable Price
TP-LINK’s TL-WR720N is a high speed solution that is compatible with IEEE 802.11b/g/n. Based on 802.11n technology, TL-WR720N gives users wireless performance at up to 150Mbps, 9X the speed and 4x the range of traditional 11g products. Enjoy N Power at a G Price!
Multi-SSID Networking - Simple and Secure Wireless Sharing
TL-WR720N supports up to 4 SSIDs. It’s uniquely designed for users to set up additional wireless networks with additional SSIDs and Passwords for guests or friends. This ensures users are safe and there are no performance conflicts with different networks.
CCA Technology - Stable Wireless Signals
Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhancing wireless performance.
IP QoS -- Controlled Bandwidth Allocation
The speed of your wireless network is extremely temperamental, and can be due to indiscriminate users or applications hogging all the bandwidth. TP-LINK's TL-WR940N supports IP QoS (Quality of Service) function, which offers optimum utilization of bandwidth through the use of bandwidth congestion control. This means that users of small networks will enjoy bandwidth allocation specifically for them, preventing non-critical wireless usage from degrading network performance.
Easy to Use
With the TL-WR720N even novice users can setup their networks. The device comes with a CD featuring an Easy Setup Assistant that leads users through the setup process step-by-step, and even helps with wireless network settings and security configurations.
Specifications
HARDWARE FEATURES | |
---|---|

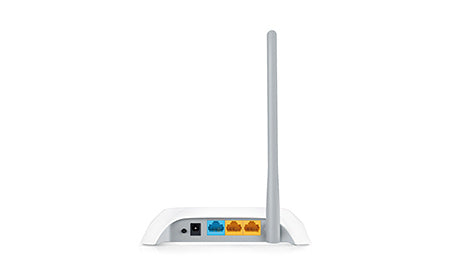

Interface | 2 10/100Mbps LAN Ports 1 10/100Mbps WAN Port |
Button | WPS/Reset |
External Power Supply | 5VDC / 0.6A |
Dimensions (W X D X H) | 6.2 x 4.8 x 1.3 in.(158 x 122 x 32 mm) |
Antenna | 5dBi Fixed Omni Directional |
WIRELESS FEATURES | |
---|---|
Frequency | 2.4-2.4835GHz |
Wireless Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Signal Rate | Up to 150Mbps |
Reception Sensitivity | 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
Transmit Power | CE: <20dBm(2.4GHz) FCC: <30dBm |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security | 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
SOFTWARE FEATURES | |
---|---|
WAN Type | Dynamic IP/Static IP/PPPoE/ PPTP/L2TP/BigPond |
Port Setting | Server, Client, DHCP Client List, Address Reservation |
Quality of Service | WMM, Bandwidth Control |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, Comexe, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security | DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
Management | Access Control Local Management Remote Management |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | TL-WR720N Power Supply Unit Resource CD RJ-45 Ethernet Cable Quick Installation Guide |
System Requirements | Microsoft® Windows® 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
Warranty
18 months local warranty
