Features
Exceptional Wireless Performance at an Affordable Price
TL-WR700N supports the newest 802.11n standard, and provides backward compatibility with older 802.11b/g standards as well. With wireless speed up to 150Mbps, high bandwidth-consuming applications such as video streaming, using VoIP, or online gaming
Compact and portable
TL-WR700N is small enough to put into your pocket and take on the road to share the Internet. When your hotel only offers a wired network connection, just plug the network cable into the TL-WR700N and enter the default password to enjoy the convenience of wireless networking in your hotel room.
Multiple Operating Modes
TL-WR700N supports AP, Router, Bridge, Client, Repeater modes to enable various wireless applications, giving users a more dynamic and comprehensive wireless networking experience. Multiple operating modes also help you to extend wireless range? just plug it in within range of the primary wireless router and in a spot near those areas.

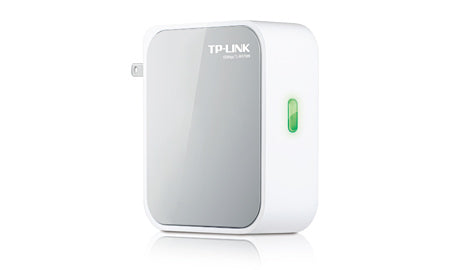

What is the wireless mini pocket router TL-WR700N?
At 150Mbps, the TL-WR700N has the wireless speed and range to power a complex set of networking applications to create a highly efficient mobile office or entertainment network in no time. Small enough to fit in the average pocket and with no cables to plug in, save a WAN cable, the router is uniquely suited to providing robust wireless networking to travelers, students, or anyone else for work or play.
Advanced Security
TL-WR700N provides WPA/WPA2 encryptions, which effectively and efficiently protect the wireless network.
Specifications
HARDWARE FEATURES | |
---|---|
Interfaces | 1 10/100Mbps WAN/LAN Port Reset Button |
Plug Type | US |
Wireless Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Dimensions ( W x D x H ) | 3.2 x 2.8 x 1.1 in. (81 x 71 x 28mm) |
Antenna Type | On-Board |
WIRELESS FEATURES | |
---|---|
Frequency | 2.4-2.4835GHz |
Signal Rate | 11n: Up to 150Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
Reception Sensitivity | 135M:-70dBm@10%PER 65M:-73dBm@10%PER 54M:-76dBm@10%PER 6M:-92dBm@10%PER |
Transmit Power | CE: <20dBm(2.4GHz) FCC: <30dBm |
Wireless Modes | AP Mode, Router Mode ,Client Mode, Repeater Mode, Bridge Mode |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security | 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
SOFTWARE FEATURES | |
---|---|
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
DHCP | Server, Client, DHCP Client List, Address Reservation |
Quality of Service | WMM, Bandwidth Control |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, Comexe, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
Access Control | Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
Management | Access Control Local Management Remote Managemen |
OTHERS | |
---|---|
Certification | FCC, RoHS |

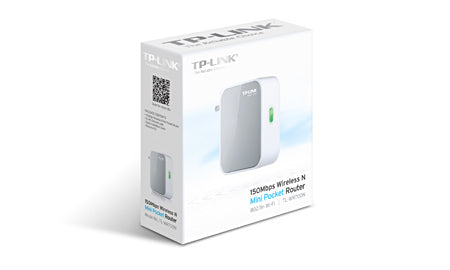

Package Contents | TL-WR700N Resource CD Quick Installation Guide RJ-45 Ethernet Cable |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Warranty
18 months local warranty
Online prices, specifications, description and images generally match actual, but may vary and are subject to change without notice. Vmart cannot be held liable for errors or omissions.
Please verify the specifications at the time of purchase. No claim whatsoever would be accepted in case of specification error/mismatch, once the product is sold.
