Features
Extend Wi-Fi Coverage to Every Room
With wireless speeds of up to 300Mbps, you can effortlessly extend your Wi-Fi network via the existing powerline. In doing so, you can broadcast a wireless signal to every room to share with all your Wi-Fi enabled devices. If necessary, TL-WPA4230P KIT’s Wi-Fi Clone Button can simplify your Wi-Fi configuration and help build a seamless unified home network.
Wi-Fi Clone for Seamless Wireless Roaming
With a Wi-Fi Clone Button, TL-WPA4230P KIT can automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After pressing the button, you can place the power-line adapter anywhere and enjoy seamless networking across you entire home or office. It will save the trouble of entering the new SSID and password when you move from one place to another place, espe-cially when you have a smart phone, a tablet and a laptop at the same time.
Ideal for Bandwidth Intensive Applications
With powerline speeds of up to 500Mbps and high-performance data transmission, TL-WPA4230P KIT can transmit multiple HD video streams to every room, making it a great choice for an easy-to-build multimedia entertainment network.

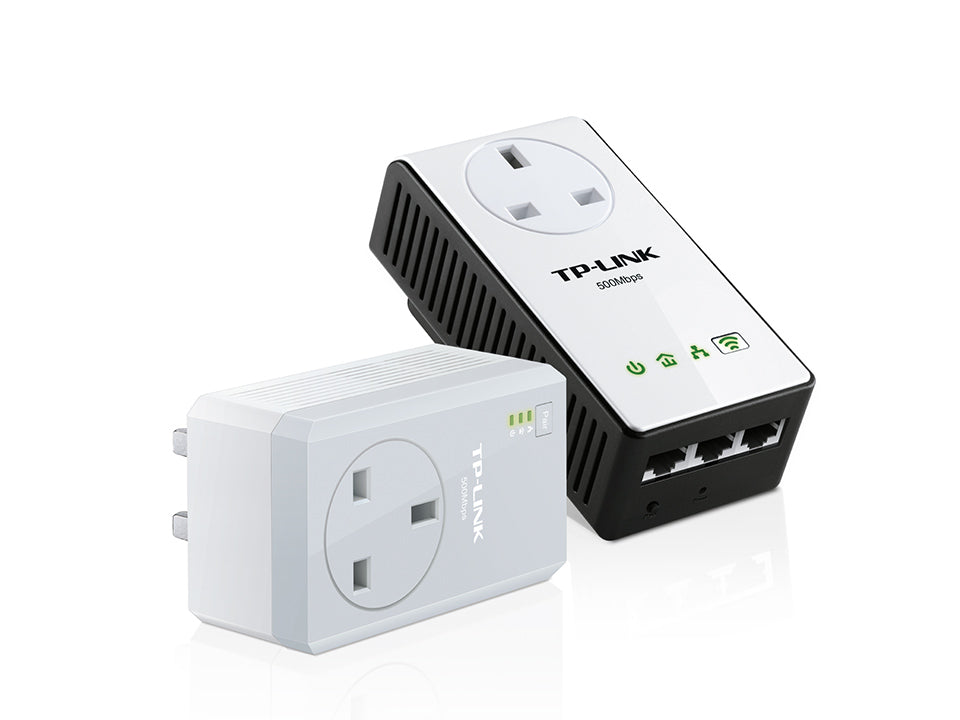

Extra Power Socket for Additional Devices
TL-WPA4230P provides integrated power socket, allowing an additional device or power bar to be connected to the adapter as though it were a normal wall socket. No power outlet goes to waste.

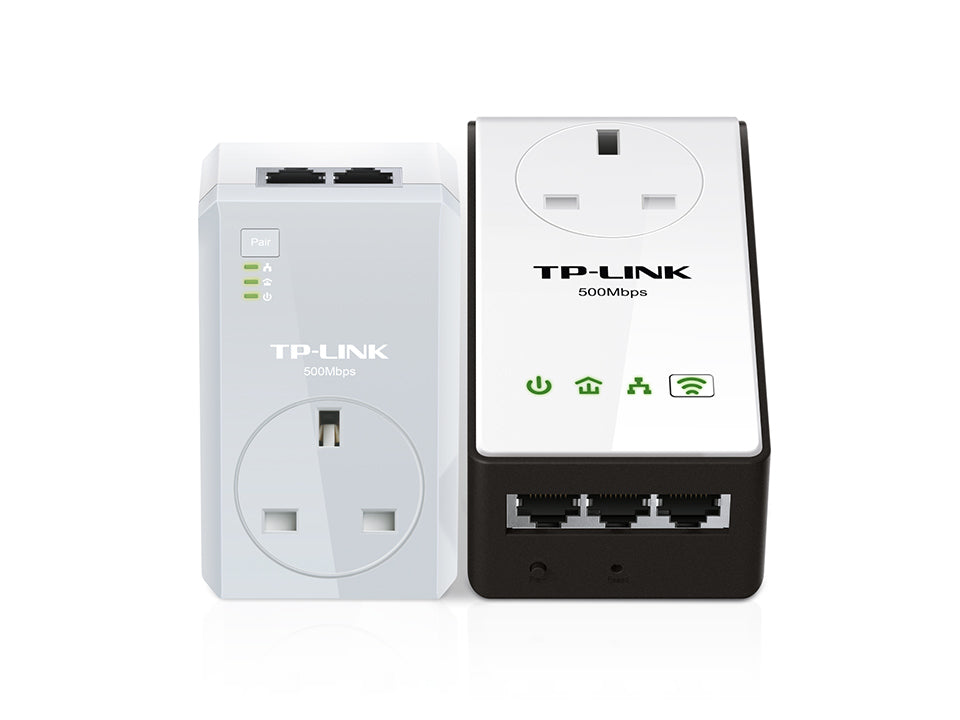

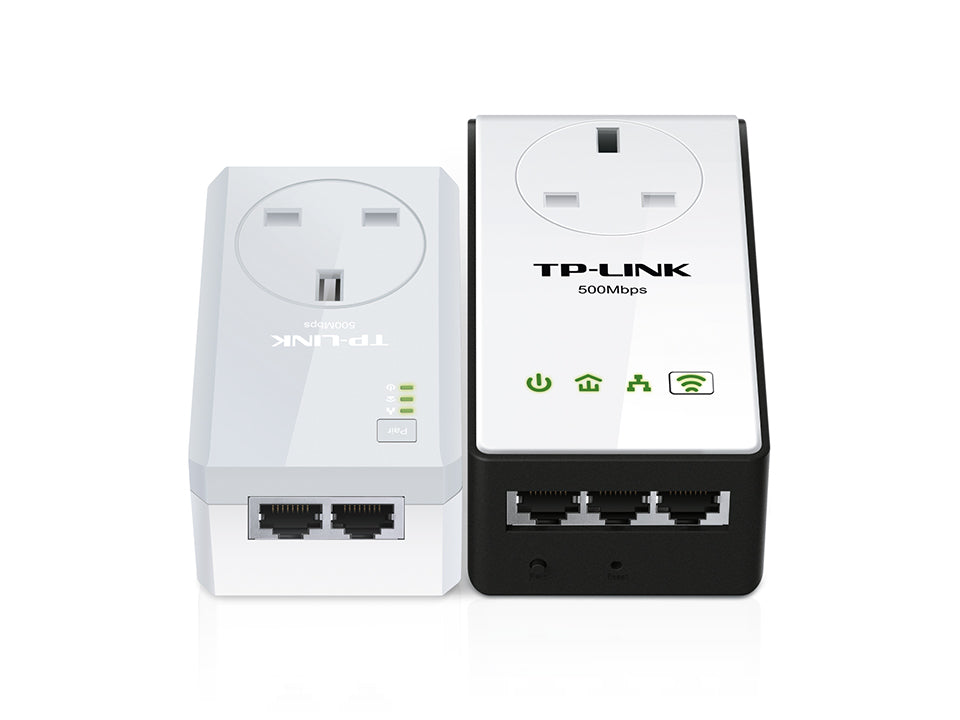

Multiple Ethernet Ports
Equipped with 3 Ethernet ports, TL-WPA4230P allows you to connect several devices such as game con-soles, IPTVs or media receivers, at the same time just by plugging in network cables, avoiding the hassle of adding other networking devices for more access to the Internet.
Specificaitons
HARDWARE FEATURES | |
---|---|
Interfaces | 3*10/100Mbps Ethernet Ports |
Standards and Protocols | HomePlug AV, IEEE1901, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n |
Plug Type | EU, UK, FR |
Button | Pair, Reset, Wi-Fi/Wi-Fi Clone |
LED Indicator | PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone |
Dimensions ( W x D x H ) | 5.0 x 2.5 x 1.7 in. (126 × 64 × 42mm) |
Range | 300 Meters over electrical circuit |
WIRELESS FEATURES | |
---|---|
Frequency | 2.4-2.4835GHz |
Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
Reception Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
Transmit Power | CE:<20dBm(2.4GHz) FCC:<30dBm |
Wireless Functions | Enable/DisableWireless Radio,WMM, Wireless Statistics |
Wireless Security | 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
SOFTWARE FEATURES | |
---|---|
Modulation Technology | OFDM (PLC) |
Encryption | Powerline Security: 128-bit AES Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | Powerline Ethernet Adapter TL-WPA4230P&TL-PA4020P Resource CD Quick Installation Guide 2-meter RJ-45 Ethernet Cable * 2 |
System Requirements | Windows 8/7/Vista/XP/2000, Mac OS X, Linux-based operating system |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Warranty
18 months local warranty
