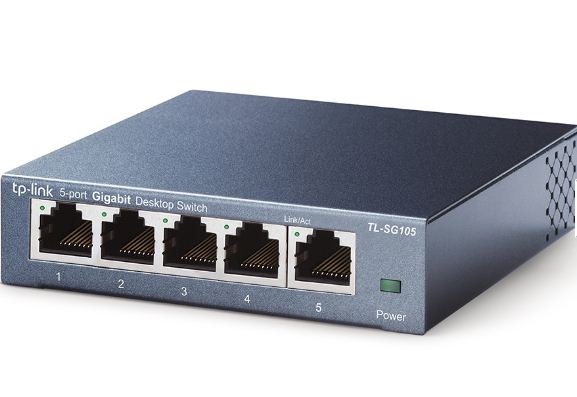

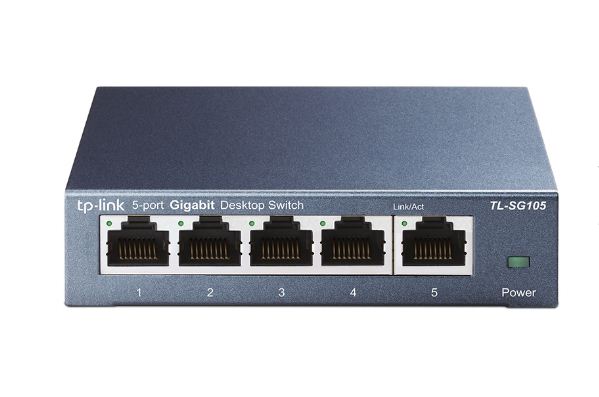

TP-Link TL-SG105 - 5-Port 10/100/1000Mbps Desktop Switch

Features

5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX Green Ethernet technology saves power consumption IEEE 802.3x flow control provides reliable data transfer Steel housing, desktop or wall-mounting design Support 802.1p/DSCP QoS and IGMP Snooping function Plug and play, no configuration

Link your devices, Create Convenient Business The TL-SG105 Desktop Switch provides you an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG105 can always help you deal with your business quickly and easily.

Gigabit Ports For Faster Speeds Increase the speed of your network with the TL-SG105 5-port Gigabit desktop switch. Non-blocking, 5 10/100/1000Mbps ports enables instant transferring of large, bandwidth intensive files without interference.

Go Green with Your Ethernet TP-Link’s latest generation of Unmanaged Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Specifications

HARDWARE FEATURES Standards and Protocols:  IEEE 802.3x Interface 5: 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports Fan Quantity: Fanless External Power Supply: External Power Adapter (Output: 5VDC / 0.6A) LED Indicator: System Power Link/Act indicators per port built into each RJ-45 port Dimensions: ( W x D x H ) 3.9 × 3.9 × 1.0 in. (100 × 98 × 25 mm) Max Power Consumption: 2.3W Max Heat Dissipation: 7.8 BTU/h

PERFORMANCE Packet Forwarding Rate: 7.4Mpps MAC Address Table: 2K Packet Buffer Memory: 1Mb Jumbo Frame: 16KB

SOFTWARE FEATURES Advanced Features: 802.3x Flow Control IGMP Snooping: Transfer Method Store and Forward

OTHERS Certification FCC, RoHS Package Contents:

5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide

Environment:

Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
