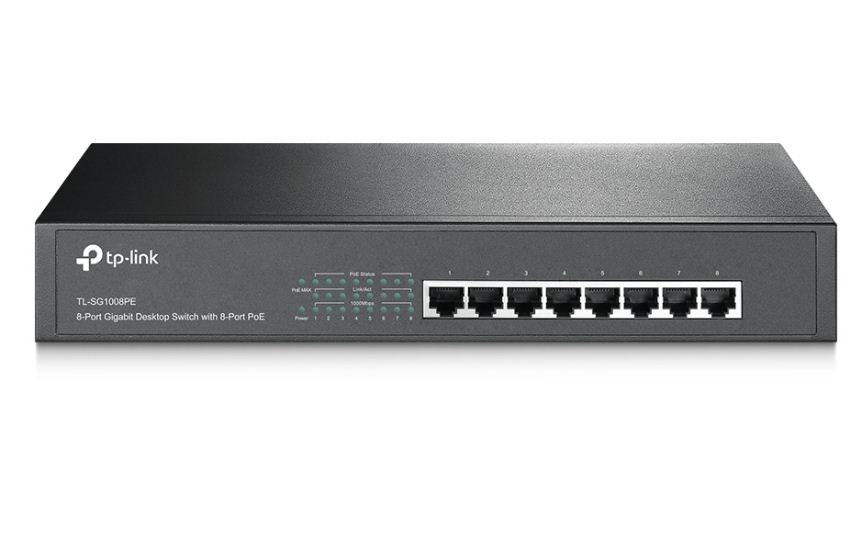

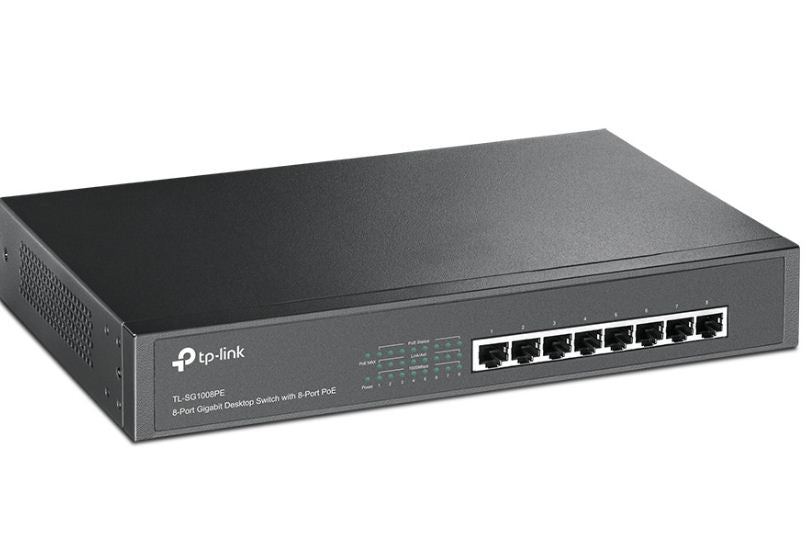

TP-Link TL-SG1008PE 8-Port Gigabit Desktop/Rackmount Switch With 8-Port PoE

Buy TP-Link TL-SG1008PE 8-Port Gigabit Desktop/Rackmount Switch With 8-Port PoE online at Low Price. Buy complete range of Desktop Switch on Vmart.pk, We Offer home delivery all over Pakistan.

• 8 10/100/1000Mbps RJ45 ports
• Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
• Works with IEEE 802.3af/at compliant devices, expanding home and office networks
• nnovative energy-efficient technology reduces power output by up to 75%*
• Plug and play design, no configuration required
• Actual data may vary in different usage environment.

The TL-SG1008PE is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 124W, up to 30W per port, TL-SG1008PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

All 8 ports of TL-SG1008PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

TL-SG1008PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 124W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

*Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port F > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 120W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.

TL-SG1008PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1008PE 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1

100-240VAC, 50/60Hz

802.3at/af compliant

8 Ports

124W

16Gbps

Table 8K

2Mbits

11.6*7.1*1.7 in. (294*180*44 mm)

Mounting Rack Mountable

9.89W(220/50Hz. no PD connected)

144.36W(110/60Hz. with 126W PD connected)

33.74BTU/h(no PD connected)

492.56BTU/h(with 126W PD connected)

Compatible With IEEE 802.3af/at Compliant PDs

Priority Function

Auto-Learning And Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

And-Forward

FCC, CE, RoHS

TL-SG1008PE, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet

9.5 watts (max. no PD connected)

140.1 watts (max. with 124w PD connected)

: 0℃~40℃ (32℉~104℉)

-40℃~70℃ (-40℉~158℉)

10%~90% non-condensing

5%~90% non-condensing
