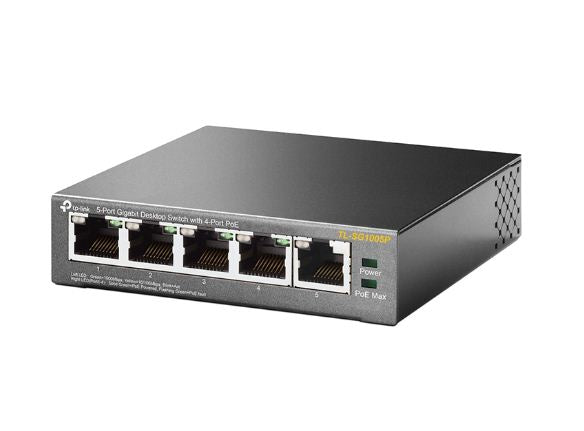

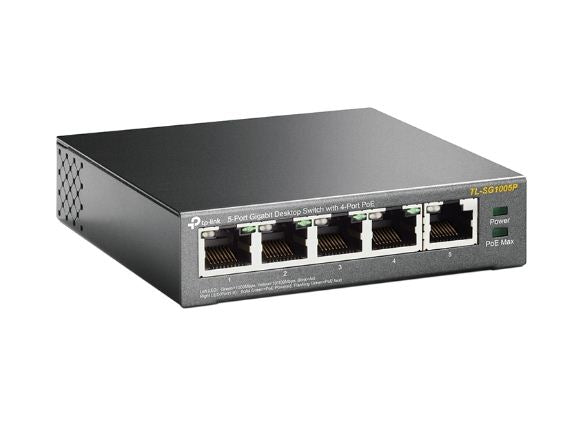

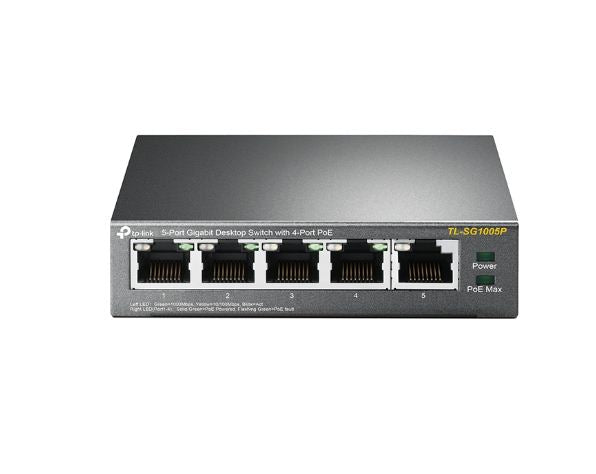

TP-Link TL-SG1005P 5-Ports Gigabit Desktop Switch With 4-Port PoE

Buy TP-Link TL-SG1005P 5-Ports Gigabit Desktop Switch With 4-Port PoE online at Rs. 11990. Buy complete range of Desktop Switches on Vmart.pk, We Offer home delivery all over Pakistan.

• 5 10/100Mbps RJ45 ports
• With four PoE ports, transfers data and power on one single cable
• Working with IEEE 802.3af compliant PDs, expands home and office network
• Supports PoE Power up to 15.4W for each PoE port
• Supports PoE Power up to 56W for all PoE ports
• Requires no configuration and installation

5-Port 10/100Mbps Desktop Switch with 4-Port PoE

Work with IP Cameras

Work with IP Phones

Work with Omada EAPs

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

5 10/100Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fanless

Supply External Power Adapter(Output: 48VDC / 1.25A)

802.3 af compliant

: Port1- Port4

56W

Table 2K

1Gbps

3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

Store-And-Forward

63.51W (max. with 58w PD connected), 1.70W (max. no PD connected)

13.48BTU/h(no PD connected)

219.87BTU/h(with 56W PD connected)

Transmission Method Store-And-Forward

Advanced Functions Compatible With IEEE 802.3af Compliant PDs

Priority Function

Mac Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

FCC, CE, RoHS

TL-SG1005P, Power Adapter, User Guide

0℃~40℃ (32℉~104℉)

-40℃~70℃ (-40℉~158℉)

10%~90%RH non-condensing

5%~90%RH non-condensing
